Pioneer 9" Digital Multimedia Receiver with Android Auto Apple CarPlay and Bluetooth - DMH-WT3800NEX

Authorized Dealer Price Match Guarantee

Price Match Guarantee

Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Price	$1,300.00
Savings	$150.01
Our Price	$1,149.99 CAD

Or as low as $201.80/month over 6 months. Apply Now

Quote Request

Availability
Out of stock online. Call for availability

DMH-WT3800NEX
Best Deal Promise

Literature

Description
Features

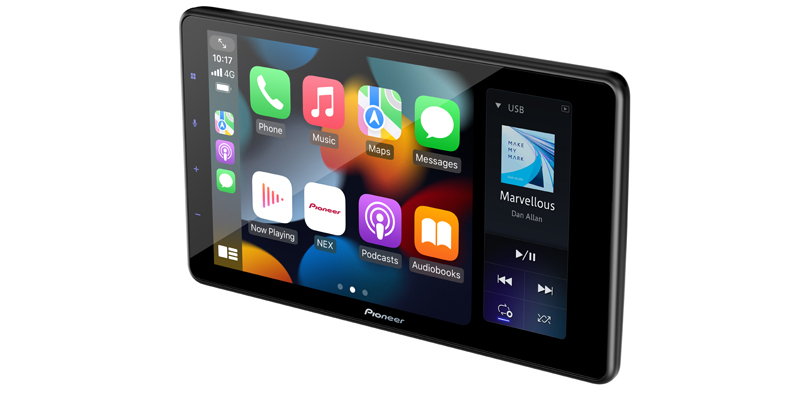

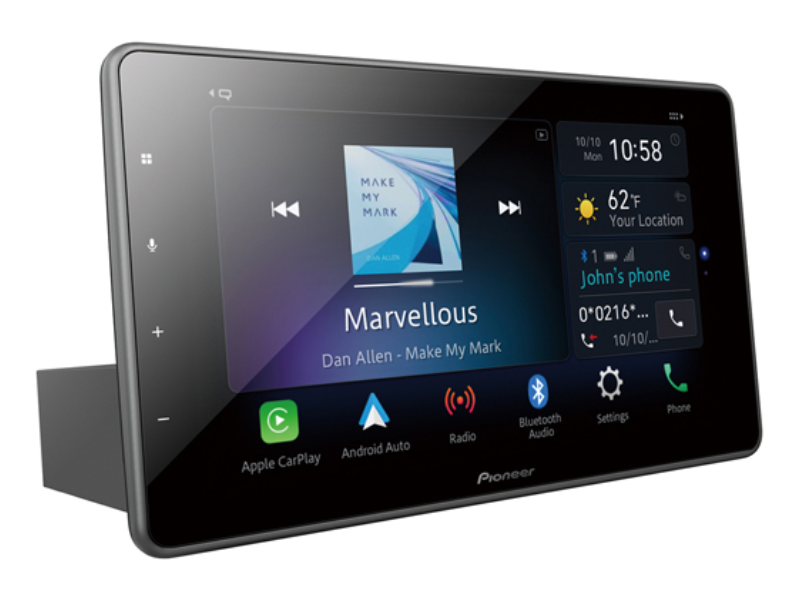

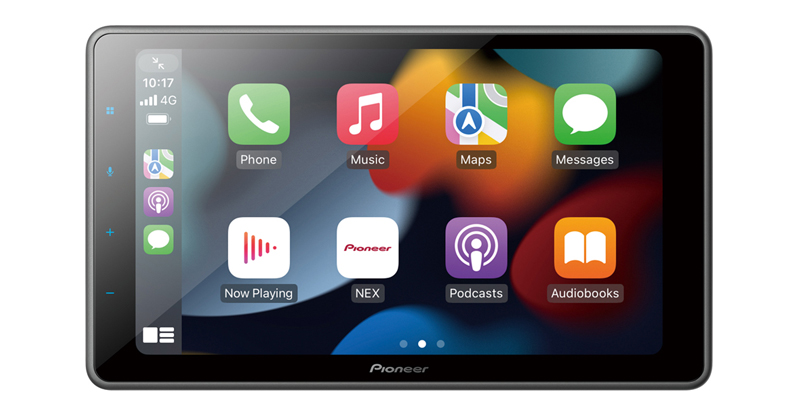

9" Floating Display
1-DIN Chassis
Apple CarPlay (Wireless, Wired)
Android Auto (Wireless, Wired)

What's in the Box

Touchscreen monitor (rear cover pre-installed)
Source unit (10 A fuse)
Wiring harness
Input/output AV wire harness
58” USB-A extension cable
Bluetooth Microphone w/ bracket 10’ cable 2.5 mm connector
GPS Antenna (attached 11.5” cable)
Self-adhesive square
Self-adhesive clips (3)
Monitor bracket
Screen spacer
Front bracket
28 various installation screws
Quick start guide
Warranty information

Bluetooth
Hands-Free	Yes
Microphone Included	Included
Dual Phone Connection	Yes
Hands Free Version	1.6
Built-in Bluetooth	Yes
AVRCP	1.6
Advanced Audio Distribution Profile (A2DP)	Yes
NAVIGATION
External GPS Antenna	Yes
Display
Touch Screen	Capacitive
Screen Size/Aspect Ratio	9"/16:9
Resolution	1024x600

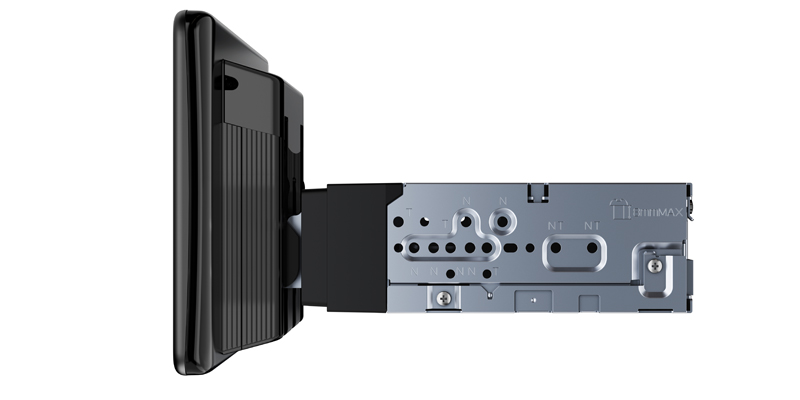

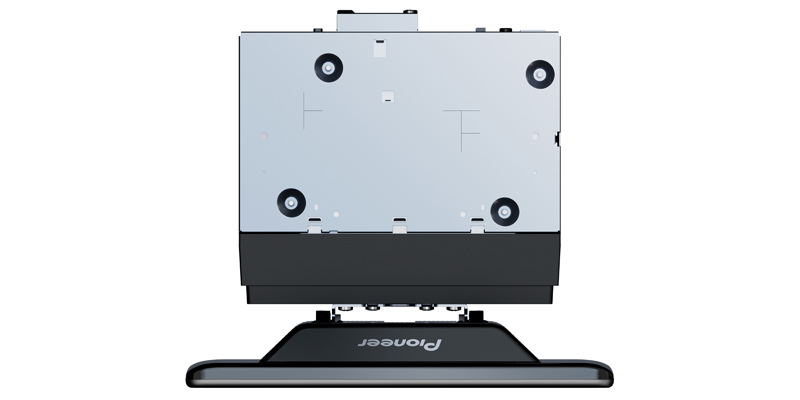

Monitor Mechanism	Adjustable, Floating
Home Screen Customization	Yes
Display Off Mode	Yes
Dimmer	Automatic with vehicle illumination, Timer Controlled, Manual
Device (Non-DIN/Modular Unit)	1-DIN, Floating
Performance
RMS Power Output (CTA-2006)	14 W RMS x 4-ch 4 ohm
Display
Back Light	LED
Brightness Control	Yes
Color Customization	5 display colors, 112 key colors
Performance
RCA Pre-out	2V
RCA Preamp Outputs	6-Channel
Max Power Output	50 W x 4-ch 4 ohm
Load Impedance Allowance	4 Ohm (4 Ohm to 8 Ohm Allowable)
Continuous Power Output	22 W x 4-Channel
Standards
CTA-2006	Yes
General
Steering Wheel Control Ready (Adapter Sold Separately)	Yes
Remote Control	Optional
GPS Antenna	Yes
Music Browser	USB
Multi-Language Display	English, French, Spanish Portuguese, Chinese (Simplified)
Detachable Face Security	Fixed

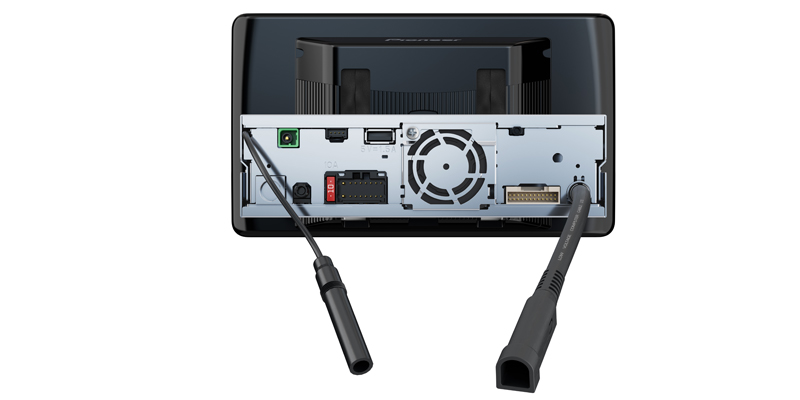

INPUTS
Input 3	A/V or 2nd Camera
Input 2	AUX (Minijack)
Input 1	Backup Camera Dedicated
Expandability
USB Direct Control for iPhone	5s and newer
RCA Video Output	Yes
Parking Assist Lines	Yes
OTA Update Compatible	Yes
OEM Integration	iDatalink® Maestro™ - RR, iDatalink® Maestro™ - RR2, Metra Axxess
Audio
Time Alignment	Manual
Subwoofer Control	Yes
Spectrum Analyzer	Yes
Speaker Output	4-ch
Loudness	High/Mid/Low/Off
Listening Position Selector	Yes
Fade	Yes
Easy EQ (EEQ) Preset Equalizer	Yes
Dynamic Bass Enhancer	Off/Low/High
Digital Signal Processor	Built In
DA Converter	24 Bit
Customizable Graphic Equalizer	13 Band
Crossover Standard Mode	HPF/LPF
Crossover Network Mode	HPF/Band Pass/LPF
Built-in Amplifier	MOSFET 50 W x 4
Balance	Yes
Bass Boost	Yes
Advanced Sound Retriever	Mode-1/Mode-2/Off
DIGITAL MEDIA PLAYBACK
Image Display via USB	BMP, JPEG, PNG
Audio Video Playback via USB	.avi, .mpg/mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts
Audio Playback via USB	MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res), DSD Audio Playback (Hi-Res)
INTEGRATION
WiFi	Tethering, WiFi Hotspot
Weblink	2
Voice Control	Yes
Spotify	With Apple CarPlay or Android Auto
Siri Eyes Free (VR) (Internet Required)	iPhone Only
Pioneer App Compatibility	CarAVAssist Android, CarAVAssist iPhone
Pandora	With Apple CarPlay or Android Auto
Music Playback (MTP)	Yes
Mobile Operating System	Android / Apple iOS
Apple CarPlay	Wireless Connection or Wired USB Connection
Bluetooth
Phone Registration	5-phone
Secure Simple Pairing (SSP)	Yes
Serial Port Profile (SPP)	Yes
Tuner
Best Station Memory	Yes
Hybrid Radio	Yes
Local Seek tuning	Yes
Presets	18 FM, 6 AM
RDS	Yes
SiriusXM-Ready (Tuner Sold Separately)	Yes
INTEGRATION
Android Auto	Wireless Connection or Wired USB Connection
