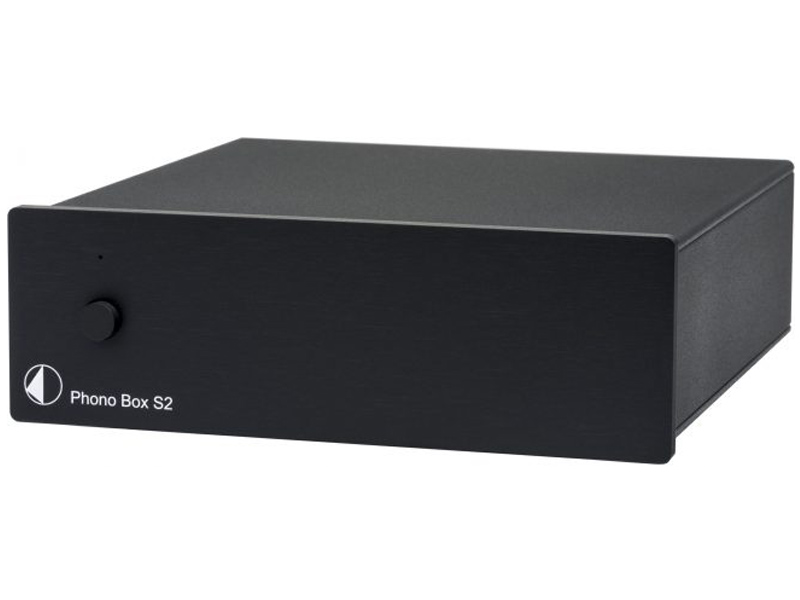

Project-Audio Phono Box S2 MM/MC Phono Preamplifier - PJ71658564
MM/MC phono preamplifier
Setting new standards for entry level phono stages!
Phono Box S was one of our favourite products, it offered unrivalled sonics and versitality at a very affordable price. When we started creating Phono Box S2, its successor, it had to have exactly that but improve on sound even further. Phono Box S2 features incredible micro-details, dynamics and precision with a soundstage usually found in much more expensive products. The new S2 style housing is made of an aluminium/metal sandwich construction and not only offers highest aesthetics but also out-standingly protects it from unwanted electromagnetic interferences and vibrations. This guarantees for an undisturbed listening experience without worries. The switches on the bottom of the unit allow fine tuning the sound to your preferences and adjusting Phono Box S2 to any available cartridge!
Phono Box S was considered the best option of all entry-level phono stages by many acclaimed hifi magazines, Phono Box S2 is sure to follow its predecessor‘s footsteps and will set new standards at this price point!
Features
- Audiophile Performance
- Dual mono configuration
- Audiophile-grade amplification modules
- Audiophile-grade polypropylene WIMA capacitors
- Precise RIAA equalisation
- Switchable Subsonic filter –12dB @ 20Hz
- Switchable input impedance/capacitance
- 4 adjustable gain levels
- Outstanding sound quality
- Available in silver or black
Specifications | |
---|---|
Weight | 570 g net |
Face plate colour | silver or black |
Dimensions ( W x H x D ) | 103 x 36 x 115 mm |
Outboard power supply | 18 Volt DC/ 500 mA |
Power consumption | 18 V / 85 mA |
THD+N | 0.01% MM/ 0.05% MC |
RIAA accuracy | < 0,4 dB / 20 Hz - 20 kHz |
In/Out sockets | 1 pair RCA connectors |
Signal-to-noise ratio | 85 dB |
Subsonic switch | -12 dB @ 20 Hz |
Gain switch | 40 dB/ 43 dB/ 60 dB/ 63 dB |
Input capacitance | 100 pF/ 200 pF/ 320 pF/ 420 pF |
Input impedance | 10 Ohm/ 100 Ohm/1 kOhm / 47 kOhm |
