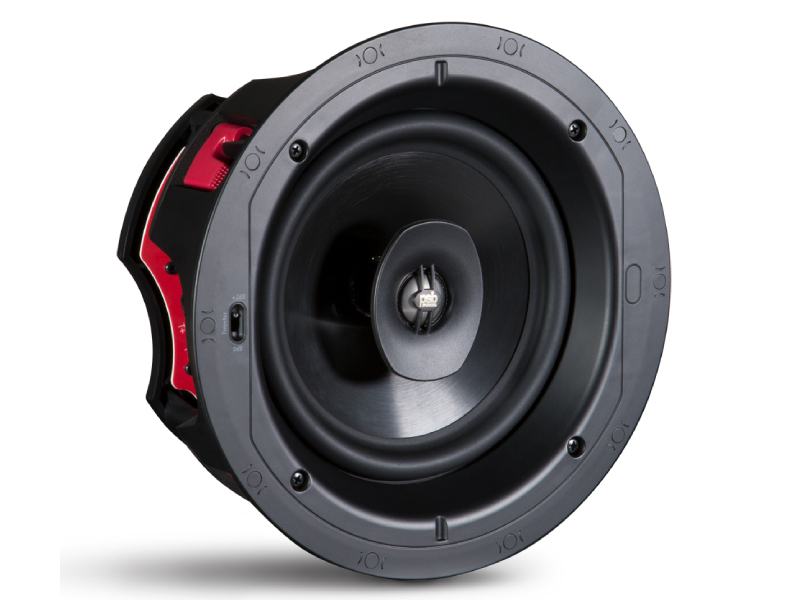

PSB Speakers 8 Inch In-Ceiling Speaker - CS810
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Call for availability

Literature

Select Performance Two-Way In-Ceiling Speaker

Featuring PSB’s trademark carbon-filled polypropylene cone woofer, this two-way, in-ceiling, flush-mount speaker delivers a warm and balanced hifi sound. Thanks to the high temperature voice coil, it also offers plenty of power handling. The CS810 perfectly combines advanced PSB technology with smart aesthetics to bring you an in-ceiling speaker that is both musical and nearly invisible, perfect for home theater or whole home audio.

Superb audio quality meets versatility

The CS810’s proprietary 1″ (25mm) aluminum dome tweeter is concentrically mounted and features a carefully engineered waveguide. This allows the tweeter to reproduce lower frequencies, blending perfectly with the woofer in the crossover region. In addition, a ball-joint pivot mount lets you aim the tweeter toward the listening position for enhanced imaging. A dual-position switch lets you adjust the tweeter level as well.

Ideal for music or home theatre

Backed by more than 45 years of cutting-edge research, this speaker provides unwavering sound quality that’s ideal for an in-ceiling music system or your home theatre setup.

Adaptable and stylish

The CS810 provides a nearly invisible speaker for your listening room without compromising sound quality or floor space. The simple and foolproof mounting system uses heavy-duty doglegs to ensure that installation is easy and efficient, and the provided magnetic frameless grille offers sleek concealment, allowing the CS810 to blend seamlessly into the ceiling. This discreet speaker design delivers the ultimate in performance and style.

  • 8″ (203mm) proprietary Imagine carbon-filled polypropylene cone woofer with steel basket
  • 1″ (25mm) aluminium dome tweeter
  • Frequency response: 48-20,000Hz (±3dB)
  • Aimable tweeter angle adjustment (ball-joint)
  • Precision crossover network for smooth wideband response
  • Dual-position switch for tweeter level
  • High-strength doglegs for easy installation and removal
  • Includes both round and square magnetic frameless grilles
Frequency Response
On Axis @ 0° ±3dB48-20,000Hz
Sensitivity
Anechoic Chamber85dB
Listening Room87dB
Impedance
Nominal6 Ohms
Minimum4 Ohms
Input Power
Recommended 10 – 100 Watts
Acoustic Design
Tweeter1″ (25mm) Titanium Dome with Ferrofluid
Woofer8″ (203mm) Black Polypropylene Cone, Cast Basket, Foam Surround
Crossover3,100Hz, LR4
Design TypeOpen Back
Dimensions / Weight / Finish
Size (W x H x D)Cutout Dimensions – 9 3/4″ * (245mm), Mounting Depth – 5″ * (127mm), Round Grille Diameter – 10 5/8″ * (270mm), Square Grille Size – 10 3/4″ * (272mm)
WeightNet – 4.95lb (2.25kg)/each, Shipping – 8.2lb (3.7kg)/each
Specifications
Finish White
