Our CSIW SUB10 is an exciting, new construction subwoofer that leverages PSB’s decades of experience for the Professional CI installer. The CSIW SUB10 was created to isolate the sealed cabinet from the drywall, as well as minimize the protrusion of the grille from the surface of the drywall. This eliminates unwanted resonances for cleaner, tighter bass.

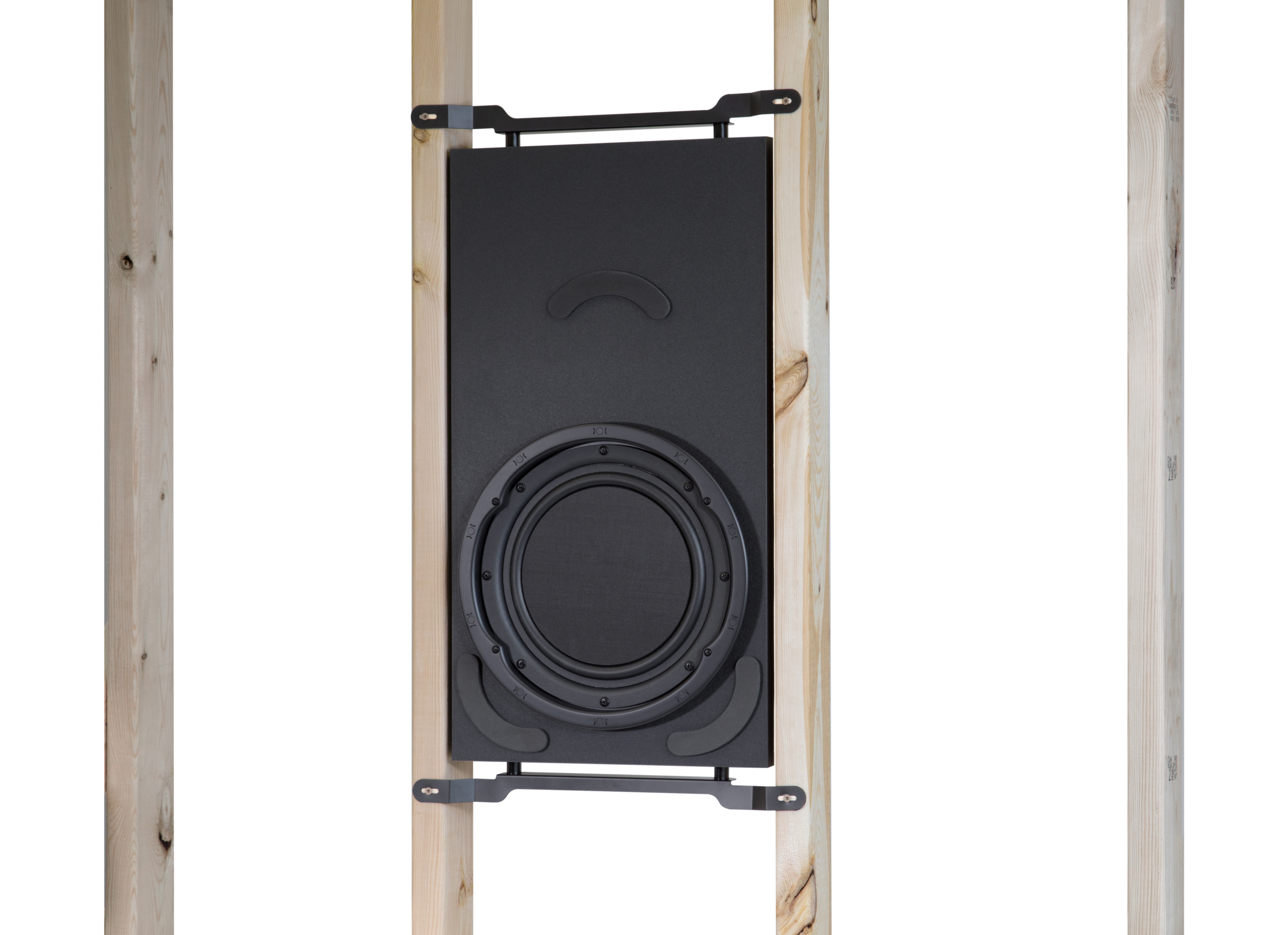

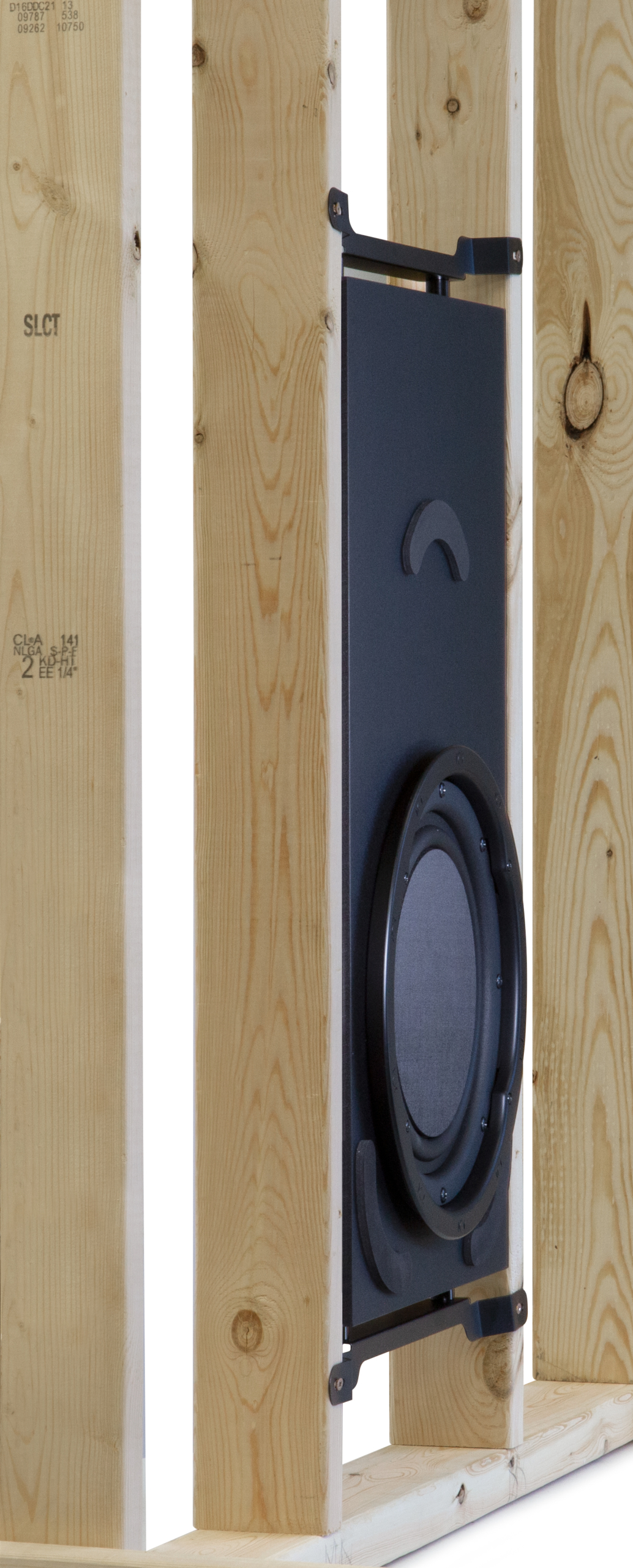

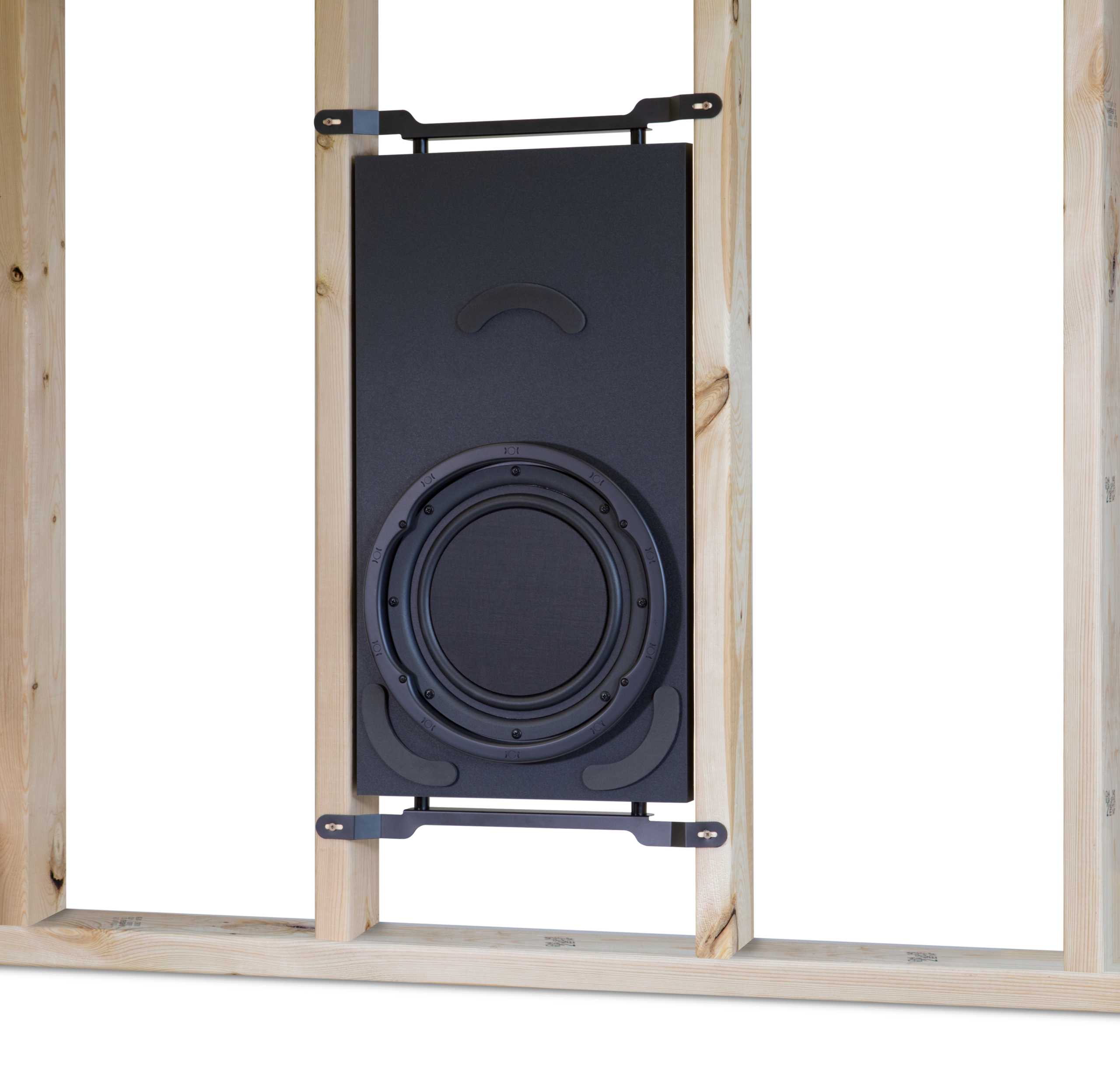

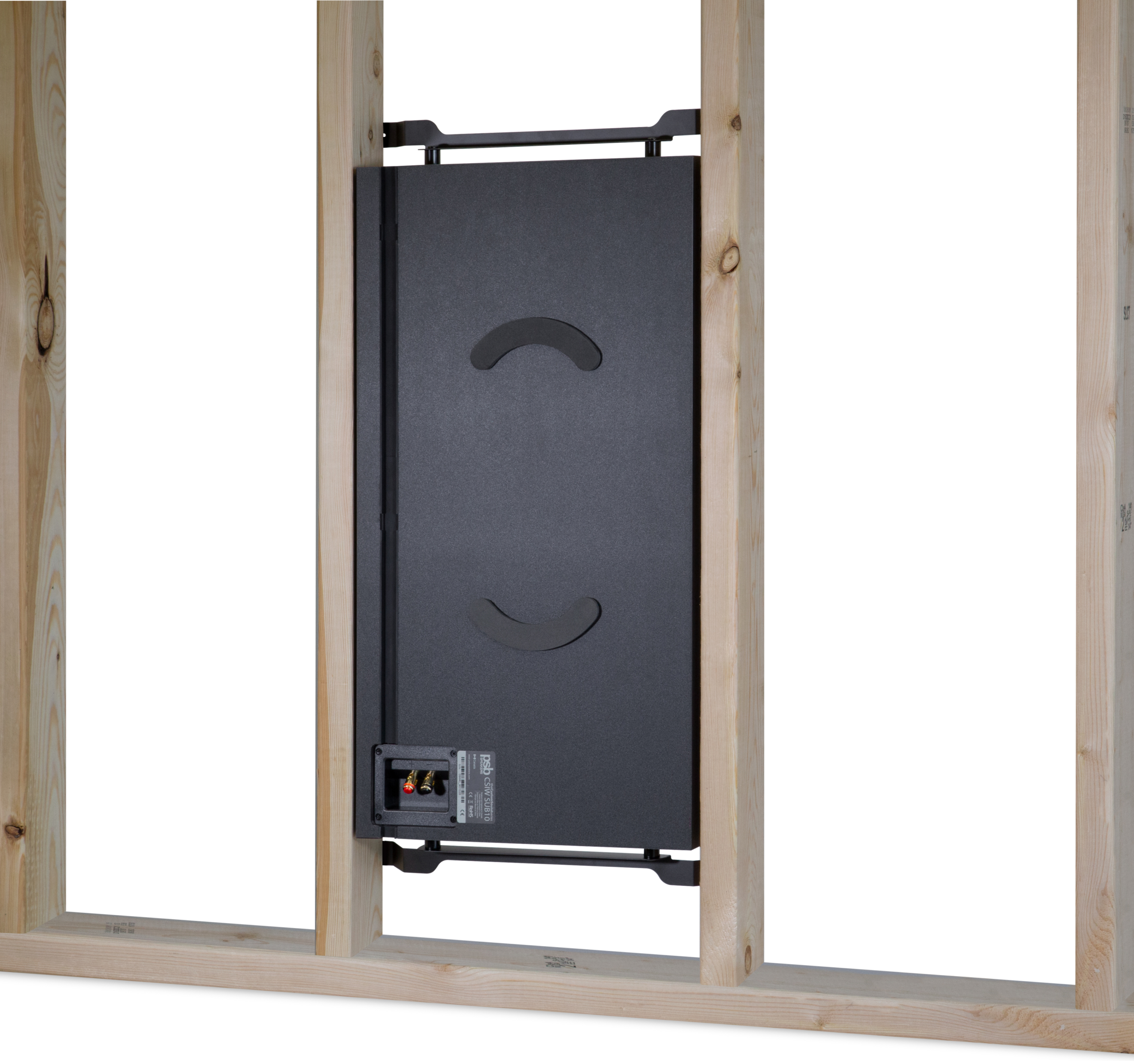

The unique design then couples the subwoofer cabinet directly to the stud beams and allows the grille to accommodate various wall thicknesses. A high excursion shallow driver delivers bass response that is both precise and plentiful, precisely what you would expect from PSB.
The CSIW SUB10 is one of many high performance speaker solutions that enables a system designer or installer the ability to simply pick the right tool for the job. To make implementation even easier, PSB has developed a complementary subwoofer amplifier (CS 500W) to power up to two subwoofers simultaneously.
All PSB subwoofer models are voiced to deliver tight and detailed bass response and capable of reproducing the most demanding home theatre and music tracks.
Key Features of the PSB CSIW SUB10
- A unique in-wall sub design to cover a wide range of applications
- Well suited for either high performance music or home theater systems
- Optional dedicated amplifier CS 500W that can easily drive any two of new subwoofer models simultaneously
- Design and final voicing engineered by Paul Barton
|On Axis @ 0°±3dB||25-150Hz|
|Woofer (Nominal)||10″ (254mm), Glass fiber / PMI foam sandwich cone, Die Cast Basket, Rubber Surround, Balanced Drive motor structure|
|Grille||Magnetic, Small Perforation Metal|
|Size (W x H x D)|
|Net W||14″ (356mm)|
|Net H||26” (660mm)|
|Net D||3 7/8” (98mm)|
|Weight – Net – Shipping||TBD|
