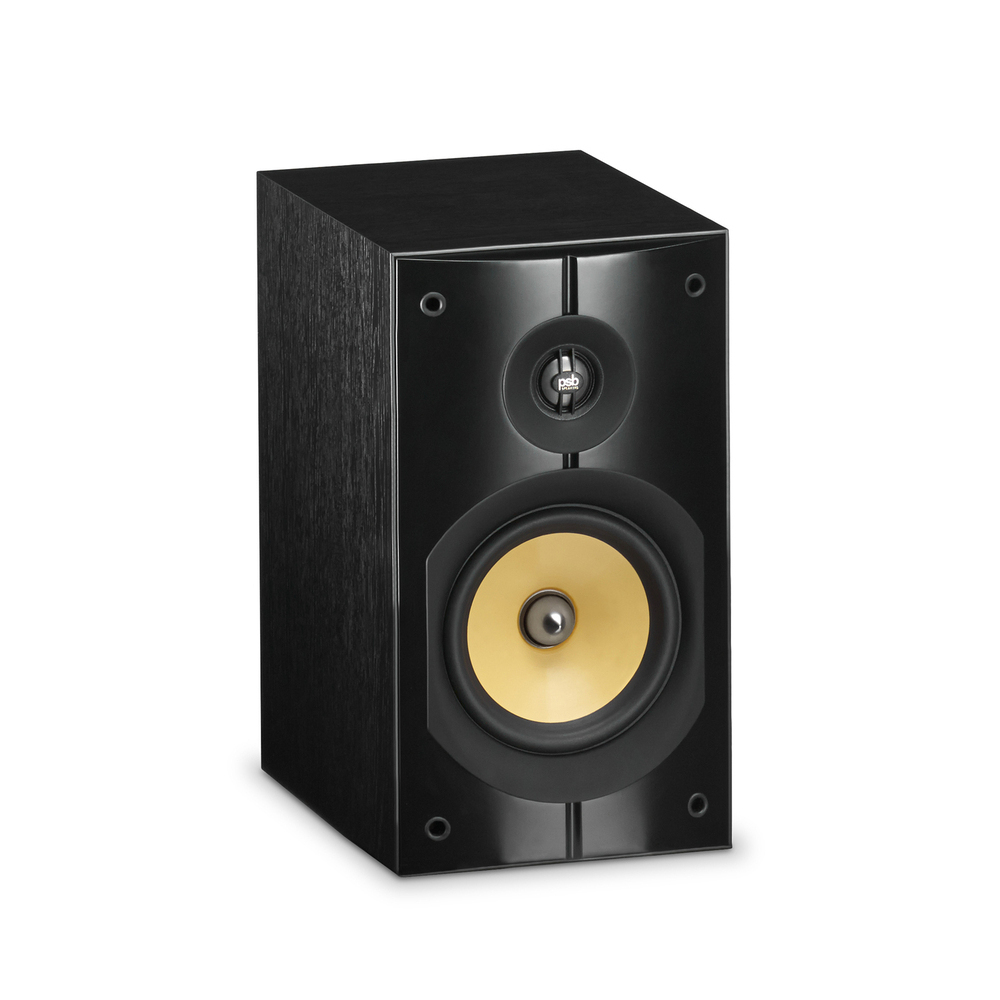

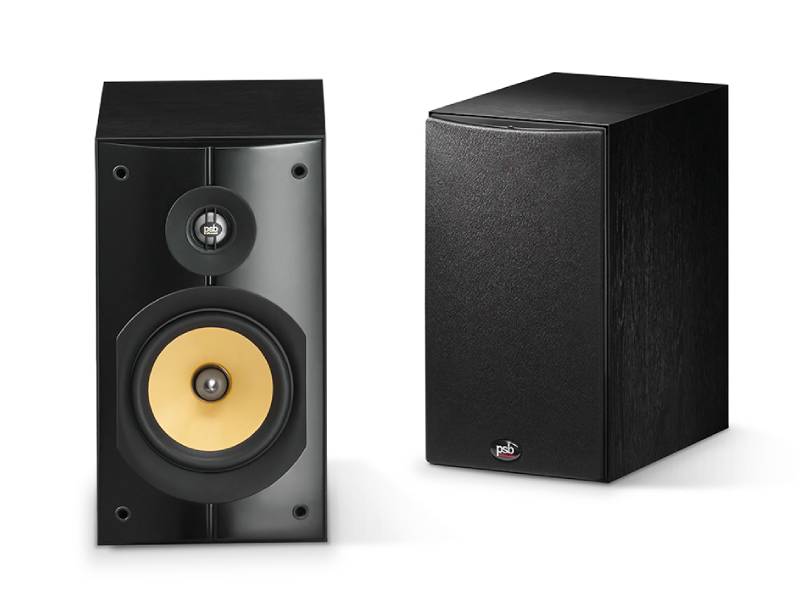

Imagine XB
Attractive and compact
Ideal for smaller rooms or in combination with a powered subwoofer for a compact full-range system, Imagine XB bookshelf speakers are proof that good things do come in small packages. Used as the foundation of a great starter system or in combination with a more powerful receiver and subwoofer, the Imagine XBs will bring you excellent hifi sound, and an affordable price.
- 150 watts input power
- 1” (25mm) titanium dome tweeter with ferrofluid and neodymium magnet structure
- 5¼” (133mm) Clay/ceramic reinforced injection molded polypropylene cone woofers
- Bass reflex (ported) design
- Gold-plated five-way binding posts
- Black ash vinyl finish
A new level of performance
The Imagine XBs bring a new level of performance to their price range while borrowing many design innovations from our multiple award-winning Imagine models. This two-way speaker system features a 5¼” (133mm) woofer and a 1″ (25mm) titanium dome tweeter, and the critically tuned cabinet employs a rear-facing port for high sensitivity and extended bass response.
The perfect compact addition to your setup
Perfectly matched timbre with the X1T and X2T towers make the XB a great choice for surround channels in home theatre system setups. While the Imagine XB is small in stature, it is more than capable of filling a room with beautifully detailed acoustics. Voices and instrumentals are delivered with clarity and evenness that seem closer to live music.
Designed with your home in mind
The Imagine XB is compact and affordable with a simplified yet attractive cabinet design. Like the other models in the Imagine X line, these bookshelf speakers will fit into any room in your home with ease. The minimalist black cabinet design allows it to blend well into the home and your system setup, and the yellow cone of its woofer emphasizes its front baffle while providing some added flair.
Frequency Response | |
---|---|
On Axis @ 0° ±3dB | 55-23,000Hz |
On Axis @ 0° ±1 1/2dB | 70-20,000Hz |
Off Axis @ 30° ±1 1/2dB | 70-10,000Hz |
LF Cutoff -10dB | 50Hz |
Sensitivity | |
Anechoic Chamber | 87dB |
Listening Room | 89dB |
Impedance | |
Nominal | 8 Ohms |
Minimum | 4 Ohms |
Input Power | |
Recommended | 20 – 150 Watts |
Program | 150 Watts |
Acoustic Design | |
Tweeter (Nominal) | 1” (25mm) Titanium Dome with Ferrofluid , Neodymium Magnet |
Woofer (Nominal) | 5 1/4” (133mm) Injection Moulded Clay/Ceramic reinforced , Polypropylene Cone , Rubber Surround / Dual Magnet |
Crossover | 1,800Hz, LR4 |
Internal Volume | 0.32 cu ft (9.1L) |
Design Type | Bass Reflex Rear Port |
Dimensions / Weights / Finish | |
Size (W x H x D) | 6 3/4 x 12 x 10 3/4” * 170 x 302 x 271mm |
Weight | Net – 12.3lb (5.6kg)/each , Shipping – 27.7lb (12.6kg)/pair |
Finish | Black Ash |
