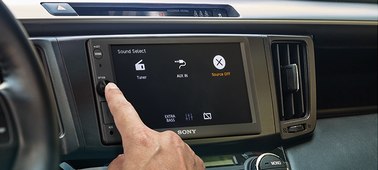

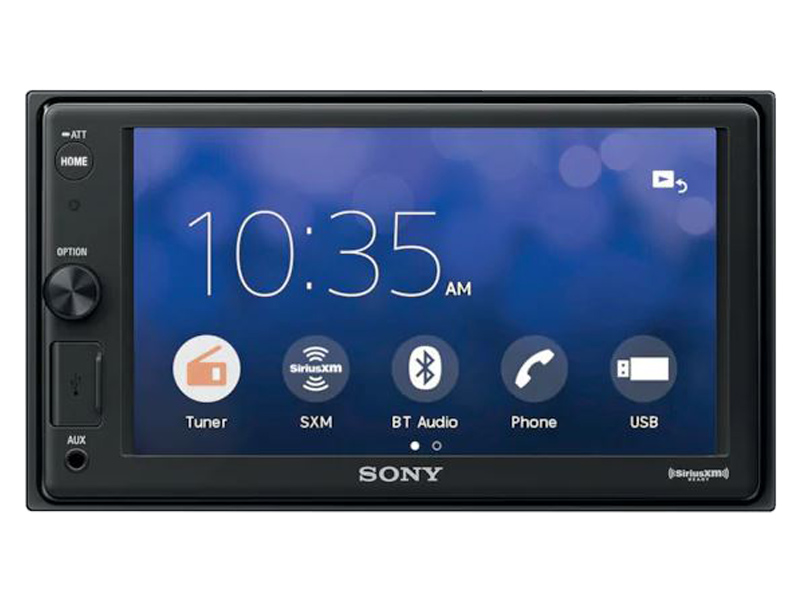

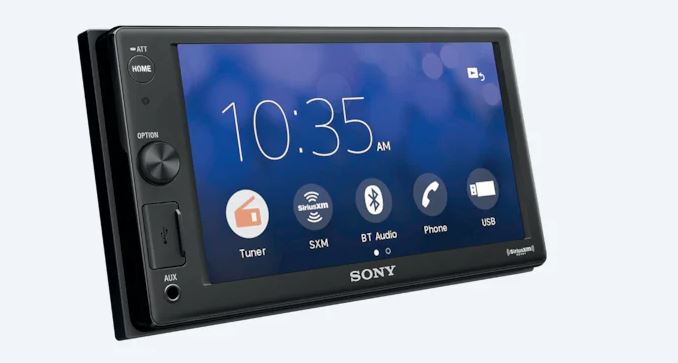

Control at your fingertips
The large, clear touchscreen gives you intuitive control over music playback and making phone calls.

Turn or push to control
The ergonomic rotary dial makes operation distraction-free. Turn it to control volume, or push the integrated button to launch sound control menus.

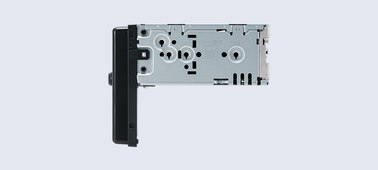

Easy installation with a compact rear chassis
Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation and leaves plenty of room for cabling and other accessories in the space behind the display.

Quick wake-up
With activation two-and-a-half times faster than previous models, you're ready to go right after turning on the ignition.

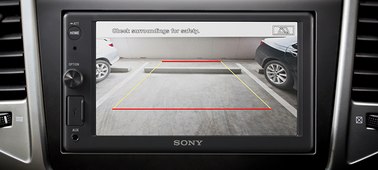

Rear view camera ready
Have a rear camera installed? View its feed through the screen, along with customizable guidelines that help you back in safely.

Connect to your smartphone
Enjoy hands-free calling with touchscreen phonebook and wireless audio streaming.

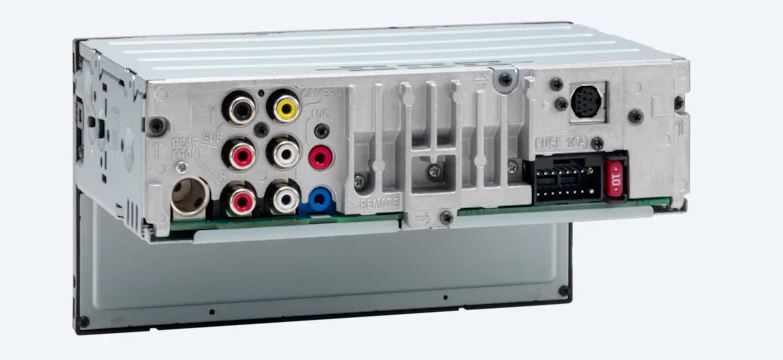

Three pre-outs let you expand your sound system
Looking to build your own in-car sound system? Three pre-outs give you countless possibilities for expanding your setup. Plug in your desired amplifiers and sub-woofers to customize your sound.

Dynamic Stage Organizer creates virtual speakers on your dashboard
Sound waves are directional, especially in the higher frequencies — so if your speakers are positioned low in your doors, high frequency sounds are often lost, reducing clarity and instrument separation. Dynamic Stage Organizer uses digital signal processing to lift the sound, improving stereo positioning so music sounds like it's coming from right in front of you.

FLAC-compatible
FLAC compatibility lets you play lossless audio files, so you enjoy every detail of the music.

4 x 55 W amplification for clear, powerful sound
The Dynamic Reality Amp 2 gives you 4 x 55 W of power, so you can play music as loudly or softly as you like. The amp has 47% less internal resistance than conventional units, for increased output and clear, natural sound at any volume.

Sirius XM Radio ready
Connect your Sirius XM Radio satellite tuner (not supplied) to enjoy commercial-free music, sport, news and entertainment.
Size & Weight | |
---|---|
Dimensions (W x H x D) | 178x100x141 mm |
Weight | 0.9kg |
General Features | |
Output Power | 55W |
Pre Out | 3Pre 2 V |
Sub Out | Yes |
Zone x Zone | No |
Aux-In | Yes |
Rear View Camera in | Yes |
USB | Yes (Front x 1) |
Navigation | No |
Firmware upgradability | Yes |
Video out | No |
Time Alignment | No |
DSO (Dynamic Stage Organizer) | Yes |
Equalizer | 10-Band Graphic Equalizer |
EXTRA BASS | Yes (Off/1/2) |
Album artwork Indication | No |
Connectivity | |
Bluetooth | Yes |
NFC | No |
Tuner Features | |
Preset | FM18 / AM12 |
Auto Memory | BTM |
RDS / EON | Yes (RBDS) |
Bluetooth Profile | |
HFP 1.5 | Yes (1.6) |
A2DP | Yes (1.3) |
OPP | No |
SPP | No |
AVRCP | Yes (1.3) |
PBAP | Yes (1.1) |
Bluetooth Feature | |
Speed Dial | Yes (6 memories) |
Recent Calls (# of) | Yes |
Last Dialed Call | Yes (select from the dialled call history) |
Phonebook (Built in) | No |
Phonebook Access via PBAP | Yes |
Alphabetical Phonebook Sorting | Yes |
Auto Answer | No |
Ring Volume Level Control | Yes |
Call Volume Level Control | Yes |
Voice Dial Activation | No |
External Microphone | Supplied |
Phone Battery Level Reminder | Yes |
Signal Strength Indication | Yes |
Bluetooth Audio Feature | |
Audio Codec (Bluetooth Audio) | SBC / AAC |
Pause (Bluetooth Audio) | Yes |
CUE / REV | Yes |
TRACK +/- | Yes |
Group (Folder) +/- | Yes |
Audio Level Adjustment | -6 dB to +6 dB |
Repeat Control (Audio Device side) | Yes |
Shuffle Control (Audio Device side) | Yes |
Meta Data Indication | Yes |
Panel Design | |
Panel Surface Finish Color | Black |
Key Illumination | Yes (White) |
Panel Detachability | No |
Monitor(AVC) | |
LCD Type | TFT Active Matrix |
Screen Aspect | 16:9 |
Screen Diagonal (inch / mm) | 6.2 inch |
Screen Size (W x H mm) | 137.52 * 77.232 (mm) |
Resolution (DOT) | 800 x 480 |
Dimmer | Yes |
Contrast Ratio | 600 |
Brightness | 450 cd/m2 |
Display Panel | |
KEY ILLUMINATION | Yes (White) |
Visualizer | No |
Dimmer Adjust | Yes |
User Interface | |
Touch Panel | Yes/Resistive (Not Multi Touch Compatible) |
Gesture Command | Yes |
Remote Commander | RM-X170 |
Parking Control | Yes |
Aspect Ratio Select | Yes |
Rear View Camera-In Marker Setting | Yes |
USB Mass Storage Device Control Feature | |
USB Device Control (Repeat) | TRACK/FOLDER/DRIVE |
USB Device Control (Shuffle) | OFF/FOLDER/DEVICE |
USB Device Control (Pause) | Yes |
USB Device Control (Resume Play) | Yes |
USB Device Control (Audio Codec) | PCM/MP3/WMA/AAC/FLAC |
USB device control (audio playable file extension) | wav. /.mp3/.wma/.m4a/.flac |
USB Device Control (Video Codec) | MPEG4-SP/AVC (H.264 Baseline)/WMV/FLV/MKV/XviD |
USB device control (video playable file extension) | .mp4/.wmv/.mkv |
Multi-Language | |
Menu | English/Spanish/French/Germany/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic |
Caution | English/Spanish/French/Germany/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic |
ID3 Tag | English/Spanish/French/Germany/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic |
