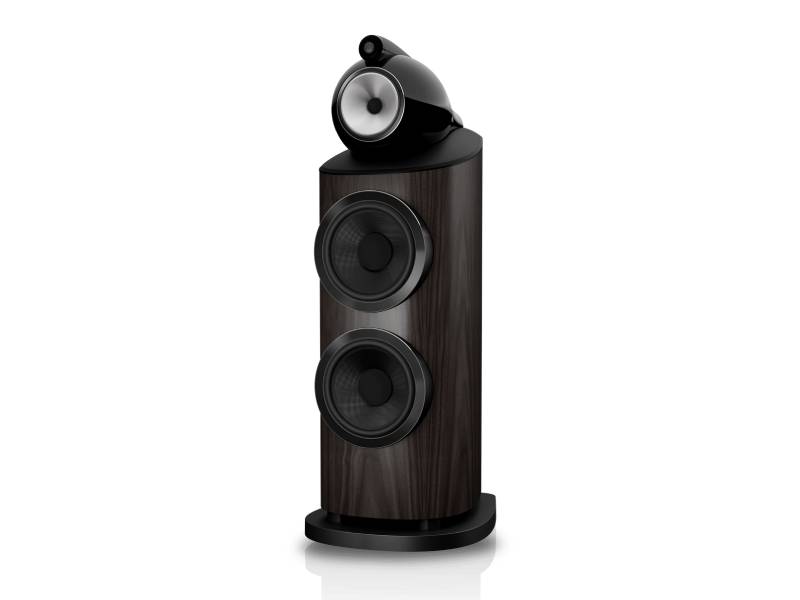

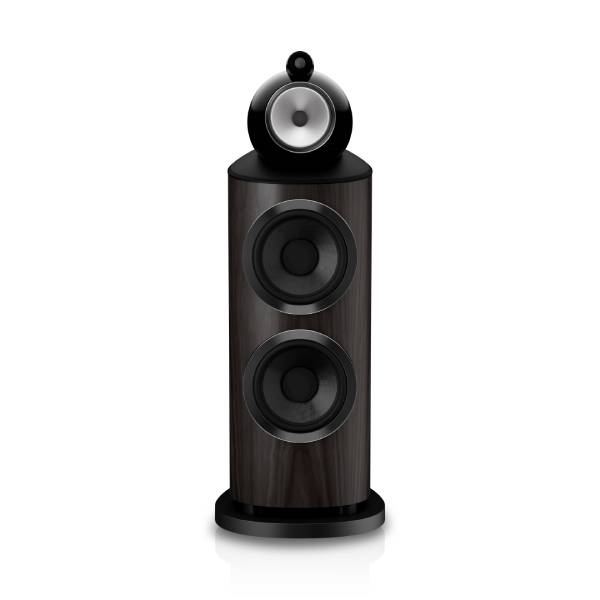

Bowers & Wilkins Reference Tower Loudspeaker - 801 D5 (DW)
Authorized Dealer
Price Match Guarantee
The 801 D5 is an icon refined, the pinnacle of our performance. Engineered for recording studios and discerning listeners alike, it uses our most advanced technologies to deliver reference-quality sound.
From its Diamond dome tweeter and optimised drive units to Space Frame Bracing and an upgraded plinth, its purposeful mix of evolution and innovation is housed in an elegantly crafted and beautifully finished cabinet, shaped by the science of sound. Available in Stealth Black, Warm White, Light Walnut, or Dark Walnut, with matching Leather by Connolly trim, it’s an icon of both performance and design. Born of our 60-year obsession with creating the perfect loudspeaker, 801 D5 delivers our most realistic and accurate listening experience yet.
Others replay music, ours make music
Musicians record with it because they trust it. Engineers mix with it because it tells the truth. Listeners keep it for life because nothing else comes close. For generations, the 800 Series has been the loudspeaker of choice in the world’s most revered recording studios, helping create some of the greatest music and scores ever heard.
Ultimate drive unit technology
Pairing our most advanced and innovative drive unit technology, the 801 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the ContinuumTM cone delivers voices and instruments with lifelike detail.
Optimised for pure performance

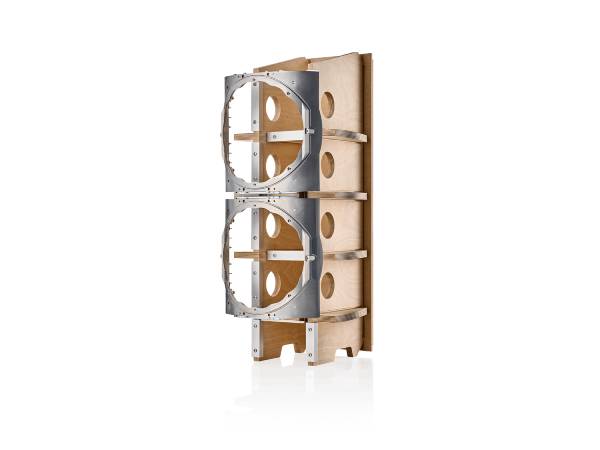

Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.
Crafted to be better by design

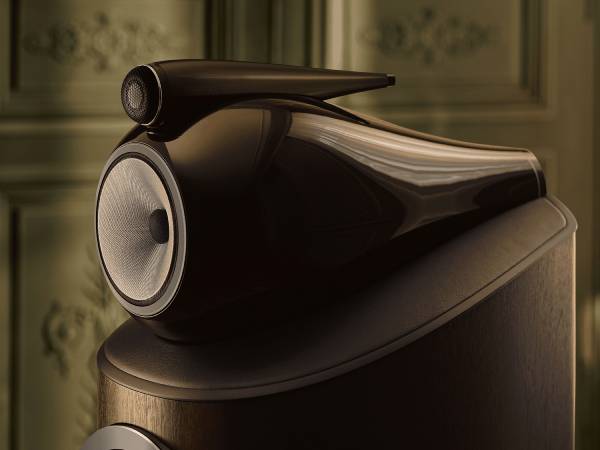

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top and Turbine Head, musical performance is always as precise as possible.
| Size & Weight | |
|---|---|
| Dimensions | Height: 1221mm (48.1 in) including tweeter and plinth Width: 372mm (14.6 in) cabinet only, 447mm (17.6in) including plinth Depth: 556mm (21.9in) including grille and terminals, 597mm (23.5in) including plinth |
| Net weight | 106.4kg (234.6lbs) |
| TECHNICAL DETAILS | |
| Technical features | Diamond dome tweeter Solid body Tweeter-on-Top Continuum™ cone FST midrange Anti-Resonance plug Biomimetic Suspension Turbine Head Matrix™ Aerofoil™ base cones Flowport™ |
| Description | 3-way vented-box system |
| Drive units | 1x ø25mm (1in) Diamond dome high-frequency 1x ø150mm (6in) Continuum cone FST midrange 2x ø250mm (10in) Aerofoil™ bass |
| Frequency range | -6dB 13Hz to 35kHz |
| Frequency response | 15Hz to 28kHz (+/-3dB) |
| Sensitivity | 90dB |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 30Hz – 20kHz <0.3% 100Hz – 8kHz |
| Nominal impedance | 8Ω (minimum 3.0Ω) |
| Recommended amplifier power | 50W – 1000W into 8Ω on unclipped programme |
| Max recommended cable impedance | 0.1Ω |
| FINISHES | |
| Cabinet finishes | Stealth Black Warm White Dark Walnut Light Walnut |
| Grille finishes | Black (Stealth Black and Dark Walnut) Grey (Warm White and Light Walnut) |
