PowerBass 12 Inch Dual 2-Ohm Subwoofer - 3XL1220D

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping *
Our Price $799.99 CAD

Or as low as $140.38/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature

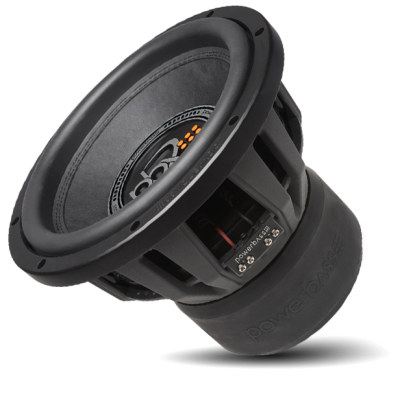

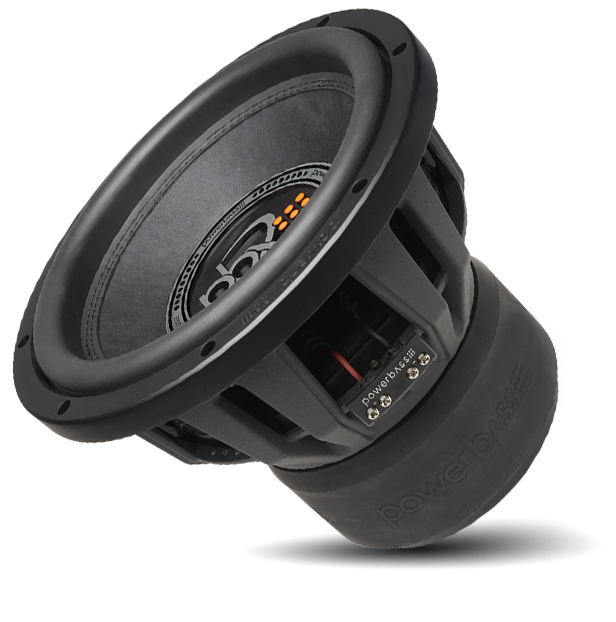

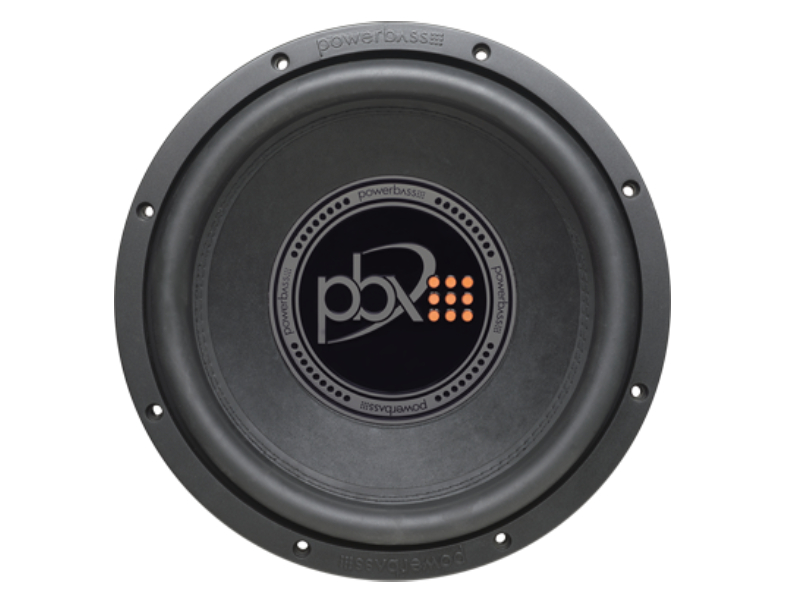

PowerBass 3XL-1220D 12" Subwoofer

  • New PBX logo dust cap
  • 12" Dual 2-Ohm Subwoofer
  • 1000 watt RMS/2000 Watts Max
  • DDC Pressed Paper Cone
  • High Roll Nitrile Butadine Rubber (NBR) Surrond
  • 3" Vented HD BASV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Non Resonance DDC Coated Cast Aluminum Basket
  • XTRA XTRA XTRA Large Triple Stacked Motor Structure
  • Square Spring Loaded Nickel Plated Push Terminals
  • Optimally Designed for Ported Enclosures

3XL-1220D 12" 3XL HIGH OUTPUT SUBWOOFER

Making our best even better is what our engineers accomplished for the newly redesigned 3XL subwoofer series. Combining a new bold look with the innovation that the 3XL series is known for, PowerBass created our most accomplished High Output Subwoofer to date.

The 3XL series have been designed to withstand the extreme heat that the new generation Class “D" amplifiers create. Class “D" amplifiers heat up the woofers voice coil two to three times hotter and faster than a conventional class A/B amplifier. This calls for Xtreme measures and special parts to classify these as a true “Class D Subwoofer". But hey, this is PowerBass. We have it under control.

First, we use industrial assembly glues that are made in the USA that handle this excessive heat that would normally tear a conventional subwoofer apart. Then there is perimeter venting to allow air movement over the voice coil built into our custom cut, cast aluminum basket. The basket works as a strong foundation for our heavy duty non-pressed raw pulp paper cone and redesigned inverted PBX dustcap. The roughness of the cone breaks up standing long waves for an even louder output resulting in greater SPL.

The 3XL 12" Subwoofers all feature 3" HD BASV voice coil formers high temperature voice coil winding to help dissipate heat. To allow full movement of the cone, we utilize an ultra high roll NBR Nitrile Butadiene Rubber surround that increases the cone area for higher output along with linear cone stability throughout the subwoofers 3.5" of peak to peak excursion.

To make sure high voltages from the amplifier reach the subwoofers, we designed our new square spring loaded nickel plated push terminals and incorporated FEA optimized Xtra Xtra Xtra large triple stacked magnets to handle the high power these subwoofers are designed for.

3XL Subwoofers are available in 12" and 15" sizes in either dual 1-OHM or dual 2-OHM versions to maximize your amplifiers power.

Specifications
Nominal Impedance: Dual 2-ohm
BL: 18.99
Voice Coil Size: 3 in
Material: Pressed and Treated Paper Cone
Magnet Size: 228.46 oz
Sensitivity (1W / 1M): 88 dB
Motor Structure: 228.46 oz
Cutout Diameter: 11.06 in (282mm)
Mounting Depth: 9 in
Xmax: 19 mm
Spl: 84.32 dB
No: 0.163%
Qts: 0.599
Qes: 0.716
Qms: 5.533
Mms: 292.92 g
Cms: 70 uM/N
Vas: 27.96 Ltr
SD: 530.9 sqCM
Fs: 35.1 Hz
Test Impedance: 4-ohms
VC Impedance: 2-ohm +2-ohm
Size: 12 in
Sensitivity: 88 dB
Frequency Response: 25 Hz - 450 Hz
Voice Coil Size: 3 in
Power Handling (RMS/Peak): 1000 / 2000 watts
