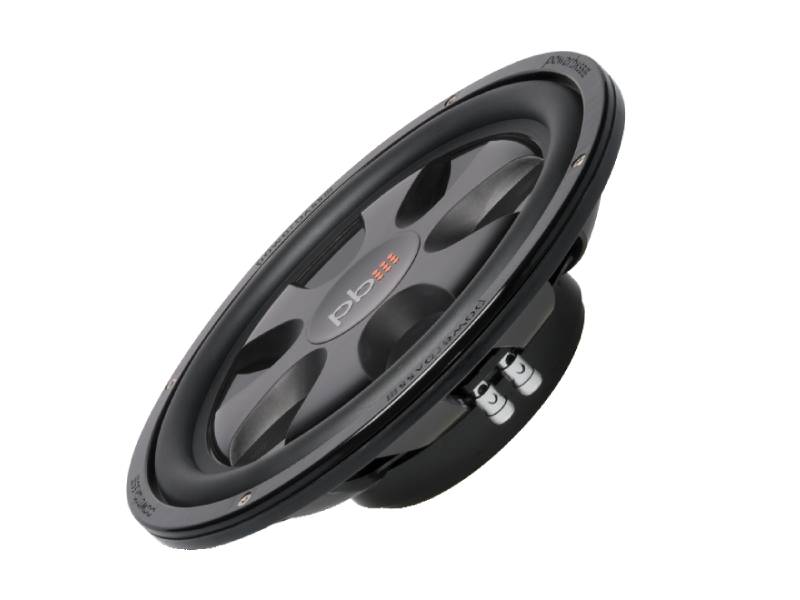

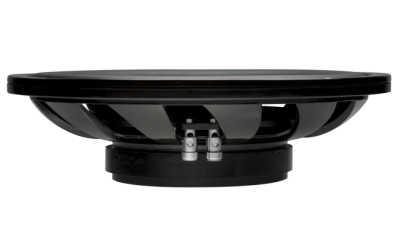

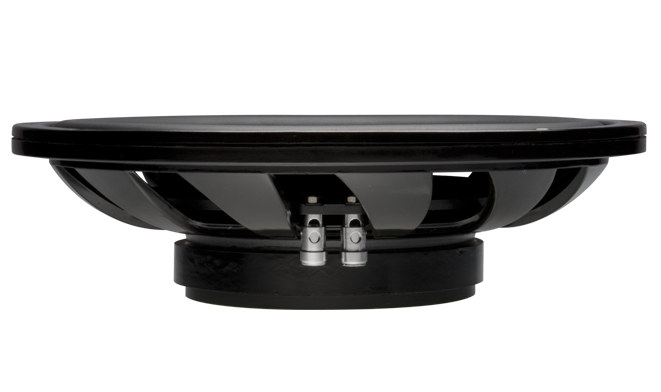

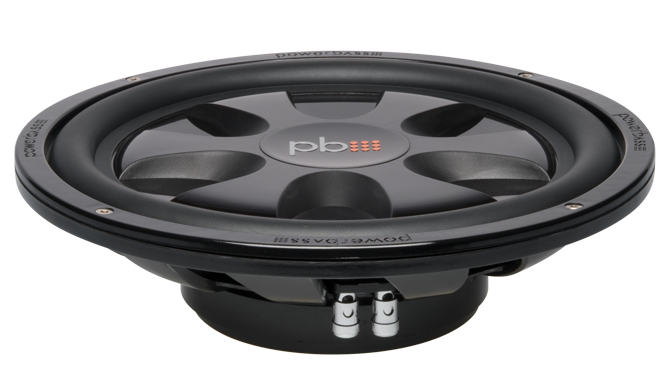

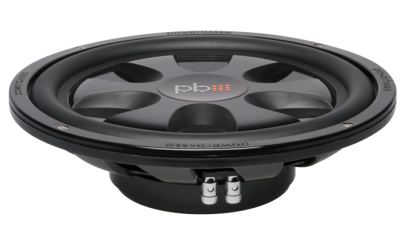

PowerBass Thin Mount 12 Inch Dual 4-Ohm Subwoofer - S12TD
- Thin Mount 12" Dual 4-Ohm Subwoofer
- 300 watt RMS/600 Watts Max
- Single Piece Custom Injected Molded Cone
- Large Roll Rubber Surround
- 2" Vented KSV Voice Coil Former
- Perimeter Aero Voice Coil Venting
- Poly-carbonate/Glass Fiber Composite Turbine Basket
- Super Shallow 3.25" Mounting Depth
- Chrome Push Terminals
- Optimally Designed for Small Sealed Enclosures
S-12TD 12" SHALLOW MOUNT SUBWOOFER
Our new Thin Woofers are only 3.25" deep but don't let its lean size fool you, these woofers are big on bass. We gave our engineers the difficult task of building a thin woofer that was up to the PowerBass reputation of great performance at an exceptional value.
Starting with our proprietary poly-carbonate/glass fiber composite frame, we built a basket that is stronger then steel and lighter then cast aluminum. Our unique one piece cone is another break through in woofer technology, more durable and stiffer then paper, this injected molded cone is able to withstand the abuse that comes from delivering deep bass in a small enclosure.
By adding a tough wide roll rubber surround and 2-inch vented voice coil, we were able to develop a woofer that has the ability to play loud in small places. The PowerBass Thin Woofer makes true bass a reality.
Specifications | |
---|---|
Nominal Impedance: | Dual 4-ohm |
BL: | 15.12 |
Inputs: | Dual Coil |
Subwoofer Frequency Range: | 29 Hz - 350 Hz |
Voice Coil Size: | 2 in |
Material: | Injection molded Polypropylene |
Magnet Size: | 140 oz |
Sensitivity (1W / 1M): | 91 dB |
Motor Structure: | 140 oz |
Cutout Diameter: | 10 15/16" (278.0mm) |
Mounting Depth: | 3.25 in |
Xmax: | 6.8 mm |
Spl: | 91 dB |
No: | 1.163% |
Qts: | 0.942 |
Qes: | 1.194 |
Qms: | 4.464 |
Mms: | 183.4 g |
Cms: | 104.1 uM/N |
Vas: | 41.66 Ltr |
SD: | 530.9 sqCM |
Fs: | 36.43 Hz |
Test Impedance: | 6.5-ohm |
VC Impedance: | 4-ohm + 4-ohm |
Size: | 12 in |
Sensitivity: | 91 dB |
Frequency Response: | 29 Hz - 350 Hz |
Voice Coil Size: | 2 in |
Power Handling (RMS/Peak): | 300 / 600 watts |
