PowerBass 10 Inch Dual 4-Ohm Subwoofer - XL1044D

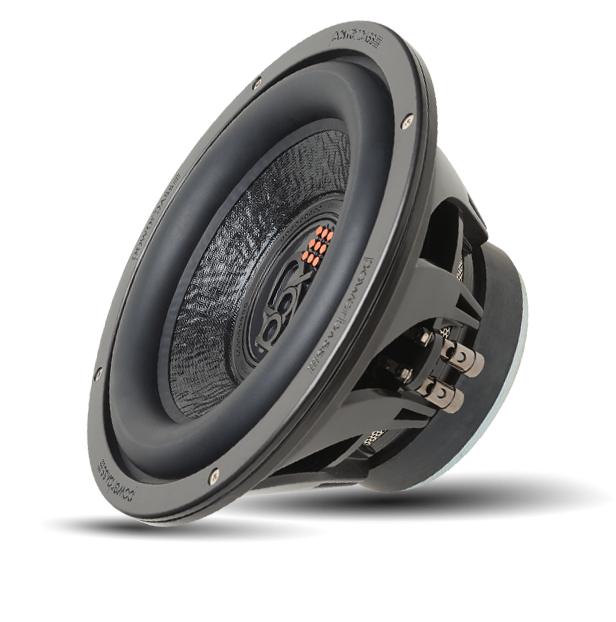

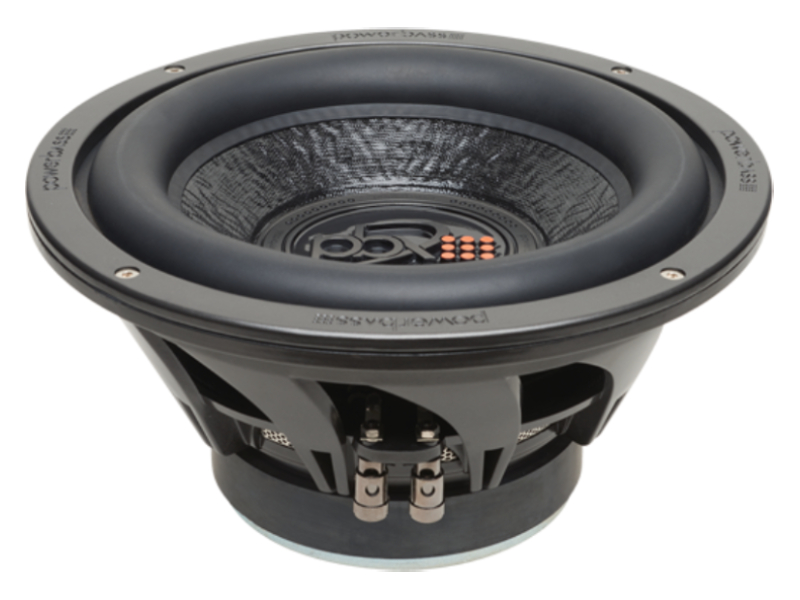

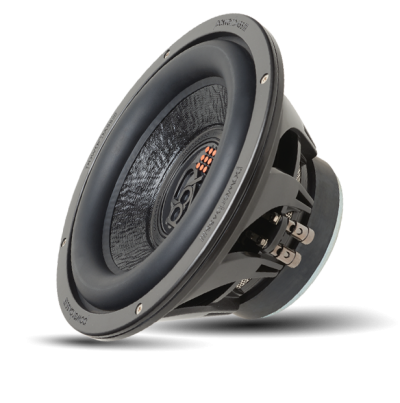

PowerBass XL-1044D 10" Subwoofer
- NEW Large Roll Santoprene® Surround
- 10" Dual 4-Ohm Subwoofer
- 350 watt RMS/700 Watts Max
- Proprietary Non-pressed Paper DDC Coated Cone
- 2.0" Vented BASV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Proprietary Non Resonance Polycarbonate/Glass Fiber Basket
- Chrome Push Terminals
- Optimally Designed for Both Small Sealed or Ported Enclosures
XL-1044D 10" SUBWOOFER WITH EXTENDED LOW FREQUENCY RESPONSE
Our newly designed XL Series Subwoofers, feature the same great look and performance you are accustomed to but are now optimized for extended low frequency response giving you even more bottom end sound and increasing the overall sound quality aspect of your bass tones.
Boasting a custom turbine style frame constructed of polycarbonate/glass fiber, this unique basket supports dual stack magnets and a extended dome backplate.
We utilize a combination of perimeter and pole venting to keep air circulating over the voice coil so everything stays cool.
A non-pressed paper cone was selected for its natural smooth bass reproduction and its ability to provide high output with low distortion even under the stress of high SPL. Finally, to make sure the power gets to the subwoofer, we used chrome push terminals for maximum current transfer.
The XL subwoofers are Xtremely versatile and offer amazingly low bass whether installed in a small sealed enclosure or ported enclosure and are available in 8", 10" & 12"
Specifications | |
---|---|
Nominal Impedance: | Dual 4-ohm |
BL: | 14.48 |
Inputs: | Dual Voice Coil |
Subwoofer Frequency Range: | 28 Hz - 350 Hz |
Voice Coil Size: | 2 in |
Material: | Non Pressed Paper |
Magnet Size: | 164 oz |
Sensitivity (1W / 1M): | 85.60 dB |
Motor Structure: | 164 oz |
Cutout Diameter: | 9 5/16" (237mm) |
Mounting Depth: | 5.25 in |
Xmax: | 8 mm |
Spl: | 85.60 dB |
No: | 0.219% |
Qts: | 0.387 |
Qes: | 0.423 |
Qms: | 4.558 |
Mms: | 146.27 g |
Cms: | 195 uM/N |
Vas: | 36.31 Ltr |
SD: | 363.05 sqCM |
Fs: | 29.8 Hz |
Test Impedance: | 3.24-ohm |
VC Impedance: | 4-ohm |
Size: | 10 in |
Sensitivity: | 85.60 dB |
Frequency Response: | 28 Hz - 350 Hz |
Voice Coil Size: | 2 in |
Power Handling (RMS/Peak): | 350 / 700 watts |
