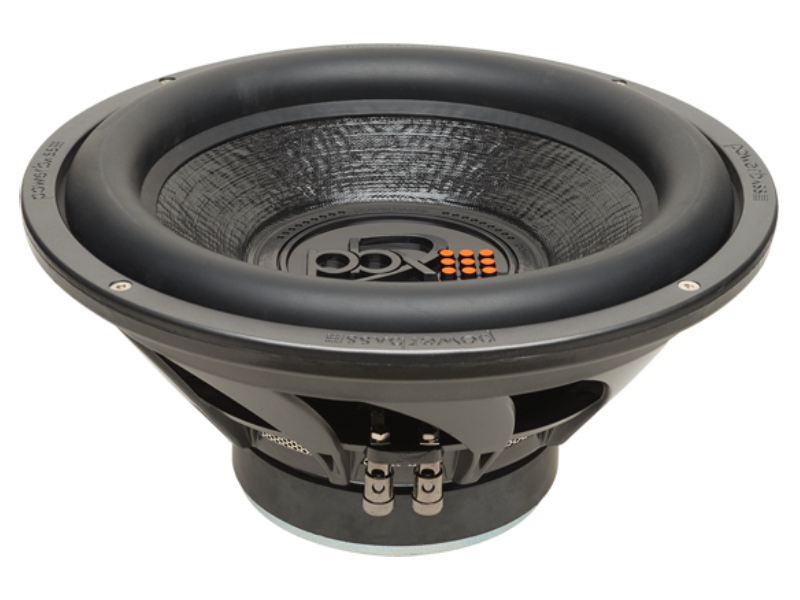

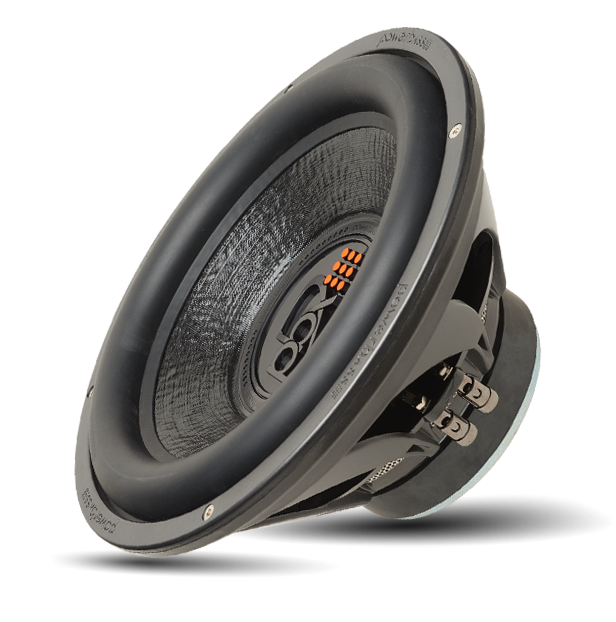

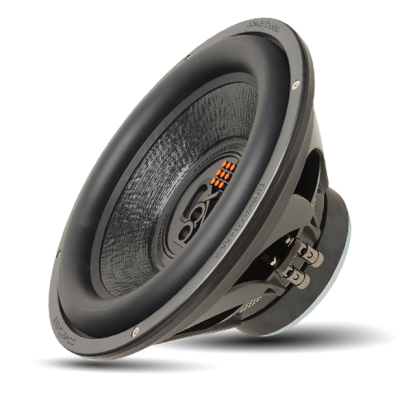

PowerBass 12 Inch 4-Ohm Subwoofer With Extended Low Frequency Response - XL1244
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$289.99
Savings$50.00
Our Price $239.99 CAD

Or as low as $42.11/month over 6 months. Apply Now


Availability
Call for availability

Literature

PowerBass XL-1244 12" Subwoofer

  • NEW Large Roll Santoprene® Surround
  • 12" 4-Ohm Subwoofer
  • 400 watt RMS/800 Watts Max
  • Proprietary Non-pressed Paper DDC Coated Cone
  • 2.0" Vented BASV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Proprietary Non Resonance Polycarbonate/Glass Fiber Basket
  • Chrome Push Terminals
  • Optimally Designed for Both Small Sealed or Ported Enclosures

XL-1244 12" SUBWOOFER WITH EXTENDED LOW FREQUENCY RESPONSE

Our newly designed XL Series Subwoofers, feature the same great look and performance you are accustomed to but are now optimized for extended low frequency response giving you even more bottom end sound and increasing the overall sound quality aspect of your bass tones.

Boasting a custom turbine style frame constructed of polycarbonate/glass fiber, this unique basket supports dual stack magnets and a extended dome backplate.

We utilize a combination of perimeter and pole venting to keep air circulating over the voice coil so everything stays cool.

A non-pressed paper cone was selected for its natural smooth bass reproduction and its ability to provide high output with low distortion even under the stress of high SPL. Finally, to make sure the power gets to the subwoofer, we used chrome push terminals for maximum current transfer.

The XL subwoofers are Xtremely versatile and offer amazingly low bass whether installed in a small sealed enclosure or ported enclosure and are available in 8", 10" & 12"

Specifications
Nominal Impedance: 4-ohm
BL: 14.38
Inputs: Single Coil
Subwoofer Frequency Range: 26 Hz - 300 Hz
Voice Coil Size: 2 in
Material: Non Pressed Paper
Magnet Size: 186 oz
Sensitivity (1W / 1M): 86.78 dB
Motor Structure: 186 oz
Cutout Diameter: 11 1/16" (281mm)
Mounting Depth: 5.75 in
Xmax: 8 mm
Spl: 86.78 dB
No: 0.287%
Qts: 0.421
Qes: 0.462
Qms: 4.794
Mms: 172.16 g
Cms: 195 uM/N
Vas: 66.37 Ltr
SD: 490.87 sqCM
Fs: 27.5 Hz
Test Impedance: 3.21-ohm
VC Impedance: 4-ohm
Size: 12 in
Sensitivity: 86.78 dB
Frequency Response: 26 Hz - 300 Hz
Voice Coil Size: 2 in
Power Handling (RMS/Peak): 400 / 800 watts
