PowerBass 2 Channel Compact Amplifier with 400 Watt High Efficiency Full-Range - XMA2200IR

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping *
Our Price $499.99 CAD

Or as low as $87.74/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature
  • 400 Watt High Efficiency Full-Range Class D Design
  • 2-OHM Stable Stereo Amplifier
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • Balanced RCA Inputs
  • Auto Turn On/Off
  • Remote Soft Delay Turn On/Off Circuit
  • 40 Click Variable Detente High/Low Pass Electronic Crossover
  • Switchable 0/12/18 dB Bass Boost @ 45 Hz
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output

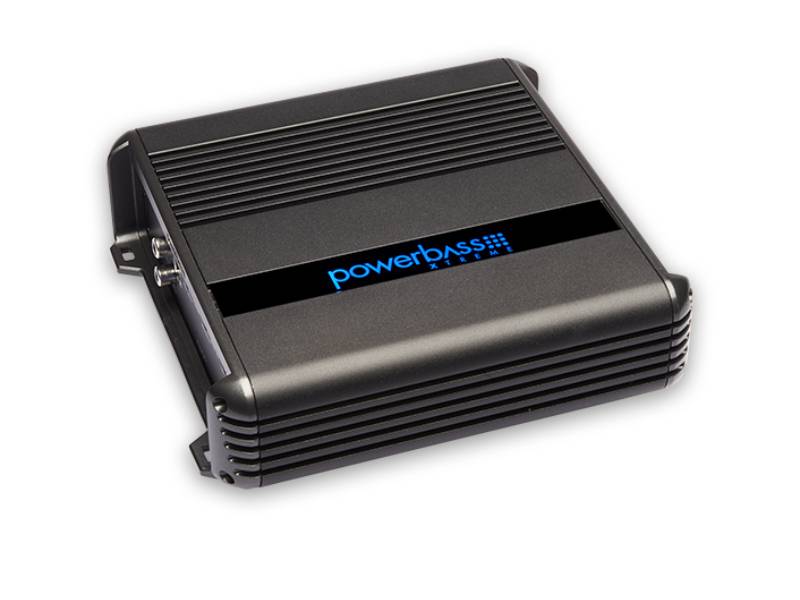

XMA-2200IR 400W RMS STEREO FULL-RANGE CLASS D MINI AMPLIFIER

PowerBass is proud to introduce our newest mini amplifier series, the Xtreme Mini Amplifier (XMA). As today's vehicles become smaller they present a challenge to find a place for a big amplifier with big power output. The new XMA amplifiers are ideal for tight installations making it possible to put this series in places other amplifiers can't go.

The XMA amplifiers carry on the tradition of looking good and sounding great while taking up less space than any other amplifier we have ever offered – and smaller than most amps available from the majority of our competitors' at the same output levels. High efficiency FRD (Full Range Digital) technology allows these amplifiers to operate at well over 85% efficiency.

Limited space no longer means sacrificing great sound with the new PowerBass XMA Amplifiers.

The XMA Series represents the very latest in Class D amplifier technology. It uses the new IR® (International Rectifier) platform which has been under development for the past several years. IR®, a leader in PWM circuit design, has worked in conjunction with PowerBass engineers to produce more stable power output, minimal RF interference and improved sound quality.

The benefits of this cooperative effort are many and include improved temperature, frequency, voltage regulation and drive capability to name a few. The result to the user is a all around improved product that will provide years of listening enjoyment.

Specifications
Variable Subsonic Freq: N/A
Inputs: RCA (speaker level compatible)
Subwoofer Frequency Range: 10 Hz - 250 Hz
Power Supply: Unregulated PWM
Height: 2.0"
Width: 7.1"
Depth: 7.6"
Switchable Subwoofer EQ: 0 / +12 / +18dB @ 45 Hz
4-ohm Mono Power: 400 watts x 1
4-ohm Power: 100 watts x 2
1-ohm Mono Power: N/A
2-ohm Power: 200 watts x 4
Subwoofer EQ Frequency: 45 Hz
Low-Pass Crossover Freq: 25 Hz - 250 Hz
High-Pass Crossover Freq: 50 Hz - 350 Hz
Peak Power: 800 watts
Crossover Slope: 12 dB
Dimensions (in Inches): 7.6" x 7.1" x 2.0"
Input Sensitivity: 0.25 V - 10.0 V
S/N Ratio: >90 dB
Total Harmonic Distortion: 0.04% at Rated Power
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 100 watts x 2
Output Power (14.4 V) @ 2 ohm: 200 watts x 4
Output Power (14.4 V) @ 1 ohm: N/A
Channels (mono): 2
Frequency Response: 10 Hz - 40 kHz
