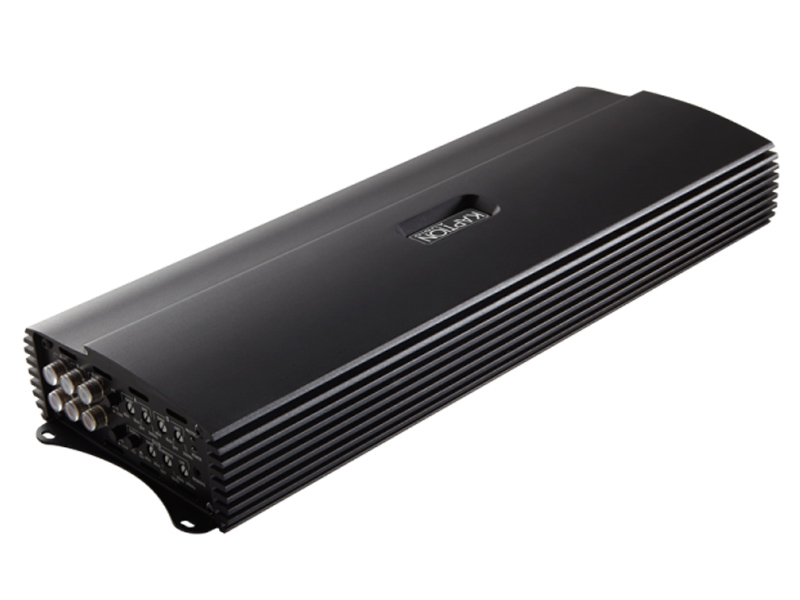

Kaption Audio 5-Channel 700W RMS Amplifier-570-AZR700X5
- 5-Channel 700W RMS Amplifier
- 4 CH CLass AB + Subwoofer
- 4x 125W + 400W Subwoofer
- 2 Ohm Stable

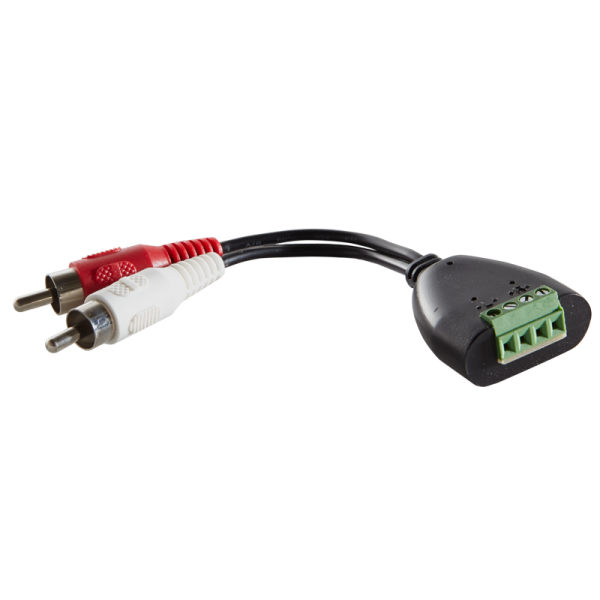

- High Level-in Adapter

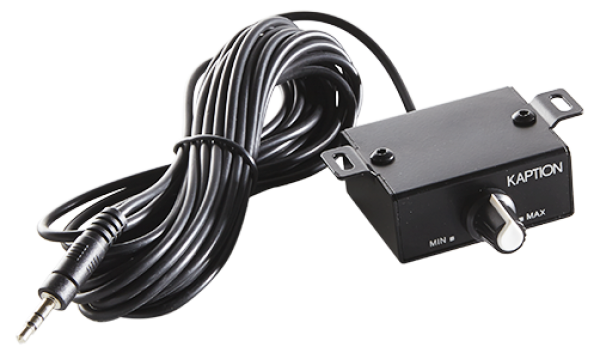

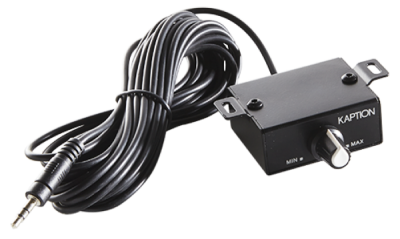

- Wired Bass Remote
Smart. Inside and Out.
At Kaption Audio we believe that great sound doesn't mean you have to skimp on style. Our amps were designed by the Kaption team to be smart, inside and out, using the latest in design software and 3D printing technology.
Inside: Under the hood of each AZR or DZR is the technology to detect fluctuation in voltage levels, audio signal and temperature with the ability to shut itself off to prevent overheating. The compact hardware design and double sided PCB board means the AZRs and DZRs pack big power with a small footprint.

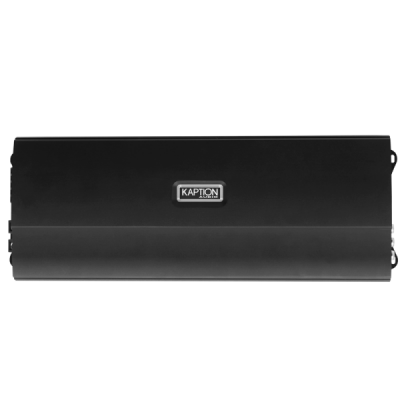

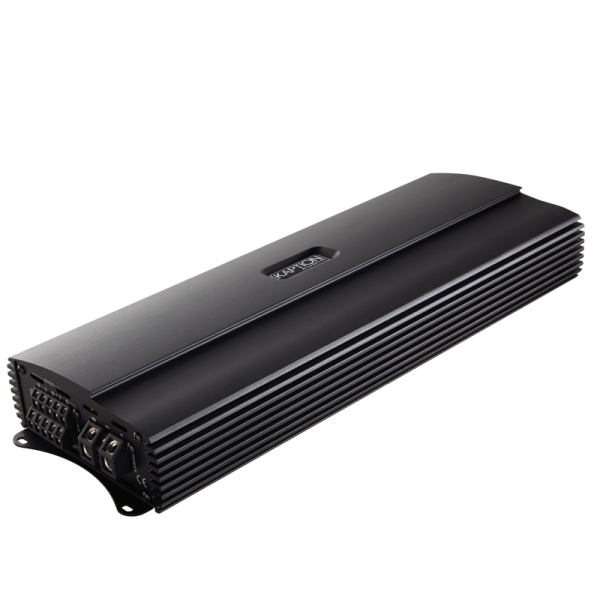

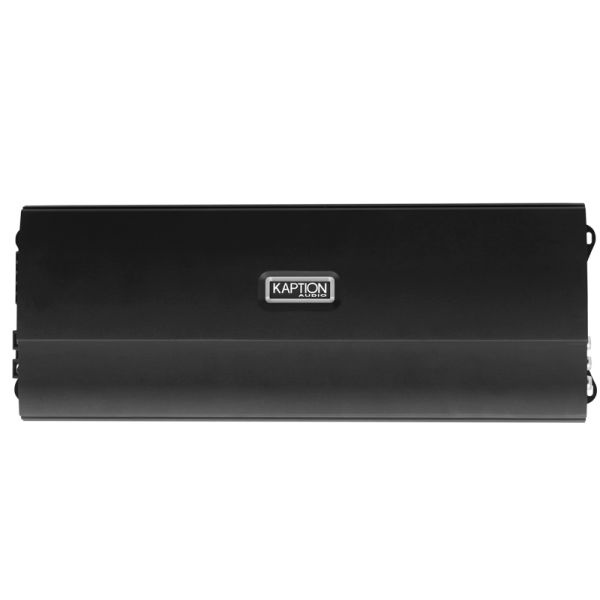

Outside: The sleek matt finished exterior of each AZR and DZR features the iconic Kaption badge logo that lights up whenever the amp is in use. The all-black chassis, made from heavy-guage aluminum with its chiseled heat sink shape effectively merges the line between design and function.
Kaption's next-generation amplifiers combine function and design with voltage, signal and temperature sensing technology built into the hardware you see and the hardware you don’t.
Specification | |
---|---|
Width (in) | 15.60 |
Depth (in) | 6.06 |
Height (in) | 2.4 |
Weight (lbs) | 10.0500 |
Color | Black |
Ampifiler Channels | 5 Channel (4 + 1 Sub) |
Amplifier Class | Class AB + Class D Sub |
RMS Power @ 1 Ohms | N/A |
RMS Power @ 2 Ohms | 125 Watts X4 + 400 Watts Sub-Woofer |
RMS Power @ 4 Ohms | 85 Watts X4 + 275 Watts Sub-Woofer |
Frequency Response | 10 Hz ~ 35 KHz |
Amplifier Power Supply | MOSFET switching power supply |
Preamp Output/Passthough | No |
Linkable Amplifier | No |
Amplifier Low Level Input | 0.2 ~ 5 Volts |
Amplifier High Level Input | 0.4 ~ 10 Volts |
S/N Ratio | > 95 dB |
Amplifier Efficiency (THD+N) | <0.8% |
High Pass Filter Range | 0 ~ 200 Hz |
Low Pass Filter Range | 50 Hz ~ 220 Hz |
Subsonic Filter Range | 0 Hz ~ 50 Hz (Sub-woofer channel only) |
Bass Boost | No |
Ampifier Opperating Voltage Range | 9 ~ 16 Volts |
Low Voltage Protection | Yes, protect < 8 Volts |
Speaker Terminals | Screw Post |
Wire Guage | 4ga Power & Ground Wire |
Wired Bass Remote | Yes |
High Level Adaptor Included | Yes |
External Fuse | 80 A |
