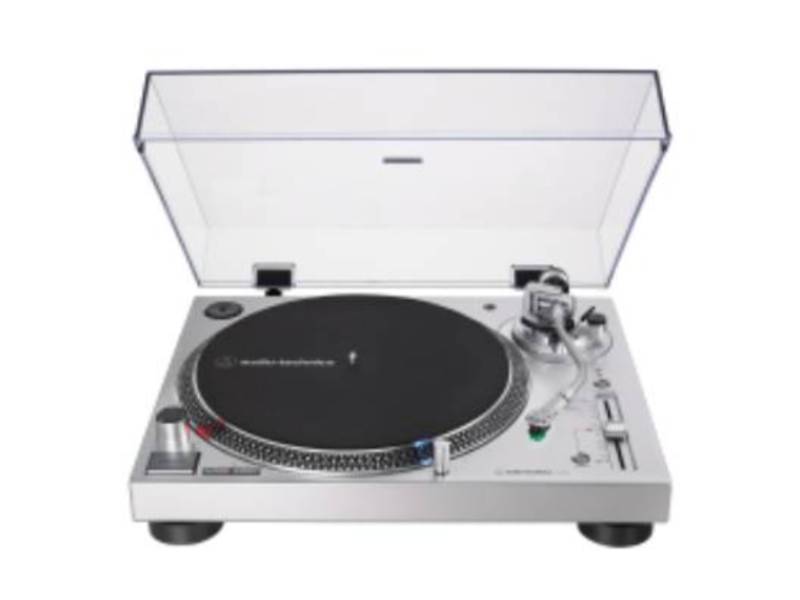

Audio Technica Direct-Drive Turntable Analog & USB - AT-LP120XUSB-SV
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Our Price $429.99 CAD
Sale Ends : December 31, 2020

Or as low as $75.46/month over 6 months. Apply Now


Availability
Call for availability

Literature

This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.

The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"-mount headshell with an AT-VM95E Dual Magnet™ phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Additional features include a die-cast aluminum platter with felt mat; a start/stop button; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8% or +/-16% adjustment ranges; a stroboscopic platter with speed indicator; a removable plug-type stylus target light; external power supply; and a removable hinged dust cover.

Features

  • Experience the high-fidelity audio of vinyl
  • Direct-drive, DC servo motor
  • Fully manual operation
  • Adjustable dynamic anti-skate control
  • Selectable 33/45/78 RPM speeds
  • Professional-grade anti-resonance, die-cast aluminum platter with felt mat
  • AT-HS6 universal ½"-mount headshell and AT-VM95E Dual Magnet™ phono cartridge with 0.3 x 0.7 mil elliptical stylus
  • AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
  • Balanced S-shaped tonearm with hydraulically damped lift control and lockable rest
  • Built-in switchable phono pre-amplifier for phono- or line-level output
  • Stroboscopic platter with speed indicator
  • Variable pitch control with quartz speed lock
  • Removable plug-type target light for easier cueing in low light
  • Damped base construction for reduced low-frequency feedback coloration
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  • Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software (or software of your choice)
  • Includes: USB cable, detachable RCA output cable (dual RCA male to dual RCA male), AC adapter, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
Specifications
Type 3-speed, fully manual operation
Motor DC servo motor
Drive Method Direct drive
Speeds 33-1/3 RPM, 45 RPM, 78 RPM
Turntable Platter Die-cast aluminum
Starting Torque >1.0 kgf.cm
Braking System Electronic brake
Wow and Flutter <0.2% (WTD) @ 3 kHz (JIS)
Signal-to-Noise Ratio >50 dB
Output Level Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 36 dB nominal, RIAA equalized
USB Function A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
Power Supply Requirements 100 to 240 V, 50/60 Hz, 1.5A Max.
Power Consumption 2.75 W
Dimensions 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
Weight 8 kg (17.6 lbs.), without dust cover
Accessories Included AT-VM95E phono cartridge; AT-HS6 headshell; 1.9 m (6.2') USB cable; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
Tonearm typeBalanced S-shaped tonearm with detachable headshell
Effective arm length230.5 mm
Overhang16 mm
Tracking error angleLess than 3 degrees
Applicable cartridge weight3.5-8.5 g
Anti-skating range0-4 g
Replacement StylusAT-VMN95E
USB operation system requirementsPC or Mac with an available USB port (USB1.1 or higher) Windows 7 or above, or Mac OS X or above
