JBLHDI3600BLQAM

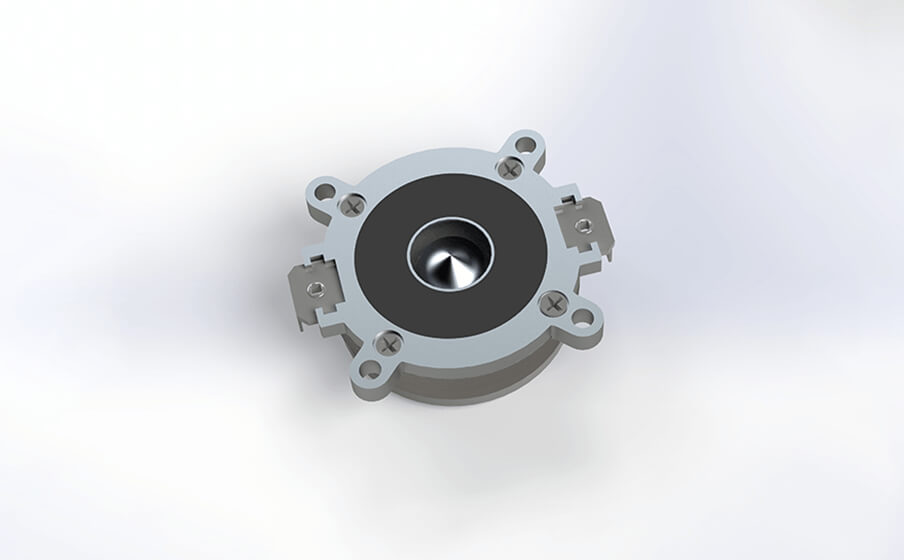

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.

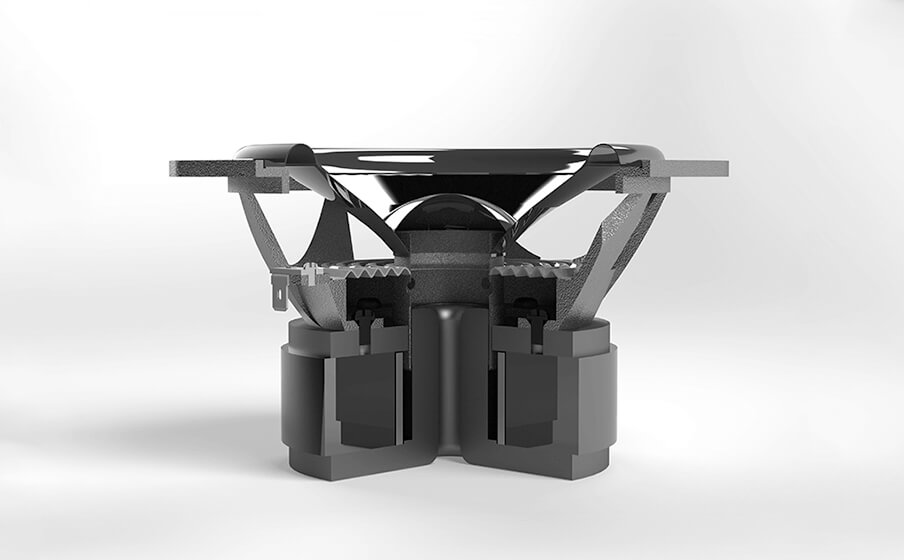

8" (200mm) Advanced Aluminum Matrix cast-frame woofers.

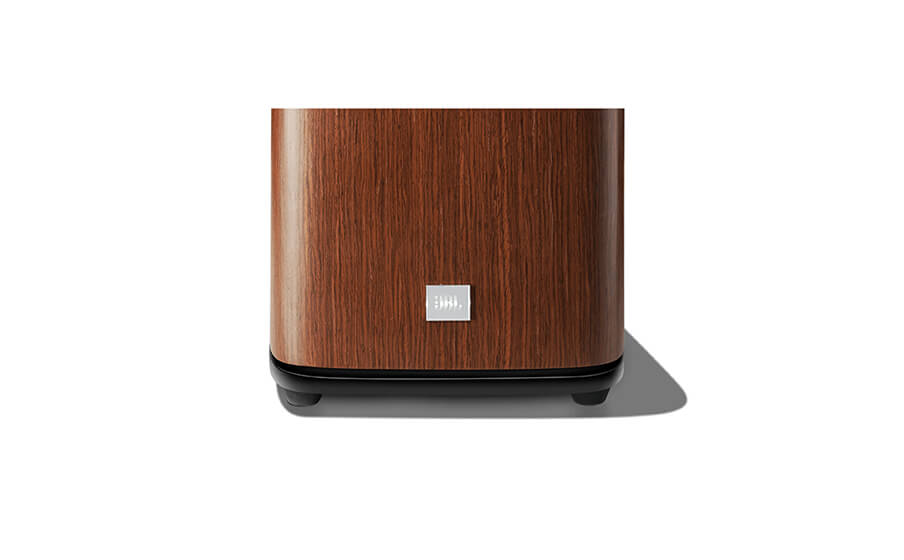

Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.

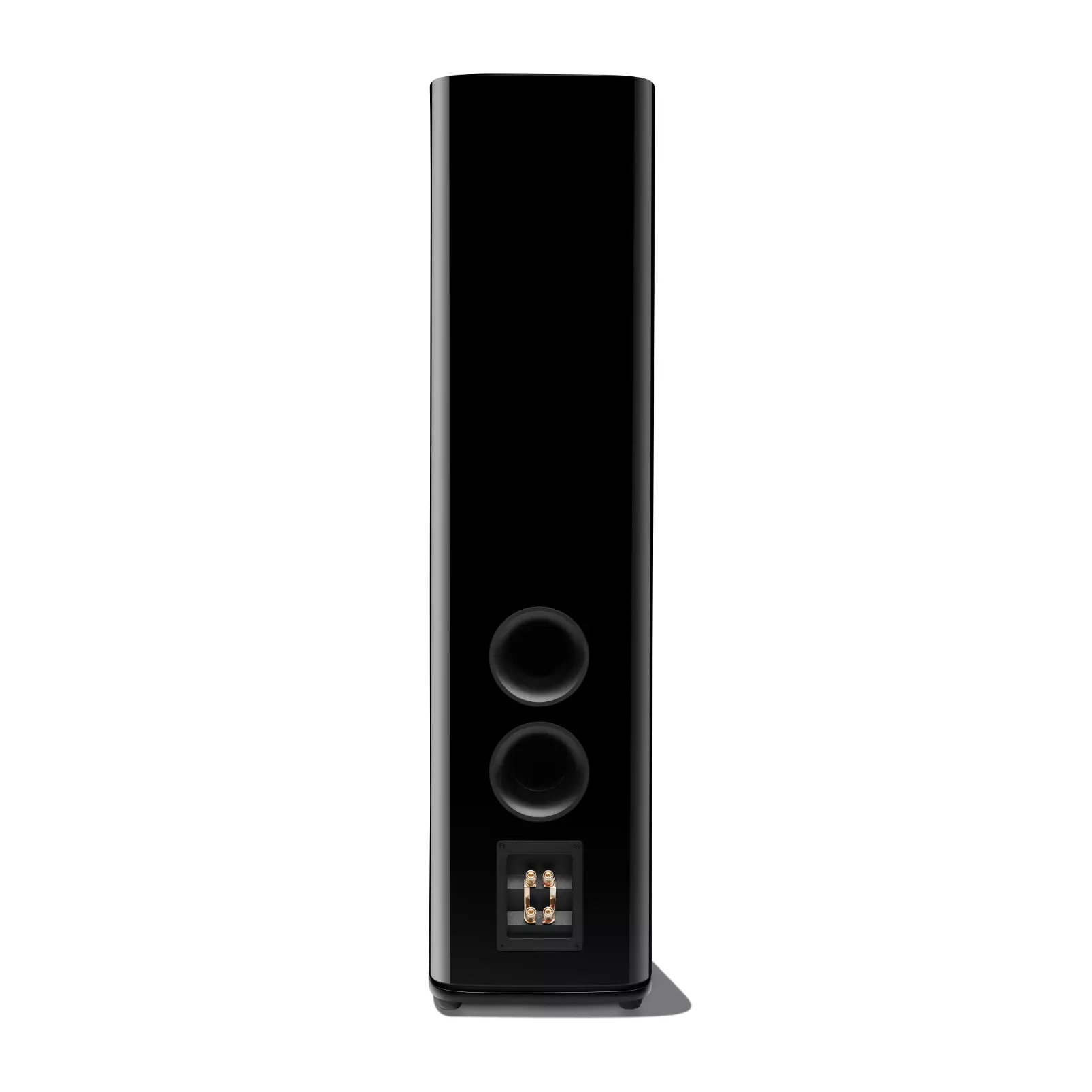

Dual rear-firing, computer-optimized flared ports.

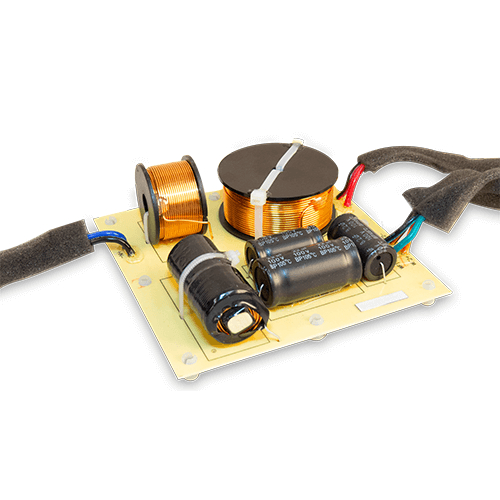

Advanced crossover network

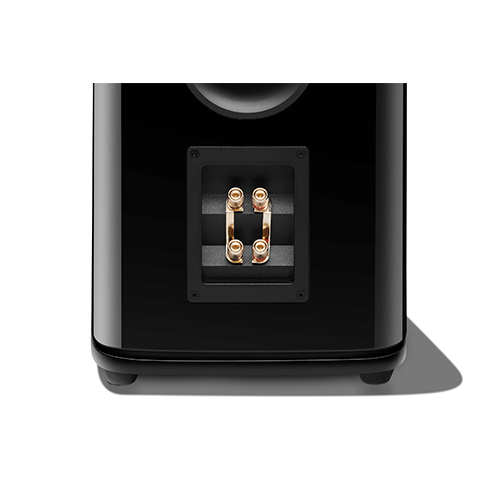

Dual sets of gold-plated binding posts with shorting straps.

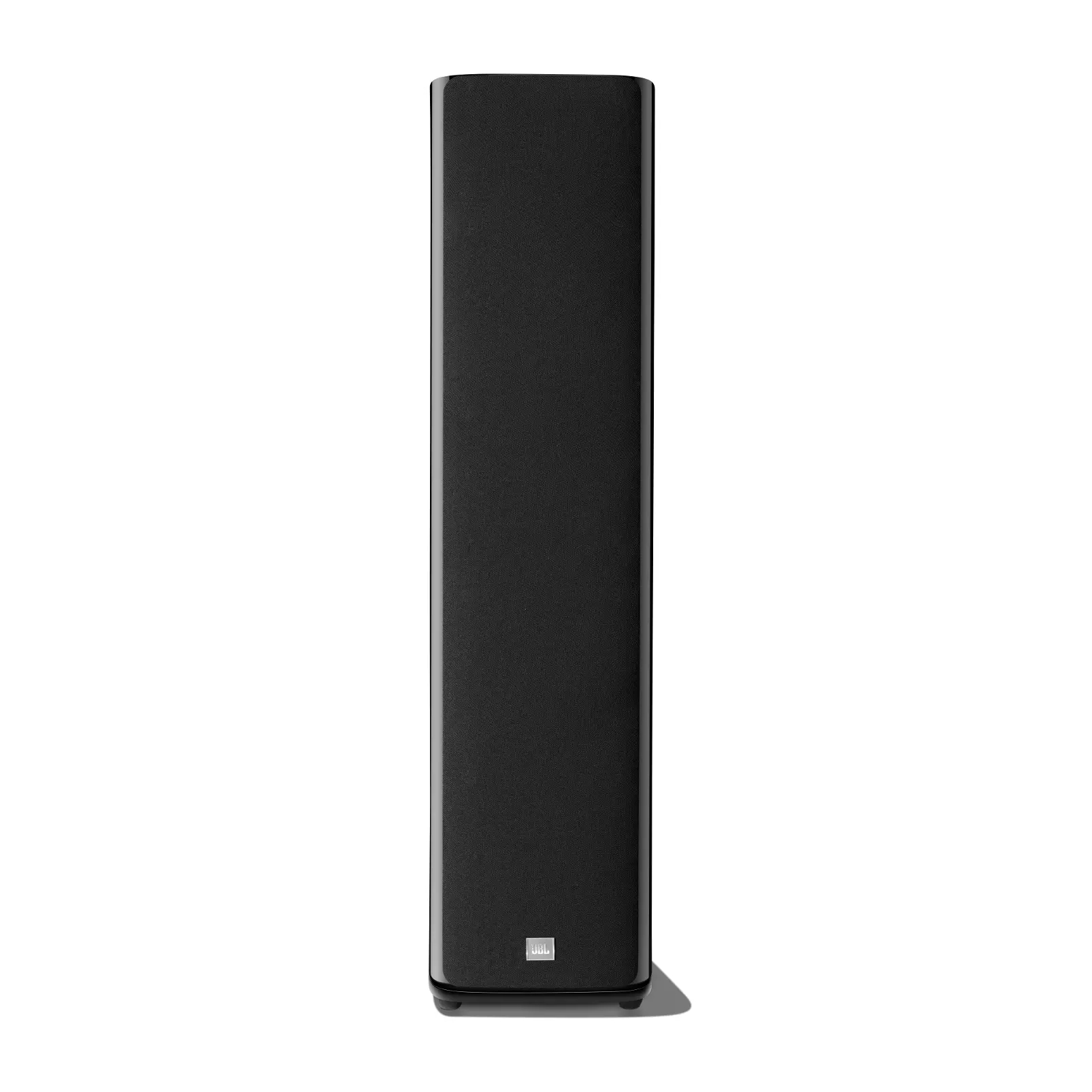

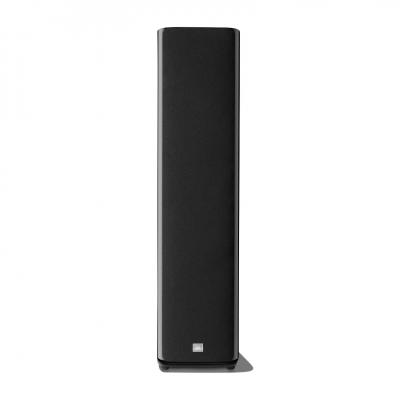

Black cloth, magnetically attached grille.
HDI-3600

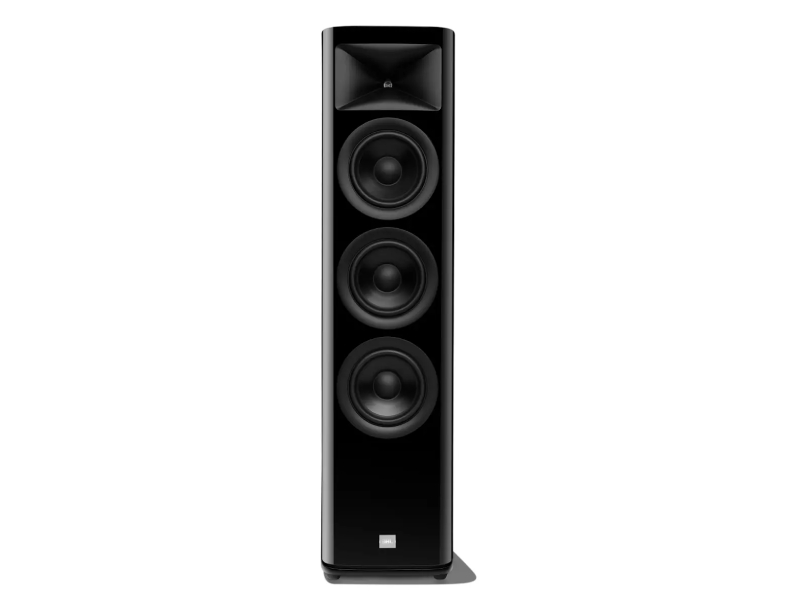

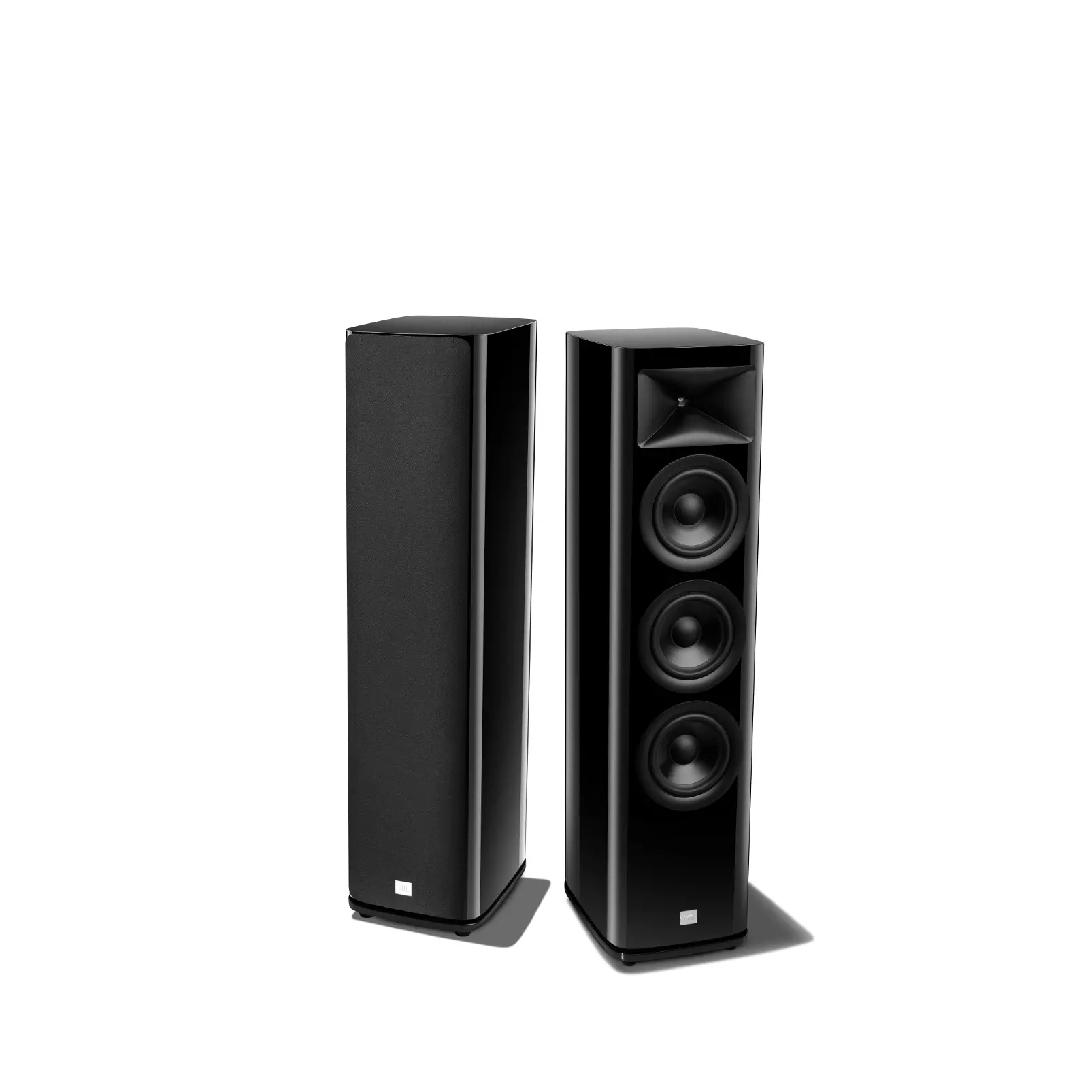

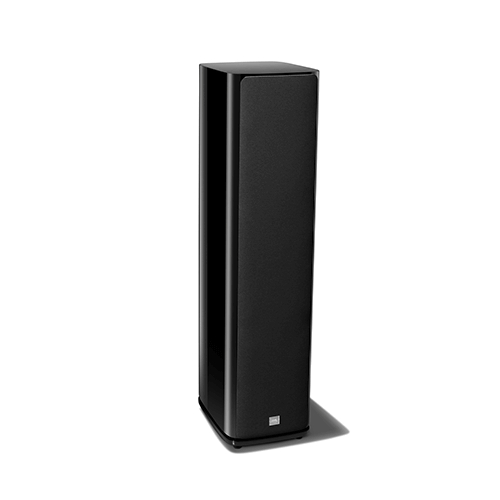

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3600 delivers exceptional performance from a compact footprint. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 6.5-inch (165mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.
General Specifications | |
---|---|
Net Weight | 61.80 lbs (28.03kg) |
Dimensions (H x W x D) | 38.84 x 10.04 x 13.46" (986.5 x 255 x 341.9mm) |
Recommended Amplifier Power | 20W – 250W |
Frequency Response | 38Hz – 30kHz (-6dB) |
Nominal Impedance | 4 Ohm |
Enclosure Type | Bass-reflex design with rear-firing port |
Sensitivity (2.83V @ 1M) | 90dB |
Crossover Frequency | 900Hz, 2000Hz |
Low / Mid Frequency Transducers | Three 6.5-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers |
High Frequency Transducer | 1-inch (25mm) Teonex compression driver |
