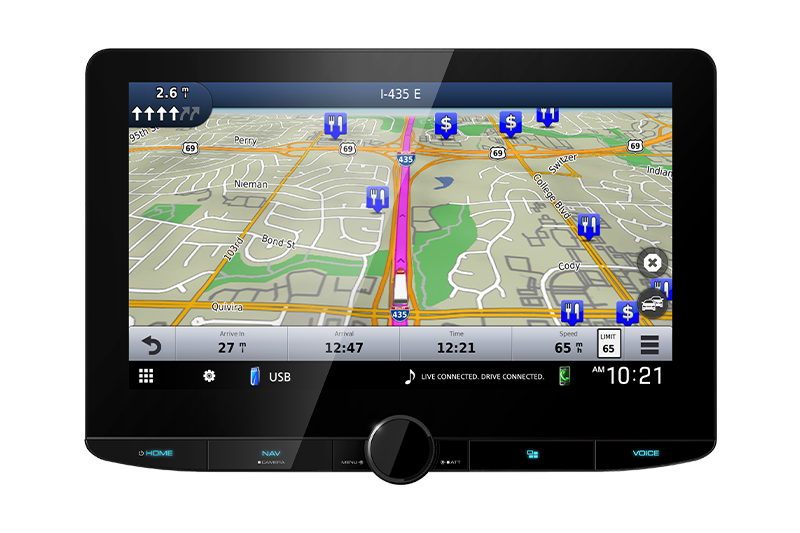

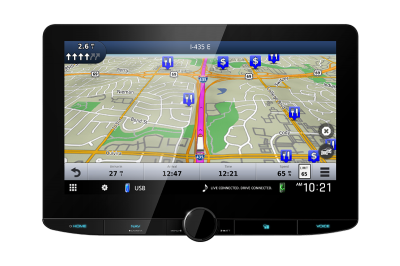

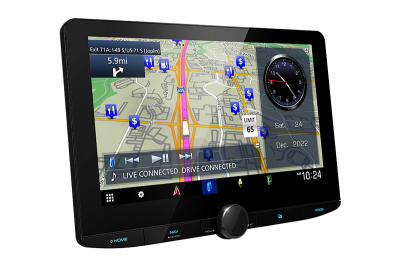

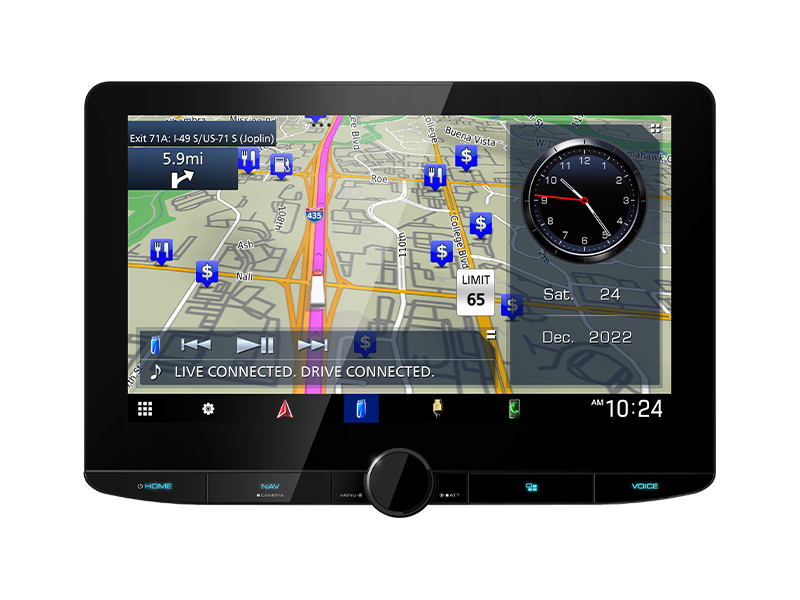

Kenwood 10.1 Inch GPS Navigation System Multimedia Receiver - DNR1008RVS
Price | $2,299.00 |
Savings | $101.00 |
Our Price |
$2,198.00 CAD |
Or as low as $188.97/month over 12 months. Apply Now
Kenwood 10.1 Inch GPS Navigation System Multimedia Receiver - DNR1008RVS
DNR1008RVS
Capacitive Touch Panel
Clear glass display with swipe functionality that provides superior picture and touch panel control.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
4 Camera Inputs
Optional camera connection method for up to 4 cameras in various configurations.
HD Front/Rear Camera Input
HD Front/Rear Camera (CMOS-740HD) can be connected for High Definition viewing.
Parking Guide Lines
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Dash Cam Link
Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.
3 Years Map Care
KENWOOD offers 3 years map updates enabling you to keep up to date. Download the latest maps online to an SD card and insert to your navigation system.

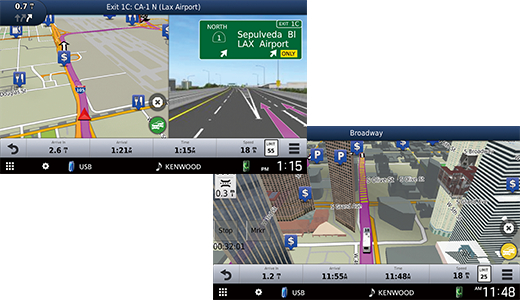

Lane Assist
Lane Assist guides you to the correct lane for an approaching turn or exit, making unfamiliar intersections and exits easy to navigate.
Photo Real Junction View
Garmin Photo Real Junction View shows what complex interchanges look like before you arrive.
3D Terrain View
Garmin navigation feature that displays 3D map contours, providing realistic terrain perspectives.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

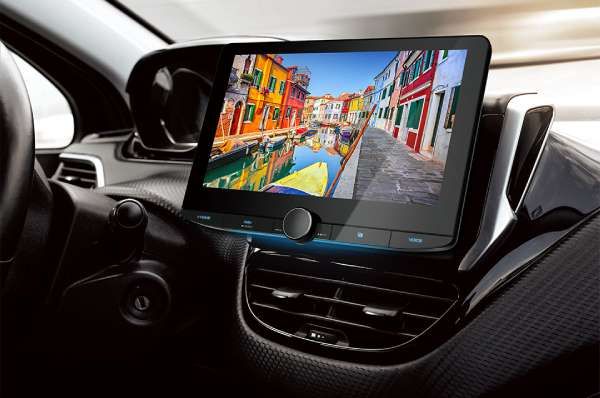

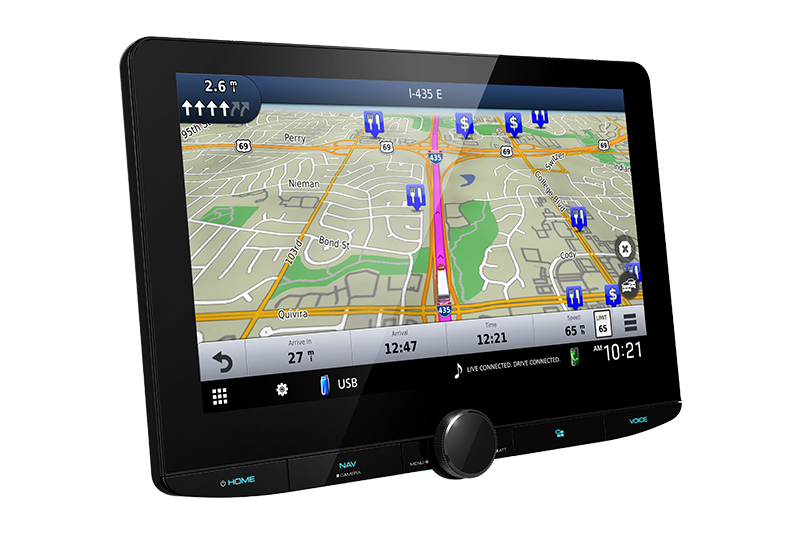

INTRODUCING A REVOLUTIONARY 10.1 INCH HD DISPLAY

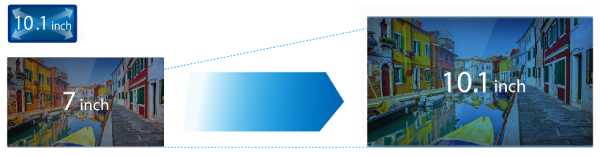

Large 10.1 inch HD display
Provides room for more information that is large and easy to see with just a glance.

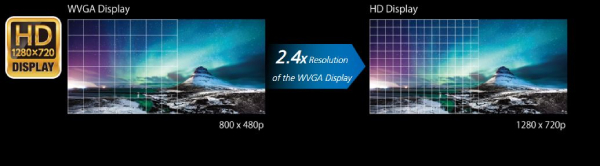

High Definition
— Overwhelming Power of Expression —
10.1" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

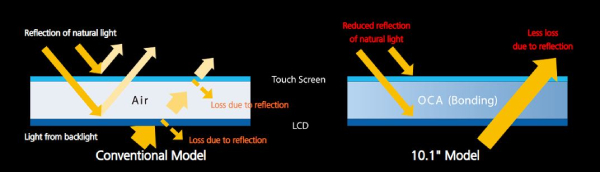

BONDED OPTICAL DISPLAY
— VIVID COLORS WITH HIGH CONTRAST —
Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.

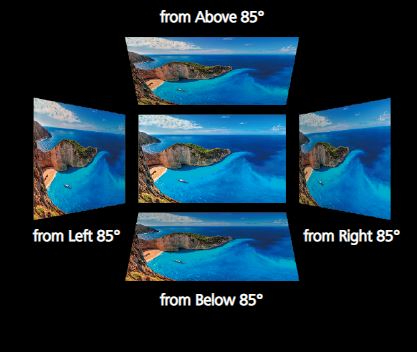

WIDER VIEWING ANGLE
— BEAUTIFUL FROM ANY SEAT —
The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

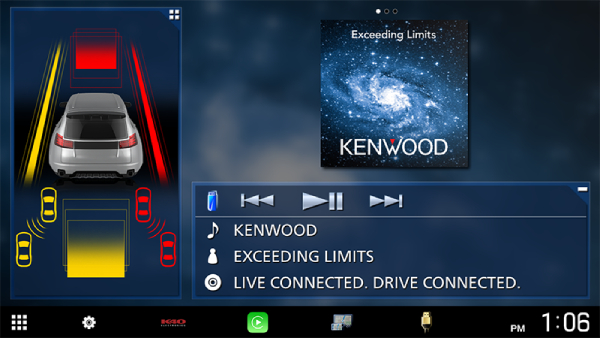

DRIVING WIDGET HOME SCREEN
The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.
FLOATING PANEL MECHANISM WITH 3-WAY POSITION ADJUSTMENT
Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
- Forward / Backward: 13/16"
- Up / Down: 1-9/16"
- Tilt: -10°/ +45°

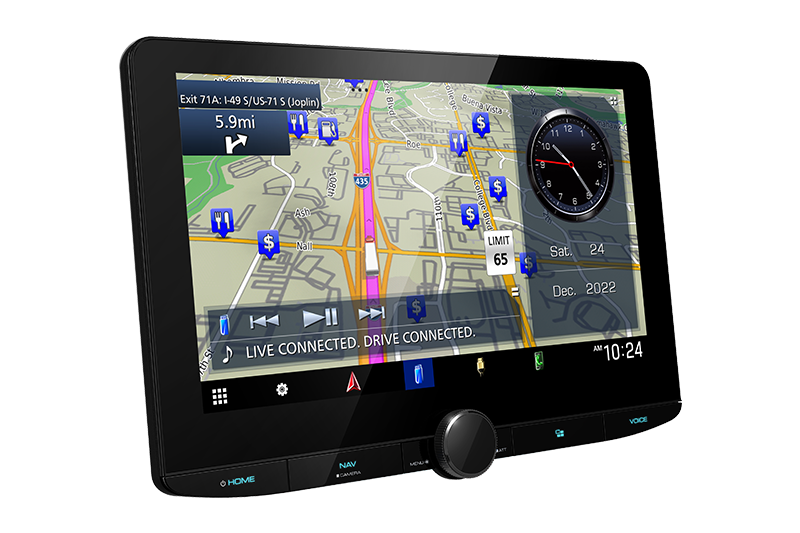

Advanced Navigation
GUIDANCE BY GARMIN
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier such as Photo Realistic Junction View, Lane Assist and 3D Buildings / Landmarks.
DNR1008RVS RV/Truck allows you to enter your vehicle profiles such as size and weight to find accessible routes.

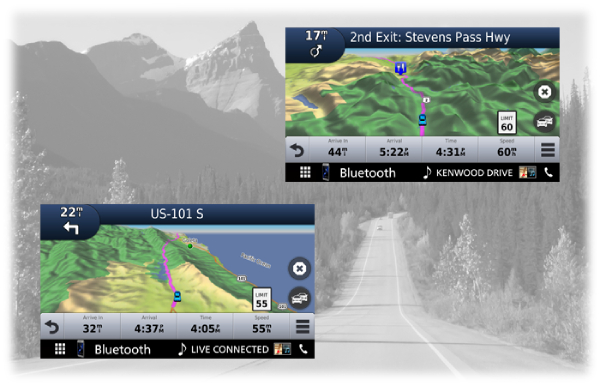

Garmin 3D Terrain View
With the Garmin 3D Terrain View, life-like map contours will be displayed at low zoom levels, giving you a realistic perspective of the terrain in available areas. Previously, users were limited to simply displaying the elevation and grade levels as text on a flat map. Now, true perspectives can be achieved in a 3D format! The mapping view will reflect the curves in real time.
3 Years Map Care
Available to Update and get the latest maps for your KENWOOD Navigation

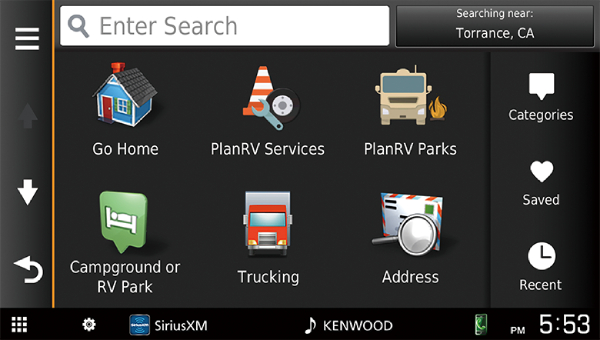

RV & TRUCK Search Modes
RV or Truck selectable search modes include popular queries such as PlanRV Services, PlanRV Parks, Campground or RV Park, TruckDown, and Trucking search selections.

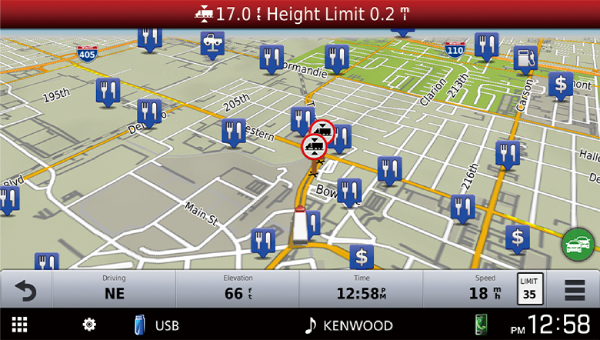

BRIDGE / HEIGHT Warnings
Bridge clearance alerts will be displayed based on the vehicle profile information that has been entered into the receiver. Bridges that are lower than the vehicle profile setting will be avoided on the recommended route automatically.

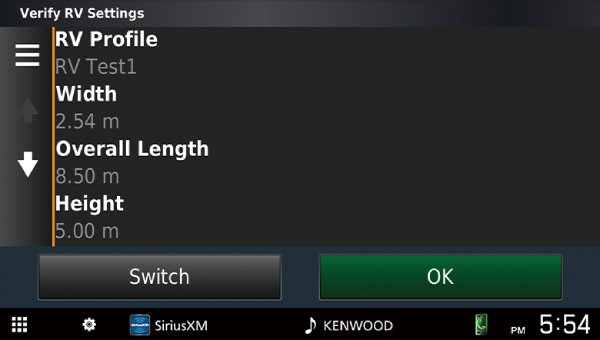

RV/TRUCK Settings Profile
Vehicle specific settings such as Width, Length, Height, Gross Weight, Number of Trailers, etc. can be input to improve map routing performance.

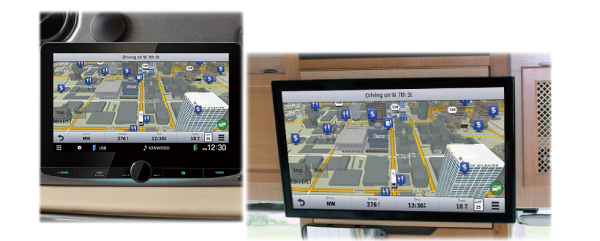

GARMIN NAVIGATION SCREEN to Secondary Monitor
Using the receiver’s AV-Output, a cable (sold separately) can be connected to a secondary monitor to display the Garmin Navigation screen.
Smartphone Connectivity

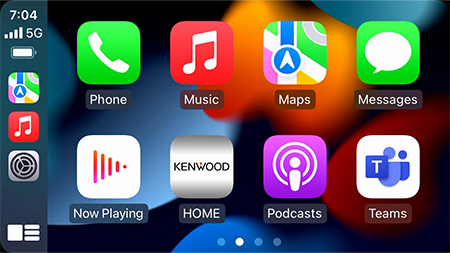

Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).

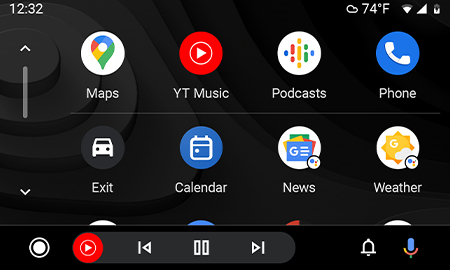

Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).
- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.

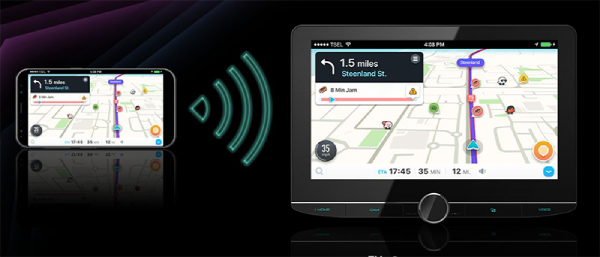

Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

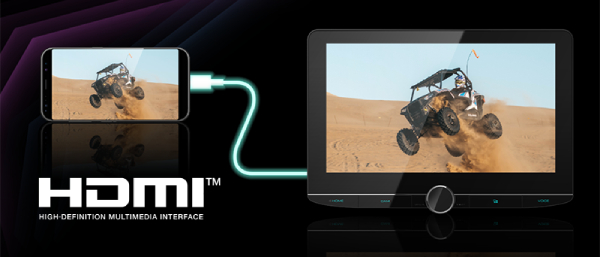

HDMI Input
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1" monitor.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

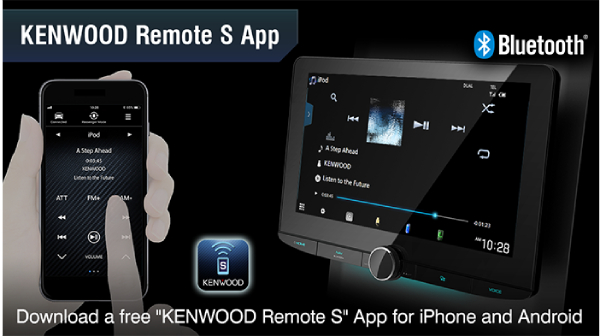

Control the Receiver from Your Smartphone with the KENWOOD Remote App S
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Kenwood Portal App
Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.
The Best Audio Experience

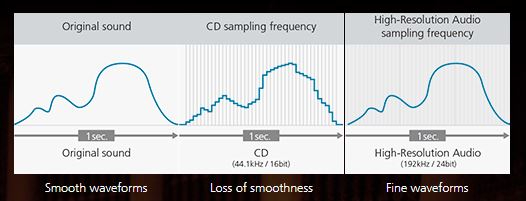

Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.

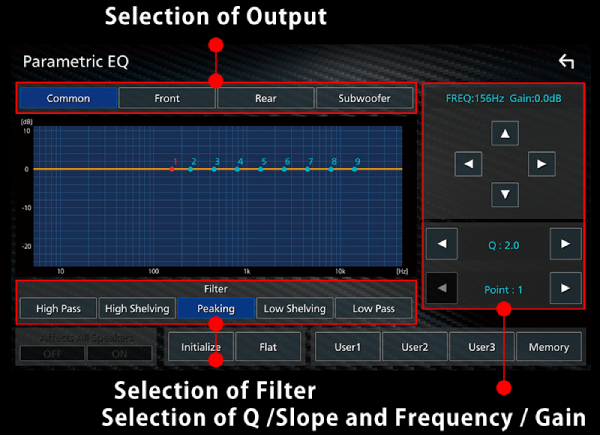

Parametric Equalizer
You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

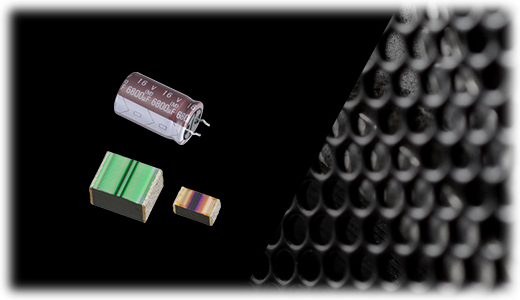

High Quality Audio Parts Supporting High-Resolution Audio Reproduction
To ensure the best possible sound quality, this receiver uses custom-made and carefully selected parts, such as audio quality power supply capacitors and high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.

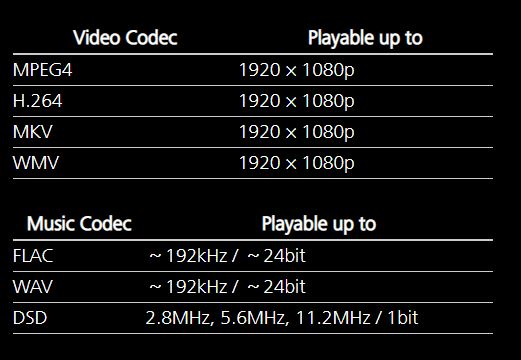

Playable FULL HD Video and FLAC Files
You can play back from a USB device or SD card audio and video files compressed in various formats.
Safe Driving
ENHANCED VEHICLE INTEGRATION
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, this model feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately)
HD Front / Rear Camera Input
The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

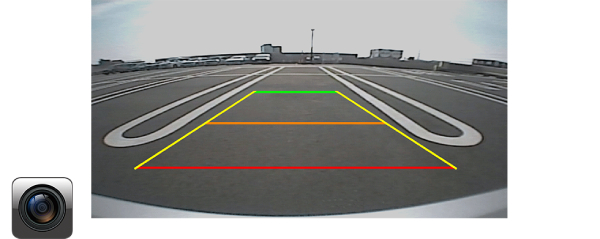

Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

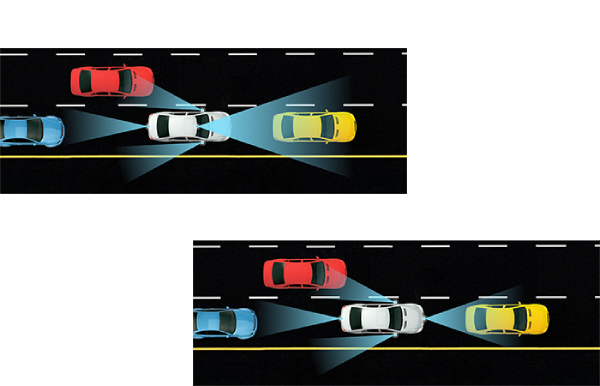

4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

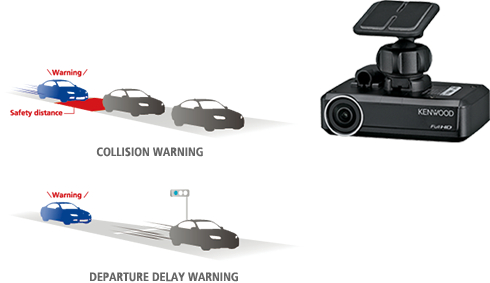

Dash Cam Link Ready
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
Additional Features
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)

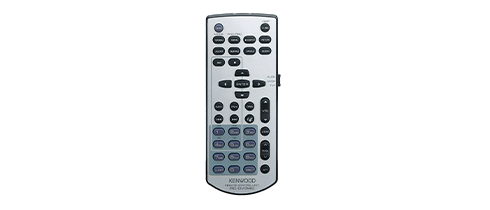

Remote Control (Optional)
This receiver can be operated using the optional remote control KCA-RCDV340.
MonitorSection | |
---|---|
Picture size | 10.1 inches(diagonal) wide |
W x H | 223.7 x 125.8 (mm), 8-13/16 x 4-15/16 (inch) |
Display system | AAS LCD panel |
Drive system | TFT active matrix system |
Number of pixels | 2,764,800 |
Number of pixels | 1280H x 720V x RGB |
Effective pixels | 99.99% |
Pixel arrangement | RGB striped arrangement |
Back lighting | LED |
USB I/FSection | |
USB Standard | USB2.0 High Speed |
File System | FAT 16/32, exFAT, NTFS |
Maximum Power Supply Current | DC5V=1.5A |
D/A Converter | 24/32Bit |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / DSD / Vorbis |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
Frequency response 192k Sampling | 20 - 88,000 Hz |
96k Sampling | 20 - 44,000 Hz |
48k Sampling | 20 - 22,000 Hz |
44.1k Sampling | 20 - 20,000 Hz |
Total harmonic distortion 1kHz | 0.010% |
Signal to Noise ratio | 98.5dB |
Dynamic range | 89dB |
SDSection | |
SD Standard | SD / SDHC / SDXC |
Compatible File System | FAT 16/32, exFAT, NTFS |
Capacity | Maximum 2T Byte |
Data Transfer Rate | Maximum 25MB/sec |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / DSD / Vorbis |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
Wireless Mirroring'Section | |
Mode | Sink |
Copyright protection | HDCP2.2 |
Touch Control | UIBC |
Wi-Fi | |
IEEE Standard | 802.11 a/b/g/n/ac |
Frequency Range | Dual Band ( 2.4GHz / 5GHz ) |
Channels | Auto(1-11ch) |
Channels | Auto(149,153,157,161ch) |
Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / |
Transfer rates (MAX) | 11g: 54 Mbps / 11n: 300 Mbps / |
Transfer rates (MAX) | 11ac: 867 Mbps |
BluetoothSection | |
Technology | Bluetooth Ver5.0 |
Frequency | 2.402 2.480 GHz |
Maximum Communication range | Line of sight approx.10m(32.8ft) |
Audio Codec | SBC / AAC |
Multi Profile Support | Multi Profile |
Profile | HFP (V1.7) (Hands Free Profile) |
Profile | SPP (Serial Port Profile) |
Profile | A2DP (Advanced Audio Distribution Profile) |
Profile | AVRCP (V1.6) (Audio/Video Remote Control Profile) |
Profile | PBAP (Phonebook Access Profile) |
HDMI | |
Connector Type | Type A |
Input Resolution | VGA (640x480p 59.94Hz/60Hz) |
Input Resolution | 480p (720x480p 59.94Hz/60Hz) |
Input Resolution | 720p(1280x720p 59.94Hz/60Hz) |
Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM |
BAND | |
BAND | 13Band |
frequency (Hz) (BAND1-13) | |
frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
Gain | |
Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
High Pass Filter Frequency | |
HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
SLOPE | |
SLOPE | -6/-12/-18/-24[dB/Oct.] |
Low Pass Filter Frequency | |
LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
SLOPE | |
SLOPE | -6/-12/-18/-24[dB/Oct.] |
High Pass Filter Frequency | |
HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k |
SLOPE | |
SLOPE | -12/-18/-24[dB/Oct.] |
Band PASS FILTER frequency | |
Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] |
Band PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through |
SLOPE | |
SLOPE | -12/-18/-24[dB/Oct.] |
Low Pass Filter Frequency | |
LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] |
SLOPE | |
SLOPE | -12/-18/-24[dB/Oct.] |
Front / Rear /Subwoofer Delay | |
Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
Gain | |
Gain | -8 to 0dB |
Subwoofer Level | |
Subwoofer Level | -50 to 10dB |
FM | |
Frequency Range | 87.9MHz - 107.9MHz |
(Frequency step) | (200kHz) |
Usable sensitivity | 7.3dBf (0.7V) /75 |
Frequency response | 30Hz - 15kHz |
S/N (dB) | 70dB (MONO) |
Selectivity | 80dB ( |
Stereo separation | 45dB (1kHz) |
Frequency Range | 530kHz - 1700kHz |
(Frequency step) | (10kHz) |
Usable sensitivity | |
Usable sensitivity | 30dB (31V) |
Video | |
Color system of external video input | NTSC/PAL |
External video input level (RCA jacks) | 1 Vp-p / 75 Ohms |
External audio max input level (Mini jacks) | 2 V / 25 kOhms |
Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
Audio Output level (Mini jacks) | 0.9 V / 10 kOhms |
Audio | |
Maximum Power Output (Front&Rear) | 50Wx4 |
Typical Power Output (Front&Rear) | Full Bandwidth Power |
Typical Power Output (Front&Rear) | (at less than 1%THD) |
Typical Power Output (Front&Rear) | 22Wx4 |
Output frequency band | 20 - 88,000Hz |
Preout level (V) | 4V / 10kOhms |
Preout impedance () | =< 300 Ohms |
Speaker Impedance () | 4-8 Ohms |
NavigationSection | |
Receiver | High-sensitivity GNSS receiver |
Receiving frequency | GPS1575.42MHzGLONASS159806251605.375MHz(C/A code ) |
Acquisition Times | Cold: 26 seconds(typ) |
Acquisition Times | All satellites at -130dBmWithout aiding |
Update Rate | 1/second, continuous |
Accuracy | Position: < 2.0meters,CEP, at -130dBm |
Accuracy | Velocity: 0.05meter/sec |
Positioning Method | GPS/GLONASS |
Antenna | External GNSS Antenna |
General | |
Operating voltage | 12V DC Car Battery |
Installation Dimensions WxHxD | 178 |
Installation Dimensions WxHxD | 7 |
Weight Main unit | 3.25 kg |
Weight Main unit | 7.28lbs. |
