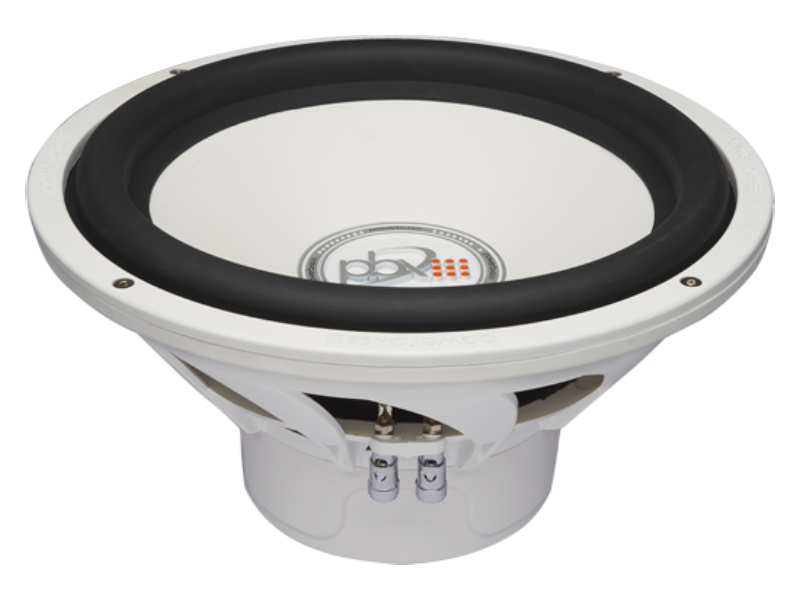

PowerBass 12 Inch Marine Subwoofer - XL1240DMF
Literature
XL-1240DMF 12" Marine Subwoofer
- New PBX dust cap
- Dual 4 ohm voice coils
- New Polycarbonate Glass Fiber Basket
- Marine Grade 12" Subwoofer

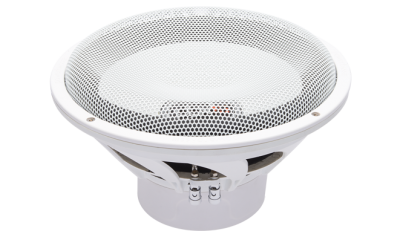

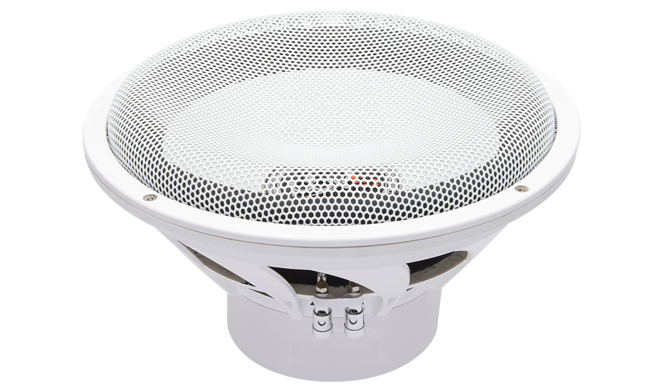

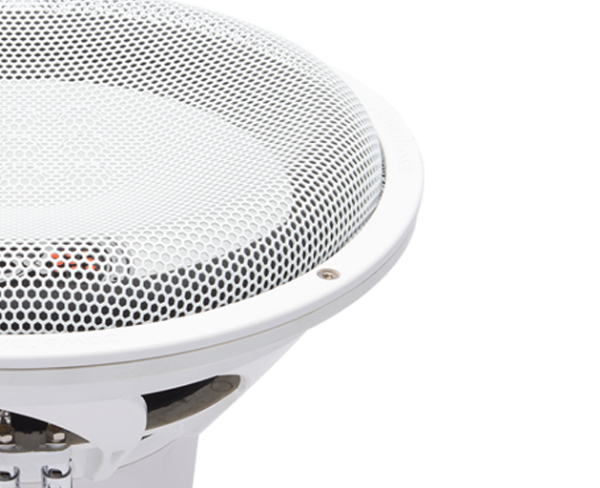

- White powder coated aluminum grill included
- Injection Molded UV-Treated White Polypropylene Cone
- TPO Thermoplastic Polyurethane Surround
- 2.0" KSV Voice Coil Former
- 120 oz. Motor Structure
- Insulated Tinsel Leads
- Marine Grade Spider
- 250 Watts RMS/500 Watts Max
- Designed for FREE AIR applications and Sealed Enclosures
XL-1240MF MARINE GRADE 12" SUBWOOFER DUAL 4 Ω
What better way to enjoy your day being out on the water in your boat is listening to your favorite music as well.
We have engineered the best musical reproduction solution with our XL Marine Grade woofers. They feature White UV inhibited Polycarbonate Glass Fiber Basket, White UV Inhibited Poly Woofer Cone, and Marine Grade Spider that delivers the best sonic bass reproduction on the water.
Sit back and relax knowing that you have put your music in the engineering hands of PowerBass.
Specifications | |
---|---|
Nominal Impedance | 4-ohm + 4-ohm |
BL | 8.859 |
Inputs | Dual Coil |
Subwoofer Frequency Range | 36 Hz - 500 Hz |
Voice Coil Size | 2 in |
Material | Polypropylene |
Magnet Size | 140 oz |
Sensitivity (1W / 1M) | 85.86 dB |
Motor Structure | 39 oz |
Cutout Diameter | 11 in |
Mounting Depth | 5.875 in |
Xmax | 7.9 mm |
Spl | 85 dB |
No | 0.234% |
Qts | 0.682 |
Qes | 0.763 |
Qms | 6.429 |
Mms | 172.7 g |
Cms | 125 uM/N |
Vas | 46.09 Ltr |
SD | 510.7 sqCM |
Fs | 34.3 Hz |
Test Impedance | 1.61 ohm |
VC Impedance | 4-ohms |
Size | 12" |
Sensitivity | 85 dB |
Frequency Response | 36 Hz - 500 Hz |
Voice Coil Size | 2" |
Power Handling (RMS/Peak) | 250 / 500 watts |
