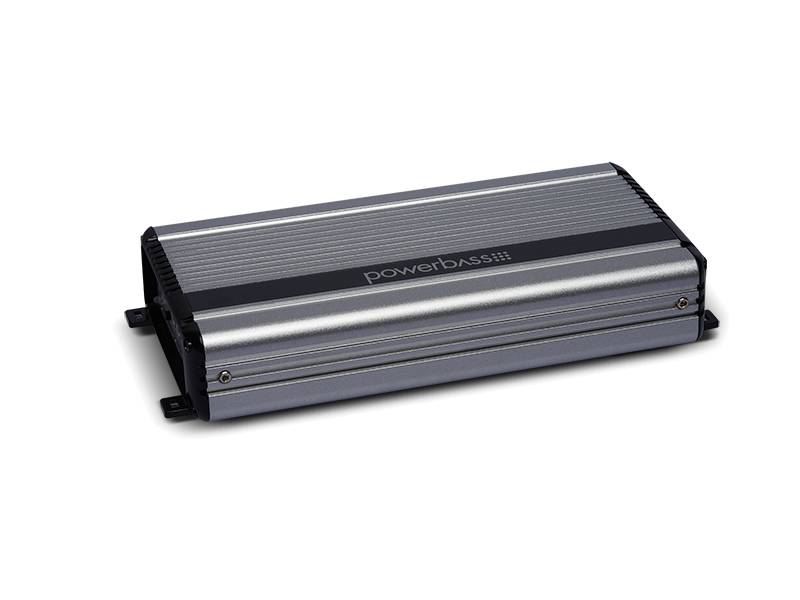

PowerBass 4 Channel PowerSport Amplifier - XL4165M
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Price$579.99
Savings$100.00
Our Price $479.99 CAD

Or as low as $84.23/month over 6 months. Apply Now


Availability
Call for availability

Literature
  • 640 Watt High Efficiency Full-Range Class D Design
  • 2-OHM Stable Stereo Amplifier
  • International Rectifier® Chip Set
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low/High Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.

XL-4165M 640 WATTS RMS 4-CHANNEL FULL RANGE CLASS D POWERSPORT AMPLIFIER

The XL series was developed for the growing Power Sports market including UTV and Marine applications, where electronics must withstand harsh damp environments. The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and extreme temperatures.

These ultra small weather resistant amplifiers are ideal for all types of outdoor audio applications such as motorcycles, golf carts and off road vehicles. But the small size also makes these amps a great choice anywhere space is a premium.

Utilizing the latest Class D circuit design these amplifiers may be small on size but they are big on power and have a much lower current draw compared to other amplifiers with similar power output. The wrap around aluminum heatsink keeps everything running cool.

Extremely versatile, each model gives you’re a choice of low level RCA input or 3.5mm (1/8”) mini-pug Aux Input. The Aux Input allows for easy connection of portable devices such as an iPod, MP3 player or smartphone to become your source unit.

Specifications
Selectable Subwoofer EQ: 0-18d B Gain @ 45Hz, Rear Ch.
Variable Subsonic Freq: N/A
Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
Equalization Boost/Cut: 0 - 18 dB
Subwoofer Frequency Range: 10 Hz - 400Hz
Power Supply: Unregulated PWM
Height:1.6"
Width: 4.5"
Depth: 9.6"
4-ohm Mono Power: 320 watts x 2
4-ohm Power: 80 watts x 4
1-ohm Mono Power: N/A
2-ohm Power: 160 watts x 4
Subwoofer EQ Frequency: 45 Hz
Low-Pass Crossover Freq: 40 Hz - 400 Hz
High-Pass Crossover Freq: 40 Hz - 400 Hz
Peak Power: 1280 watts
Crossover Slope: 12 dB
Dimensions (in Inches): 9.6" x 4.5" x 1.6"
Input Sensitivity: 0.25 V - 10.0 V
S/N Ratio: >85 dB
Total Harmonic Distortion: 0.04% at Rated Power
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 80 watts x 4
Output Power (14.4 V) @ 2 ohm: 160 watts x 4
Output Power (14.4 V) @ 1 ohm: N/A
Channels (mono): 4
Frequency Response: 10 Hz - 40 kHz
