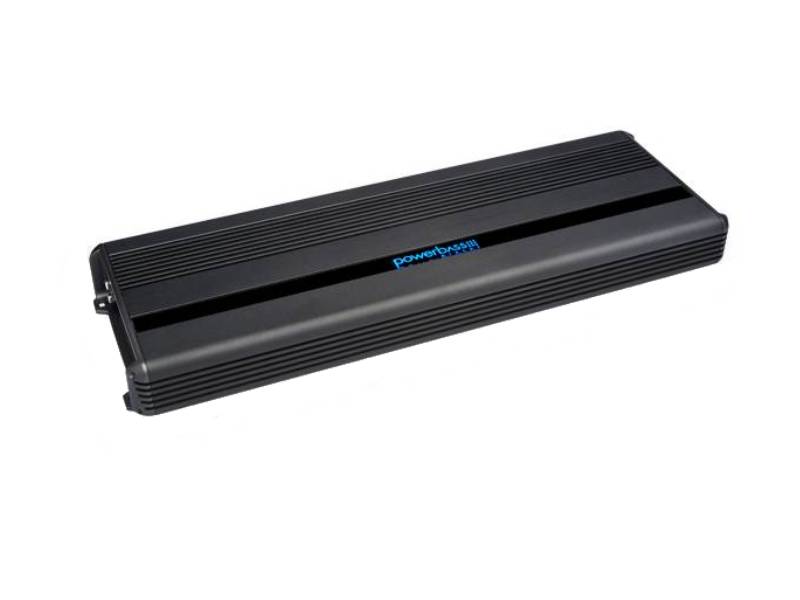

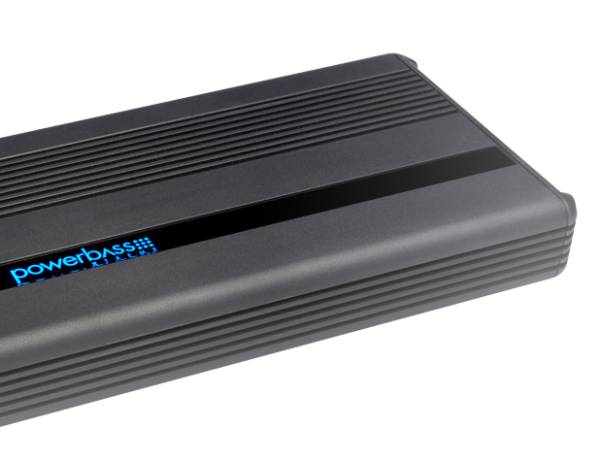

PowerBass Mono Block Compact Amplifier with 3,000 Watt High Efficiency - XMA3000D
XMA3000D
- 3,000 Watt High Efficiency Class D Design
- 1-OHM Stable Mono Block Amplifier
- Ultra Low Current Draw
- Double Sided Copper Plated PCB
- PWM MOSFET Power Supply
- Digital Sound Optimization Circuitry
- High Damping Control Circuit
- Variable Subsonic Filter
- High Current Voltage Ripple Rejection Circuitry
- Balanced RCA Inputs
- Auto Turn On/Off
- Remote Soft Delay Turn On/Off Circuit
- 40 Click Variable Low Pass Electronic Crossover
- 40 Click Variable Frequency/18dB Bass Boost EQ
- Variable Gain Control
- Wired Secondary Remote Gain Control Included
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output
- Strapable Dual Amp Power Doubling Circuit (Amp-to-Amp Bridged at 2 ohm minimum)
XMA-3000D, 3,000W RMS @ 1Ω MONO BLOCK CLASS D COMPACT AMPLIFIER
PowerBass is proud to introduce our newest powerhouse in our compact amplifier series the XMA 3000D provides over 3000W of shear power perfect for big SPL applications and our new 4XL Subwoofers. The Xtreme Mini Amplifier (XMA). As today’s vehicles become smaller they present a challenge to find a place for a big amplifier with big power output. The new XMA amplifiers are ideal for tight installations making it possible to put this series in places other amplifiers can’t go.
The XMA amplifiers carry on the tradition of looking good and sounding great while taking up less space than any other amplifier we have ever offered – and smaller than most amps available from the majority of our competitors’ at the same output levels. High efficiency FRD (Full Range Digital) technology allows these amplifiers to operate at well over 85% efficiency.
Limited space no longer means sacrificing great sound with the new PowerBass XMA Amplifiers.
| Specifications | |
|---|---|
| Selectable Subwoofer EQ: | 0 - 18 dB @ 40 Hz - 100 Hz |
| Variable Subsonic Freq: | 10 Hz - 50 Hz |
| Inputs: | RCA (speaker level compatible) |
| Equalization Boost/Cut: | 0 - 18 dB |
| Subwoofer Frequency Range: | 10 Hz - 250 Hz |
| Power Supply: | Unregulated PWM |
| Height: | 2.0" |
| Width: | 7.1" |
| Depth: | 21" |
| 4-ohm Mono Power: | 1200 watts x 1 |
| 4-ohm Power: | 1200 watts x 1 |
| 1-ohm Mono Power: | 3000 watts x 1 |
| 2-ohm Power: | 2000 watts x 1 |
| Subwoofer EQ Frequency: | 40 Hz- 100 Hz |
| Variable Subwoofer EQ: | 0 - 18 dB |
| Low-Pass Crossover Freq: | 20 Hz - 250 Hz |
| High-Pass Crossover Freq: | n/a |
| Peak Power: | 6000 watts |
| Crossover Slope: | 24 dB |
| Dimensions (in Inches): | 21" x 7.1" x 2.0" |
| Input Sensitivity: | 0.25 V - 10.0 V |
| S/N Ratio: | >100 dB |
| Total Harmonic Distortion: | 0.4% at Rated Power |
| Strapped Output Power @ 2ohms: | 6000 watts x 1 |
| Output Power (14.4 V) @ 4 ohm: | 1200 watts x 1 |
| Output Power (14.4 V) @ 2 ohm: | 2000 watts x 1 |
| Output Power (14.4 V) @ 1 ohm: | 3000 watts x 1 |
| Channels (mono): | 1 |
| Frequency Response: | 10 Hz - 300 Hz |
