PowerBass Class-A/B Mono Amplifier with 400 Watt High Efficiency - ASA34001
PowerBass Class-A/B Mono Amplifier with 400 Watt High Efficiency - ASA34001
ASA34001
- 400 Watt High Efficiency Class A/B Design
- 2-OHM Stable Mono Block Amplifier
- PWM MOSFET Power Supply
- Low Level RCA Input/Low Level RCA Pass Through Output
- Remote Soft Delay Turn On/Off Circuit
- Variable Low Pass Electronic Crossover
- Variable 12dB Bass Boost EQ
- Variable Gain Control
- Wired Secondary Remote Gain Control Included
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
- Switchable Logo Back Lighting

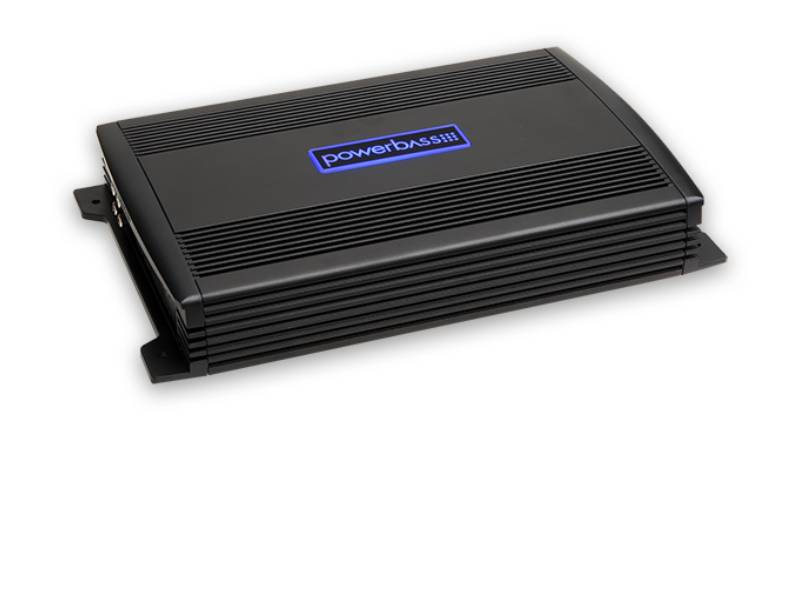

ASA3-400.1 400W RMS @ 2Ω MONO BLOCK CLASS A/B AMPLIFIER
Our A/B Class mono block amplifiers combine our new clean low profile design that still has all the necessary features built into an economical package that puts power and control at your command. Features like a MOSFET power supply, RCA pre-amp out, and variable LPF electronic crossover make these ideally suited to add some punch to any system.
The ASA3-400.1 mono subwoofer amp is a great choice when your're looking to pound out the bass. With 400 watts, there's plenty of juice on tap to power our S or M Series single 4-ohm woofers.
Wire a pair of 4-ohm woofers in parallel and the ASA3-400.1 will kick out a solid 400 watts. Need more power, then step up to the ASA3-600.1. Both amps are stable to 2-ohms and come complete with a wired remote controller.
Specifications | |
---|---|
Selectable Subwoofer EQ: | 0-18 dB Gain @ 45Hz |
Variable Subsonic Freq: | N/A |
Inputs: | RCA Input/RCA Pass-Through Output |
Equalization Boost/Cut: | 0 - 18 dB @ 45 Hz |
Power Supply: | Unregulated PWM |
4-ohm Mono Power: | N/A |
4-ohm Power: | 200 watts x 1 |
1-ohm Mono Power: | N/A |
2-ohm Power: | 400 watts x 1 |
Subwoofer EQ Frequency: | 45 Hz |
Variable Subwoofer EQ: | 0 - 18 dB |
Low-Pass Crossover Freq: | 40 Hz - 250 Hz |
High-Pass Crossover Freq: | N/A |
Peak Power: | 800 watts |
Crossover Slope: | 12 dB |
Dimensions (in Inches): | 13.7" x 8.3" x 2.3" |
Input Sensitivity: | 0.25 V - 6.0 V |
S/N Ratio: | >94 dB |
Strapped Output Power @ 2ohms: | N/A |
Output Power (14.4 V) @ 4 ohm: | 200 watts x 1 |
Output Power (14.4 V) @ 2 ohm: | 400 watts x 1 |
Output Power (14.4 V) @ 1 ohm: | N/A |
Channels (mono): | 1 |
Frequency Response: | 20 Hz - 22 kHz |
