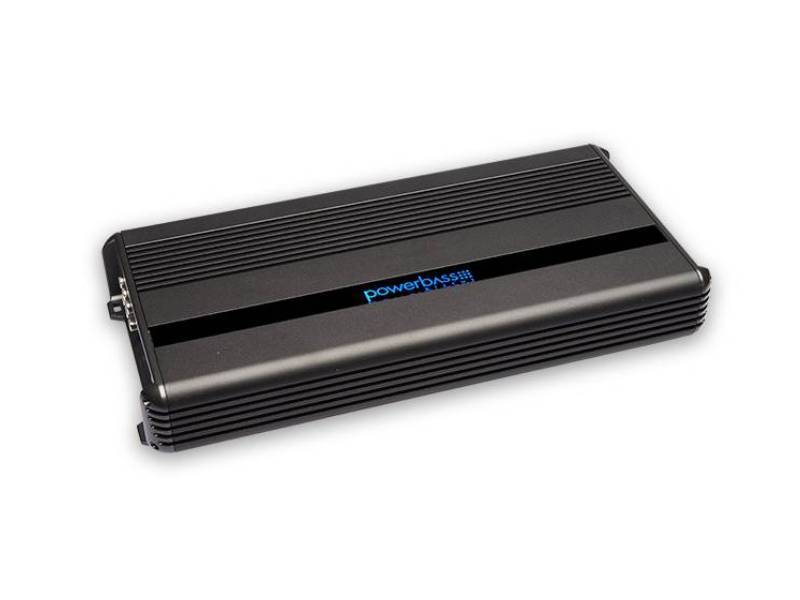

PowerBass 5 Channel Compact Amplifier - XMA5900IR
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping
Price$1,229.99
Savings$205.00
Our Price $1,024.99 CAD

Or as low as $179.87/month over 6 months. Apply Now


Availability
Call for availability

Literature
  • 1,600 Watt High Efficiency Full-Range Class D Design
  • 2-OHM Stable Five Channel Amplifier
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • Balanced RCA Inputs
  • Auto Turn On/Off
  • Remote Soft Delay Turn On/Off Circuit
  • 40 Click Variable Detente High/Low Pass Electronic Crossover
  • 40 Click Variable Detente Bass Boost @ 45 Hz
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output

200W x 2 + 800W x 1 RMS 5-CHANNEL FULL RANGE CLASS D COMPACT AMPLIFIER

PowerBass is proud to introduce our newest compact amplifier series, the Xtreme Mini Amplifier (XMA). As today’s vehicles become smaller they present a challenge to find a place for a big amplifier with big power output. The new XMA amplifiers are ideal for tight installations making it possible to put this series in places other amplifiers can’t go.

The XMA amplifiers carry on the tradition of looking good and sounding great while taking up less space than any other amplifier we have ever offered – and smaller than most amps available from the majority of our competitors’ at the same output levels. High efficiency FRD (Full Range Digital) technology allows these amplifiers to operate at well over 85% efficiency.

Limited space no longer means sacrificing great sound with the new PowerBass XMA Amplifiers.

The XMA Series represents the very latest in Class D amplifier technology. It uses the new IR® (International Rectifier) platform which has been under development for the past several years. IR®, a leader in PWM circuit design, has worked in conjunction with PowerBass engineers to produce more stable power output, minimal RF interference and improved sound quality.

The benefits of this cooperative effort are many and include improved temperature, frequency, voltage regulation and drive capability to name a few. The result to the user is a all around improved product that will provide years of listening enjoyment.

Specifications
Selectable Subwoofer EQ: 0-18dB Gain @ 45Hz
Variable Subsonic Freq: N/A
Inputs: 3 Pairs RCA (speaker level compatible)
Subwoofer Frequency Range: 10 Hz - 250 Hz
Power Supply:Unregulated PWM
Height: 2.0"
Width: 7.1"
Depth: 14.7"
4-ohm Mono Power: 400 watts x 2 + 500 watts x 1 (4-ohm)
4-ohm Power: 100 watts x 4 + 500 watts x 1
1-ohm Mono Power: N/A
2-ohm Power: 200 watts x 4 + 800 watts x 1
Subwoofer EQ Frequency: 45 Hz
Variable Subwoofer EQ: 0 - 18 dB
Low-Pass Crossover Freq: 25 Hz - 250 Hz
High-Pass Crossover Freq: 50 Hz - 350 Hz
Peak Power: 3200 watts
Crossover Slope: 12 dB
Dimensions (in Inches): 14.7" x 7.1" x 2.0"
Input Sensitivity: 0.25 V - 10.0 V
S/N Ratio: >90 dB
Total Harmonic Distortion: 0.04% at Rated Power
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 100 watts x 4 + 500 watts x 1
Output Power (14.4 V) @ 2 ohm: 200 watts x 4 + 800 watts x 1
Output Power (14.4 V) @ 1 ohm: N/A
Channels (mono): 5
Frequency Response: 10 Hz - 40 kHz
