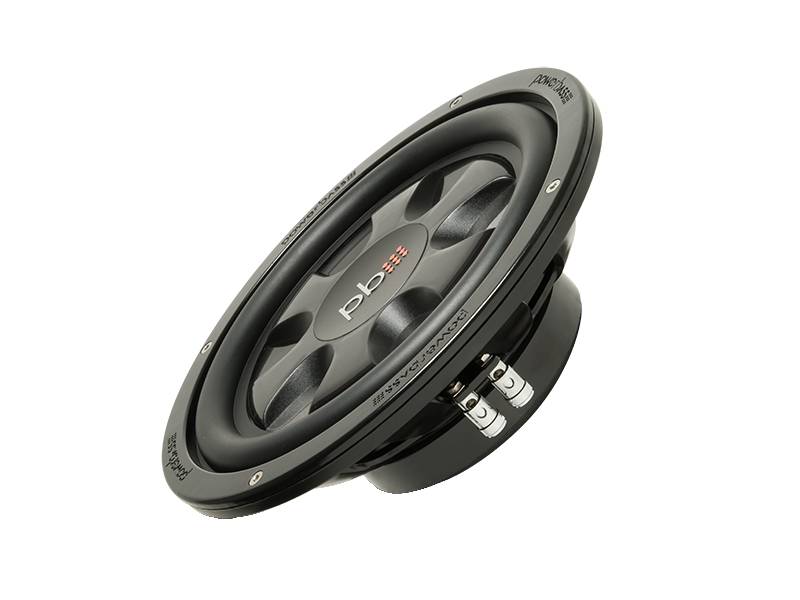

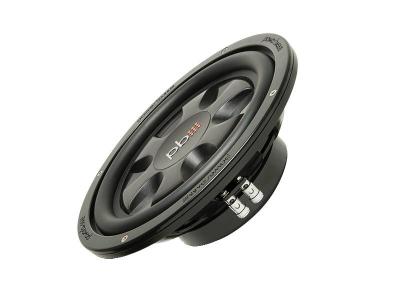

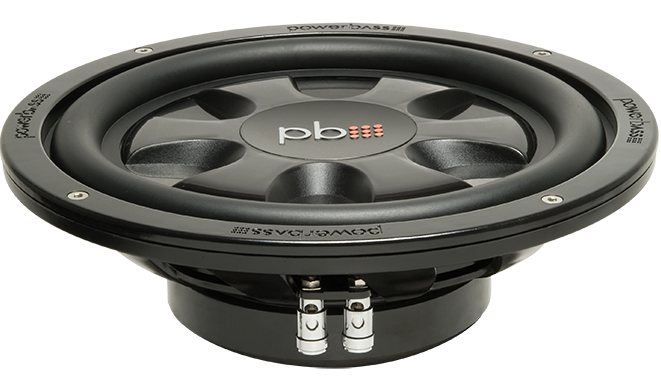

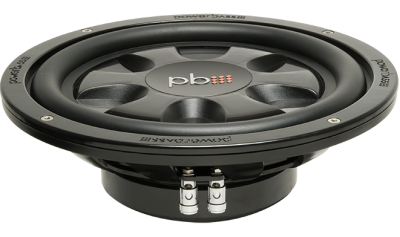

PowerBass Thin Mount 10 Inch Dual 4-Ohm Subwoofer - S10TD

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping *
Our Price $219.99 CAD

Or as low as $38.60/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature
  • Thin Mount 10" Dual 4-Ohm Subwoofer
  • 275 watt RMS/550 Watts Max
  • Single Piece Custom Injected Molded Cone
  • Large Roll Rubber Surround
  • 2" Vented KSV Voice Coil Former
  • Perimeter Aero Voice Coil Venting
  • Poly-carbonate/Glass Fiber Composite Turbine Basket
  • Super Shallow 3.25" Mounting Depth
  • Chrome Push Terminals
  • Optimally Designed for Small Sealed Enclosures

S-10TD 10" SHALLOW MOUNT SUBWOOFER

Our new Thin Woofers are only 3.25" deep but don't let its lean size fool you, these woofers are big on bass. We gave our engineers the difficult task of building a thin woofer that was up to the PowerBass reputation of great performance at an exceptional value.

Starting with our proprietary poly-carbonate/glass fiber composite frame, we built a basket that is stronger then steel and lighter then cast aluminum. Our unique one piece cone is another break through in woofer technology, more durable and stiffer then paper, this injected molded cone is able to withstand the abuse that comes from delivering deep bass in a small enclosure.

By adding a tough wide roll rubber surround and 2-inch vented voice coil, we were able to develop a woofer that has the ability to play loud in small places. The PowerBass Thin Woofer makes true bass a reality.

Specifications
Nominal Impedance: Dual 4-ohm
BL: 16.41
Inputs: Dual Coil
Subwoofer Frequency Range: 33 Hz - 400 Hz
Voice Coil Size: 2"
Material: Injection molded Polypropylene
Magnet Size: 116 oz
Motor Structure: 116 oz
Cutout Diameter: 9 3/16" (233.0mm)
Mounting Depth: 3.25 in
Xmax: 6.8 mm
Spl: 90 dB
No: 0.109%
Qts: 0.804
Qes: 0.93
Qms: 5.8
Mms: 166.4 g
Cms: 111.4 uM/N
Vas: 20.86 Ltr
SD: 363 sqCM
Fs: 37 Hz
Test Impedance: 6.3-ohms
VC Impedance: 4-ohm + 4-ohm
Size: 10 in
Sensitivity: 90 dB
Frequency Response: 33 Hz - 400 Hz
Voice Coil Size: 2 in
Power Handling (RMS/Peak): 275 / 550 watts
