Project Audio Manual turntable RPM 5 Carbon (n/c) High-Gloss Red - PJ50435438
Project Audio Manual turntable RPM 5 Carbon (n/c) High-Gloss Red - PJ50435438
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

Availability
Out of stock online. Call for availability

Availability
Out of stock online. Call for availability

Literature

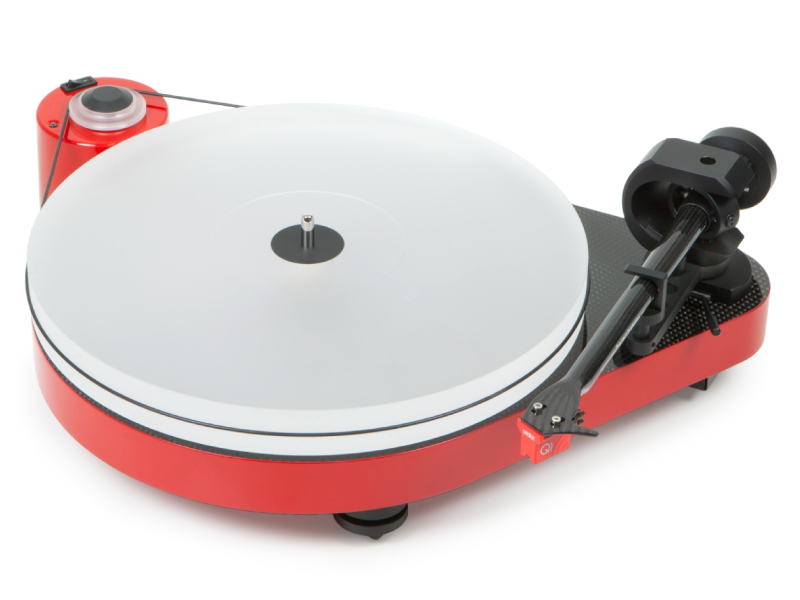

Manual turntable with 9'' Evo tonearm

Outboard AC Motor & Acrylic Platter

RPM 5 Carbon utilises a radical concept with a lot of innovations, that originate from its big brother RPM 9 Carbon: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. The classy 9“ Evo tonearm, which is made from carbon fibre is suitable for any high-quality MM or MC cartridge. A TPE-damped counterweight eliminates unwanted resonances.

The RPM 5 Carbon is available with or without Ortofon 2M-Silver cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.

Features

  • Precision belt drive using free-standing synchronous motor
  • Ultra-precision DC-driven AC generator motor power
  • Inverted platter bearing with ceramic ball
  • Acoustical inert acrylic platter
  • 9” cc EVO tonearm made from carbon
  • Counterweight with TPE damping
  • Adjustable aluminium tip-toe feet
  • Available with or without Ortofon Quintet red cartridge
  • Three high-gloss colours (black, red, white)
  • Lid available as an option

In the box:

  • RPM 5 Carbon (with or without Ortofon 2M-Silver)
  • Connect it E Phono Cable
  • Record clamp
  • Adapter for 7“ singles
  • Power supply
Specifications
Weight8.0 kg net
Dimensions430 x 150 x 323 mm (WxHxD)
Power consumption5 watt max / < 0,5 watt standby
Power connection110/240 Volt - 50 or 60 Hz
Included accessories15 volts DC / 500 mA power supply
Tracking force0 - 25 mN
Overhang18 mm
Effective arm mass8 g
Effective arm length230 mm
Tonearm9” CC EVO carbon
Signal to noise73dB
Speed drift33: +/- 0.12% I 45: +/- 0.10%
Wow & flutter33: +/- 0.17% I 45: +/- 0.08%
Mains bearingStainless steel axle with ceramic ball
Platter300 mm acrylic
Drive principleBelt drive
Speed33, 45 (manual speed change)
