Kenwood Digital Multimedia Receiver - DMX1037S
Price | $1,799.00 |
Savings | $101.00 |
Our Price |
$1,698.00 CAD |
Or as low as $145.99/month over 12 months. Apply Now
Features
- 10.1" High Definition Monitor with Capacitive Touch Panel
- Floating Panel Mechanism with 3-way Position Adjustment
- Android Auto™ & Android Auto™Wireless
- Wired and Wireless Apple CarPlay™
- High-Resolution Audio
- Wireless Mirroring for Android
- 4 Camera Inputs
- HD Front/Rear Camera Ready
- Built-in Bluetooth, HD Radio & Wi-Fi
- 3 Preouts 4V

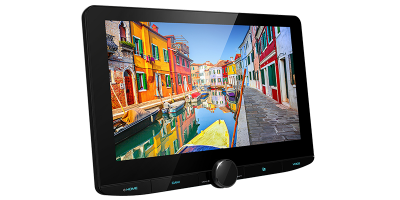

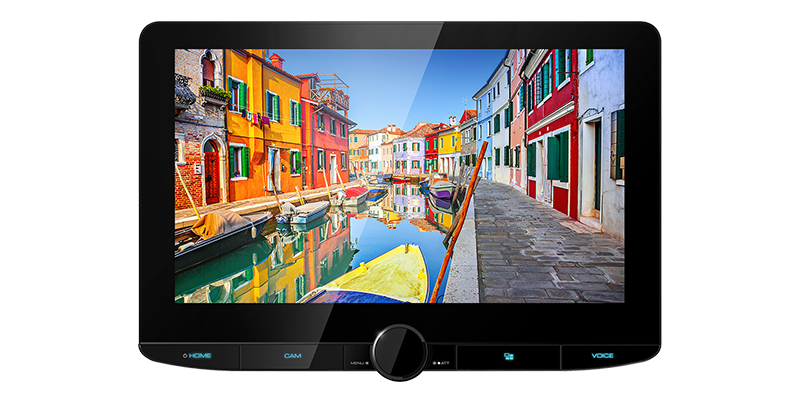

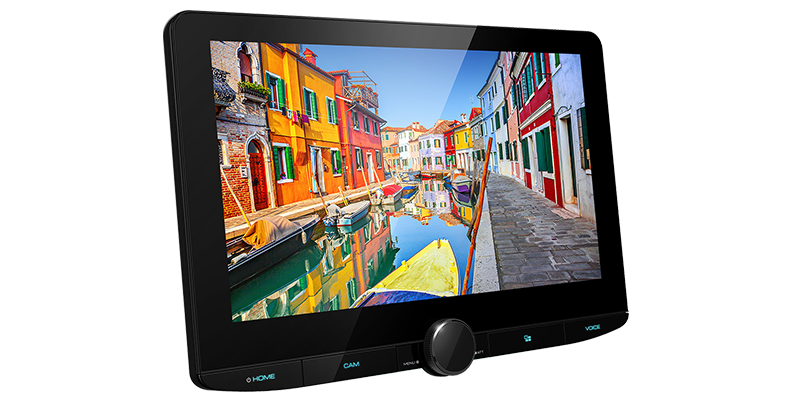

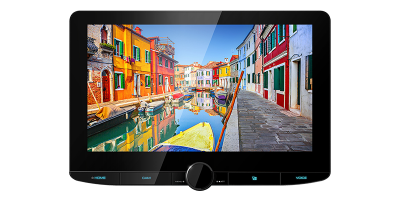

INTRODUCING A REVOLUTIONARY 10.1 INCH HD DISPLAY
Large 10.1 inch HD display
Provides room for more information that is large and easy to see with just a glance.
High Definition
Overwhelming Power of Expression
10.1" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.
BONDED OPTICAL DISPLAY
VIVID COLORS WITH HIGH CONTRAST
Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.
WIDER VIEWING ANGLE
BEAUTIFUL FROM ANY SEAT
The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.

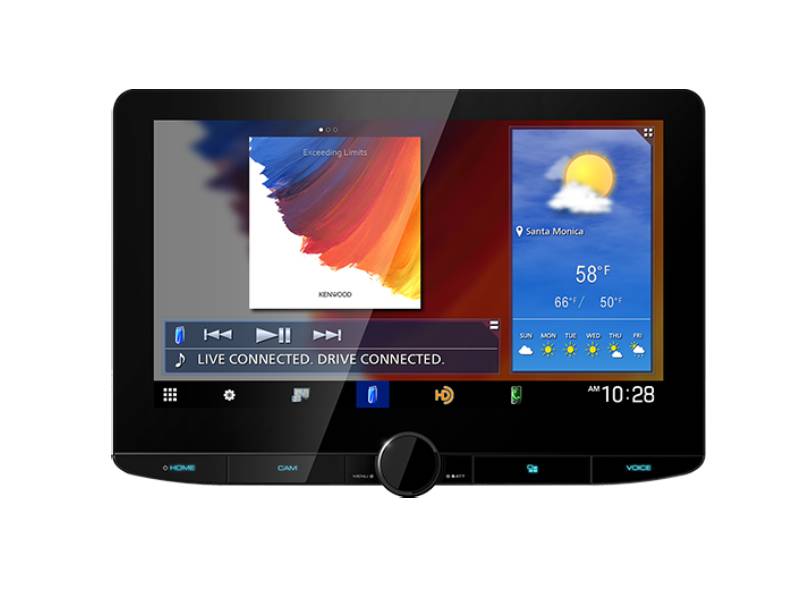

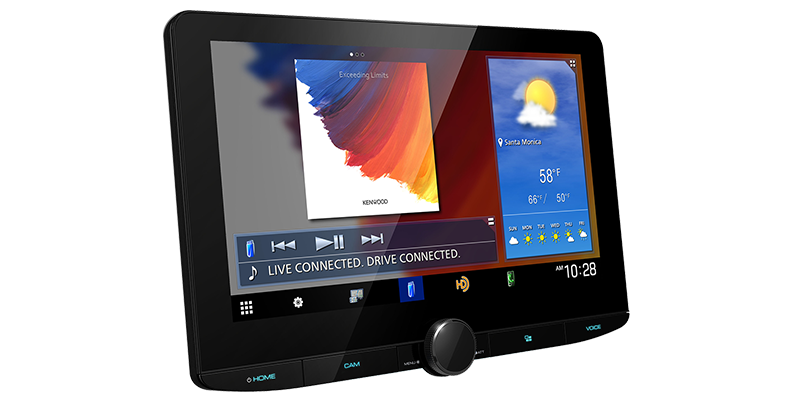

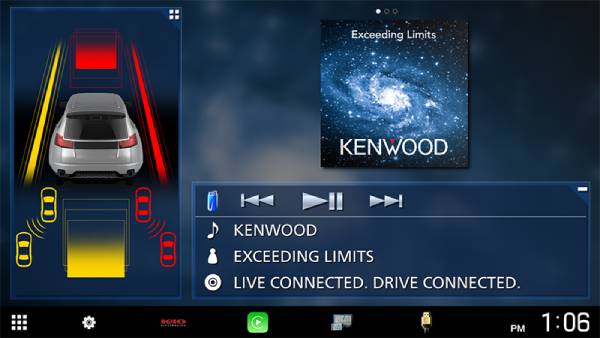

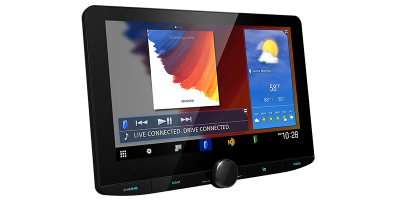

DRIVING WIDGET HOME SCREEN
The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

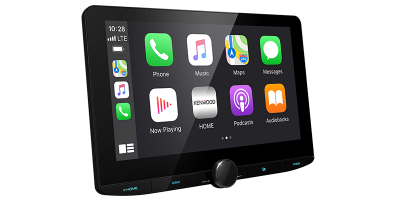

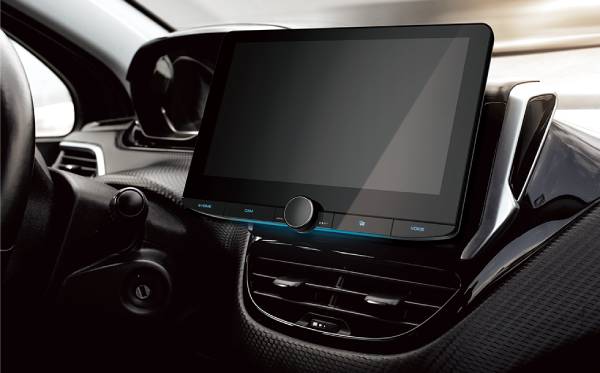

FLOATING PANEL MECHANISM WITH 3-WAY POSITION ADJUSTMENT
Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
- Forward / Backward: 13/16"
- Up / Down: 1-9/16"
- Tilt: -10°/ +45°
Smartphone Connectivity

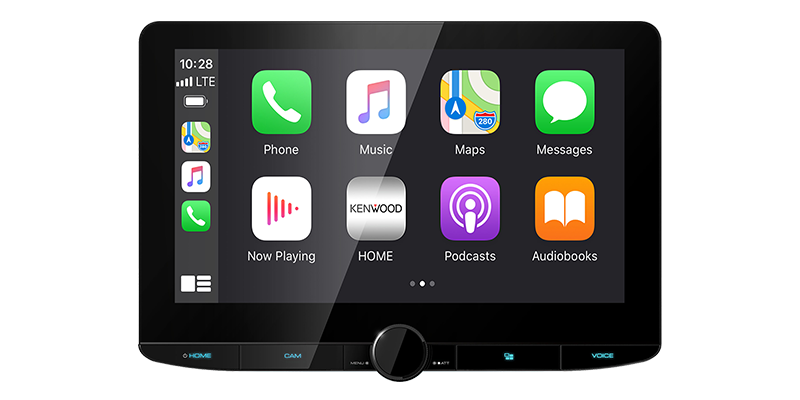

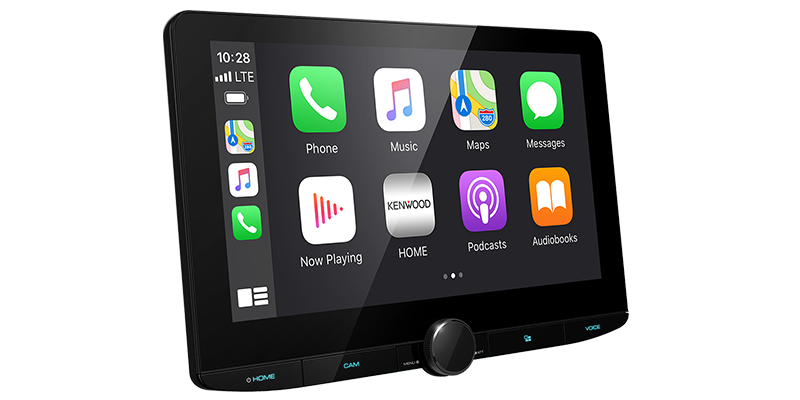

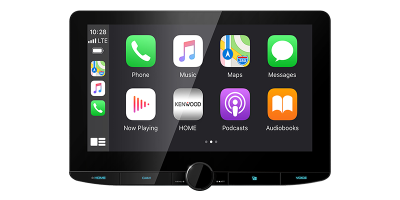

Safe, Smart and Comprehensive Control with Apple CarPlay™
Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps and Waze are also supported.
New KENWOOD Wi-Fi receivers now support Apple CarPlay™ wirelessly (compatible phone required).

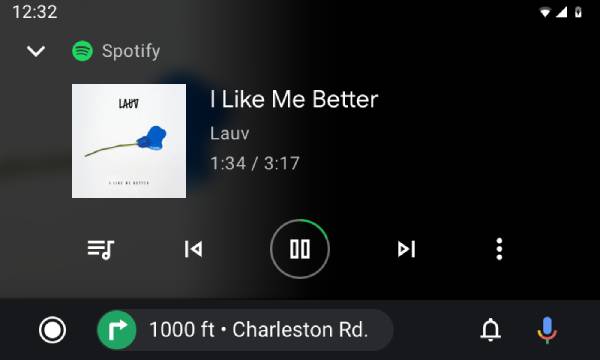

Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. New KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).
To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
HDMI Input
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1" monitor. KCA-HD100 optional HDMI cable sold separately.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Control the Receiver from Your Smartphone with the KENWOOD Remote App S
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
KENWOOD Portal App
Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper
The Best Audio Experience
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Playable FULL HD Video and FLAC Files
You can play back from USB devices audio and video files compressed in various formats.
USB sources are available on rear monitor via video output.
The powerful USB provides max 1.5A quick charge for selected Android and 1.0A charge for iPhone.
Safe Driving
ENHANCED VEHICLE INTEGRATION
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).

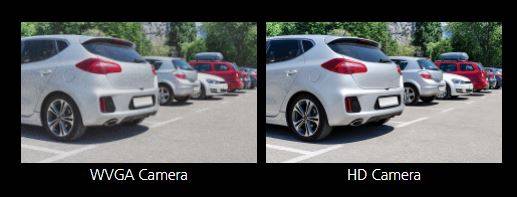

HD Front / Rear Camera Input
The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.

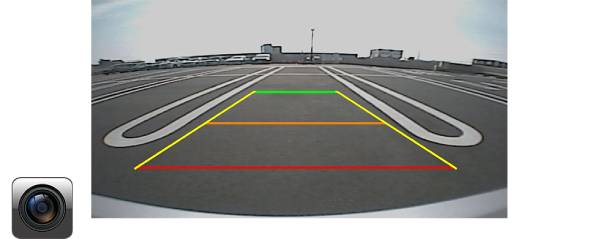

Rear View Camera Input with Parking Guide Lines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

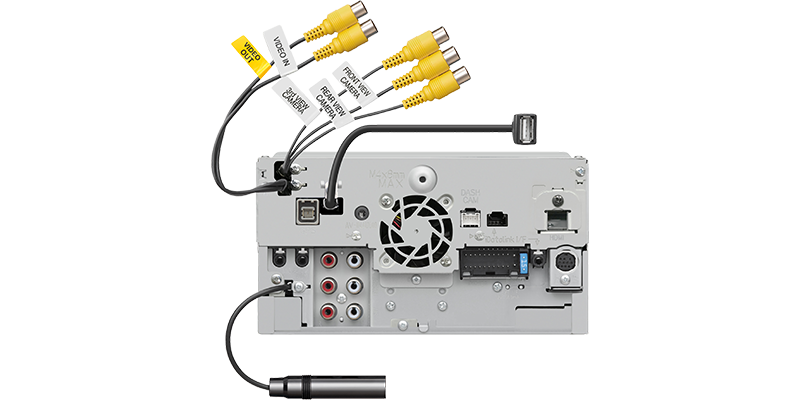

4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

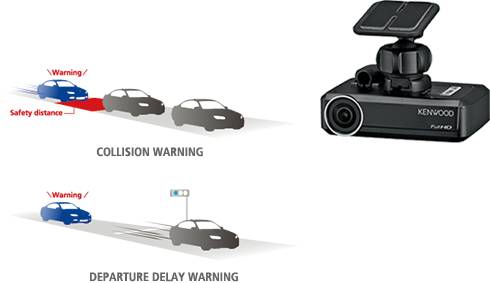

Dash Cam Link Ready
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
Additional Features
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
Remote Control (Optional)
This receiver can be operated using the optional remote control KNA-RCDV331.
Main Unit | |
---|---|
Monitor Section | 10.1 inches(diagonal) wide |
W x H | 223.7 x 125.8 (mm), 8-13/16 x 4-15/16 (inch) |
Display system | AAS LCD panel |
Drive system | TFT active matrix system |
Number of pixels | 2,764,800 |
Number of pixels | 1280H x 720V x RGB |
Effective pixels | 99.99% |
Pixel arrangement | RGB striped arrangement |
Back lighting | LED |
USB Standard | USB2.0 High Speed |
File System | FAT 16/32, exFAT, NTFS |
Maximum Power Supply Current | DC5V=1.5A |
D/A Converter | 24/32Bit |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / DSD / Vorbis |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
Frequency response 192k Sampling | 20 - 88,000 Hz |
96k Sampling | 20 - 44,000 Hz |
48k Sampling | 20 - 22,000 Hz |
44.1k Sampling | 20 - 20,000 Hz |
Total harmonic distortion 1kHz | 0.010% |
Signal to Noise ratio | 98.5dB |
Dynamic range | 89dB |
Mode | Sink |
Copyright protection | HDCP2.2 |
Touch Control | UIBC |
IEEE Standard | 802.11 a/b/g/n/ac |
Frequency Range | Dual Band ( 2.4GHz / 5GHz ) |
Channels | Auto(1-11ch) |
Channels | Auto(149,153,157,161ch) |
Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / |
Transfer rates (MAX) | 11g: 54 Mbps / 11n: 300 Mbps / |
Transfer rates (MAX) | 11ac: 867 Mbps |
Output Power2.4GHz/SISO | 11b:12dBm |
Output Power2.4GHz/SISO | 11n(20MHz):2dBm |
Output Power 5GHz/SISO | 11a:6dBm |
Output Power 5GHz/SISO | 11n(20MHz):6dBm |
Output Power 5GHz/SISO | 11ac(20MHz):6dBm |
Output Power5GHz/MIMO | 11n(20MHz):9dBm |
Output Power5GHz/MIMO | 11ac(20MHz):9dBm |
Technology | Bluetooth Ver5.0 |
Frequency | 2.402 2.480 GHz |
RF Output Power (E.I.R.P.) | 4dBm (MAX), Power Class 2 |
Maximum Communication range | Line of sight approx.10m(32.8ft) |
Audio Codec | SBC / AAC |
Multi Profile Support | Multi Profile |
Profile | HFP (V1.7) (Hands Free Profile) |
Profile | SPP (Serial Port Profile) |
Profile | A2DP (Advanced Audio Distribution Profile) |
Profile | AVRCP (V1.6) (Audio/Video Remote Control Profile) |
Profile | PBAP (Phonebook Access Profile) |
Connector Type | Type A |
Input Resolution | VGA (640x480p 59.94Hz/60Hz) |
Input Resolution | 480p (720x480p 59.94Hz/60Hz) |
Input Resolution | 720p(1280x720p 59.94Hz/60Hz) |
Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM |
BAND | 13Band |
frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
SLOPE | -6/-12/-18/-24[dB/Oct.] |
LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
SLOPE | -6/-12/-18/-24[dB/Oct.] |
HIGH PASS FILTER frequency | - |
SLOPE | - |
Band PASS FILTER frequency | - |
SLOPE | - |
LOW PASS FILTER frequency | - |
SLOPE | - |
Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
Gain | -8 to 0dB |
Subwoofer Level | -50 to 10dB |
Frequency Range | 87.9MHz - 107.9MHz |
(Frequency step) | (200kHz) |
Frequency Response | 20Hz - 20kHz |
S/N | 80dB (STEREO) |
Frequency Range | 530kHz - 1700kHz |
(Frequency step) | (10kHz) |
Frequency Response | 40Hz - 15kHz |
S/N | 80dB (STEREO) |
Frequency Range | 87.9MHz - 107.9MHz |
(Frequency step) | (200kHz) |
Usable sensitivity | 7.3dBf (0.7V) /75 |
Frequency response | 30Hz - 15kHz |
S/N (dB) | 70dB (MONO) |
Selectivity | 80dB ( |
Stereo separation | 45dB (1kHz) |
Frequency Range | 530kHz - 1700kHz |
(Frequency step) | (10kHz) |
Usable sensitivity | 30dB (31V) |
Color system of external video input | NTSC/PAL |
External audio max input level (Mini jacks) | 2 V / 25 kOhms |
Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
Audio Output level (Mini jacks) | 0.9 V / 10 kOhms |
Maximum Power Output (Front&Rear) | 50Wx4 |
Typical Power Output (Front&Rear) | Full Bandwidth Power |
Typical Power Output (Front&Rear) | (at less than 1%THD) |
Typical Power Output (Front&Rear) | 22Wx4 |
Output frequency band | 20 - 88,000Hz |
Preout level (V) | 4V / 10kOhms |
Preout impedance () | =< 300 Ohms |
Speaker Impedance () | 4-8 Ohms |
General | 12V DC Car Battery |
Installation Dimensions WxHxD | 178 × 100 × 155 (mm) |
Installation Dimensions WxHxD | 7 × 3-15/16 × 6-1/8(inch) |
WeightMain unit | 3.25 kg |
WeightMain unit | 7.28lbs. |
