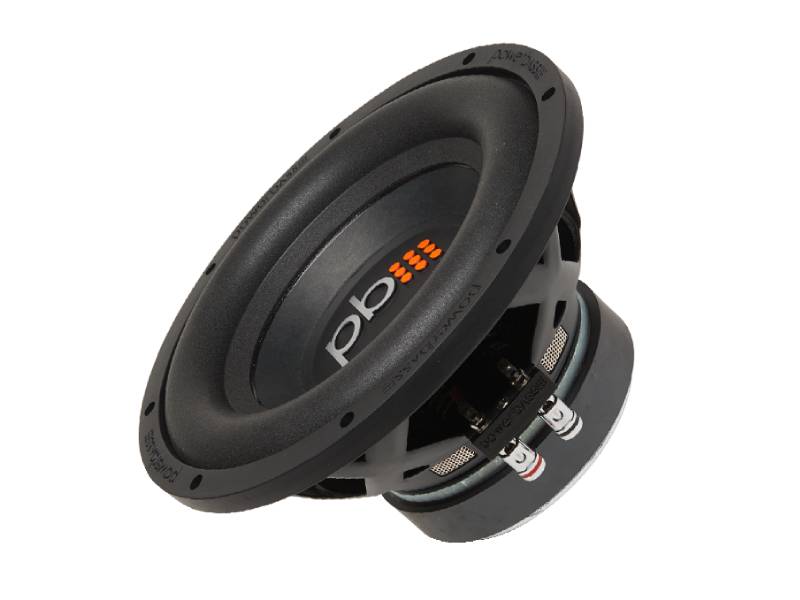

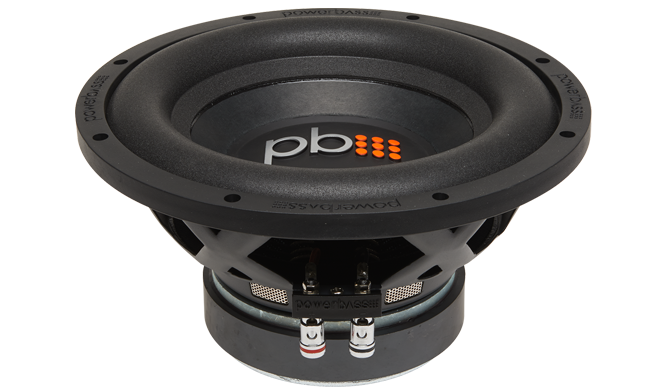

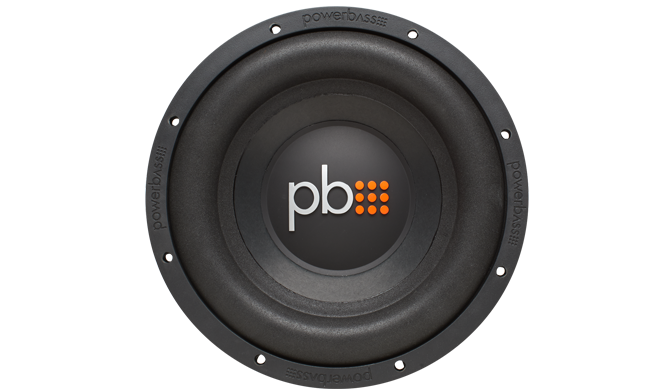

PowerBass 10 Inch Single 4-Ohm Subwoofer - S1004
PowerBass 10 Inch Single 4-Ohm Subwoofer - S1004
S1004
- 10" Single 4-Ohm Subwoofer
- 275 watt RMS/550 Watts Max
- Proprietary DDC Coated Paper/Wool Cone
- Pressed 4-Layer Large Roll Foam Surround
- 2" Vented BASV Voice Coil Former
- Perimeter Aero-Vent Voice Coil Cooling Vents
- Non Resonance DDC Coated Stamped Steel Basket
- Rubber Mounting Gasket/Trim Ring
- Chrome Push Terminals
- Optimally Designed for Both Small Sealed or Ported Enclosures
S-1004 10" SUBWOOFER BIG BASS SOUND AT AN AFFORDABLE PRICE
Our improved S-Series subwoofers bring value to a whole new level. This year we rounded out the line by adding a couple of 8-inch subwoofers. You will be impressed with the oversized motor structure for high-power handling and greater reliability during heavy hitting bass passages.
PowerBass S-Series woofers featuring a 4-layer wool/paper cone now sport a treated non-resonant finished, stamped steel basket that is custom tooled with our distinctive X design. A 2” BASV voice coil former (1.5" on the 8") is used on the 10 and 12-inch models and like the entire Autosound range, we also offer a Large Roll foam surround for precise linear movement of the cone, which equals loud bass.
The S Series subwoofers are well-suited for small sealed or ported enclosures and use dual 4-ohm and single 4-ohm voice coils for multiple bass applications. Now more than ever, our S-Series woofers provide lots of value without sacrificing hard-hitting performance.
Specifications | |
---|---|
Nominal Impedance: | Single 4-ohm |
BL: | 11.6 |
Inputs: | Single Coil |
Subwoofer Frequency Range: | 33 Hz - 500 Hz |
Voice Coil Size: | 2 in |
Material: | Pressed Wool / Paper |
Sensitivity (1W / 1M): | 86 dB |
Motor Structure: | 116 oz |
Cutout Diameter: | 9 1/8 (230.1mm) |
Mounting Depth: | 5.25 in |
Xmax: | 9 mm |
Spl: | 86.6 dB |
No: | 0.29% |
Qts: | 0.4 |
Qes: | 0.43 |
Qms: | 5.12 |
Mms: | 94.2 g |
Cms: | 270 uM/N |
Vas: | 43.8 Ltr |
SD: | 330.06 sqCM |
Fs: | 33.5 Hz |
Test Impedance: | 3.2-ohms |
VC Impedance: | 4-ohm |
Size: | 10 in |
Sensitivity: | 86 dB |
Frequency Response: | 33 Hz - 500 Hz |
Voice Coil Size: | 2 in |
Power Handling (RMS/Peak): | 275 / 550 watts |
