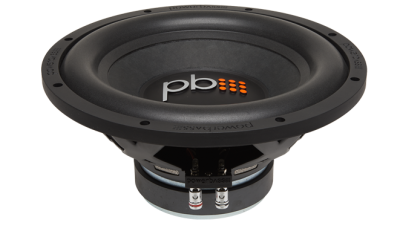

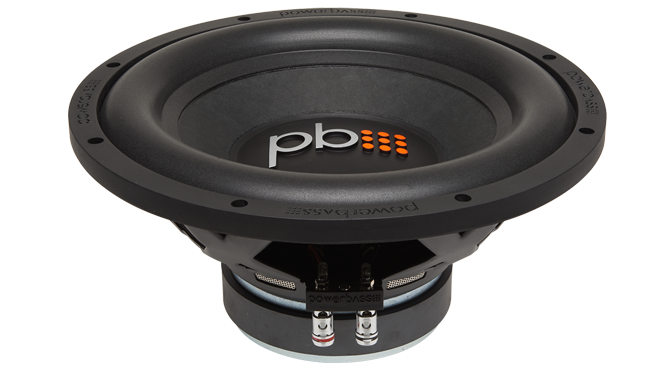

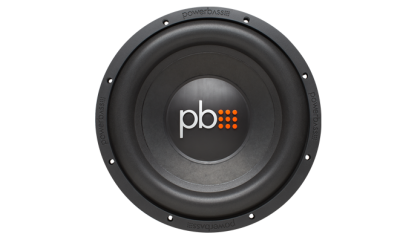

PowerBass 12 Inch Dual 4-Ohm Subwoofer - S1204D

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping *
Our Price $169.99 CAD

Or as low as $29.83/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature
  • 12" Dual 4-Ohm Subwoofer
  • 300 watt RMS/600 Watts Max
  • Proprietary DDC Coated Paper/Wool Cone
  • Pressed 4-Layer Large Roll Foam Surround
  • 2" Vented BASV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Non Resonance DDC Coated Stamped Steel Basket
  • Rubber Mounting Gasket/Trim Ring
  • Chrome Push Terminals
  • Optimally Designed for Both Small Sealed or Ported Enclosures

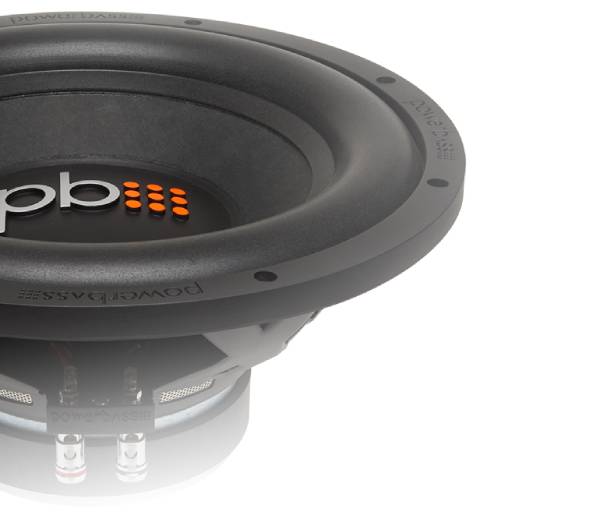

S-1204D 12" SUBWOOFER BIG BASS SOUND AT AN AFFORDABLE PRICE

Our improved S-Series subwoofers bring value to a whole new level. This year we rounded out the line by adding a couple of 8-inch subwoofers. You will be impressed with the oversized motor structure for high-power handling and greater reliability during heavy hitting bass passages.

PowerBass S-Series woofers featuring a 4-layer wool/paper cone now sport a treated non-resonant finished, stamped steel basket that is custom tooled with our distinctive X design. A 2” BASV voice coil former (1.5" on the 8") is used on the 10 and 12-inch models and like the entire Autosound range, we also offer a Large Roll foam surround for precise linear movement of the cone, which equals loud bass.

The S Series subwoofers are well-suited for small sealed or ported enclosures and use dual 4-ohm and single 4-ohm voice coils for multiple bass applications. Now more than ever, our S-Series woofers provide lots of value without sacrificing hard-hitting performance.

Specifications
Nominal Impedance: Dual 4-ohm
BL: 9.1
Inputs: Dual Coil
Subwoofer Frequency Range: 31 Hz - 500 Hz
Voice Coil Size: 2 in
Material: Pressed Wool / Paper
Sensitivity (1W / 1M): 88 dB
Motor Structure: 142 oz
Cutout Diameter: 11 11/16 (297.0mm)
Mounting Depth: 5.5 in
Xmax: 9.5 mm
Spl: 87.5 dB
No:0.30%
Qts: 0.5
Qes: 0.56
Qms: 4.5
Mms: 150.5 g
Cms: 175.3 uM/N
Vas: 64.9 Ltr
SD: 510.7 sqCM
Fs: 31 Hz
Test Impedance: 1.6-ohm
VC Impedance: 4-ohm + 4-ohm
Size: 12 in
Sensitivity: 88 dB
Frequency Response: 31 Hz - 500 Hz
Voice Coil Size: 2 in
Power Handling (RMS/Peak): 300 / 600 watts
