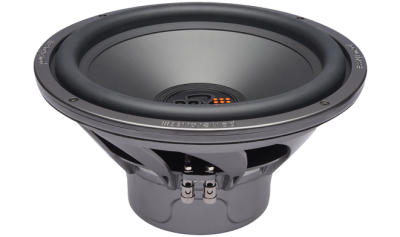

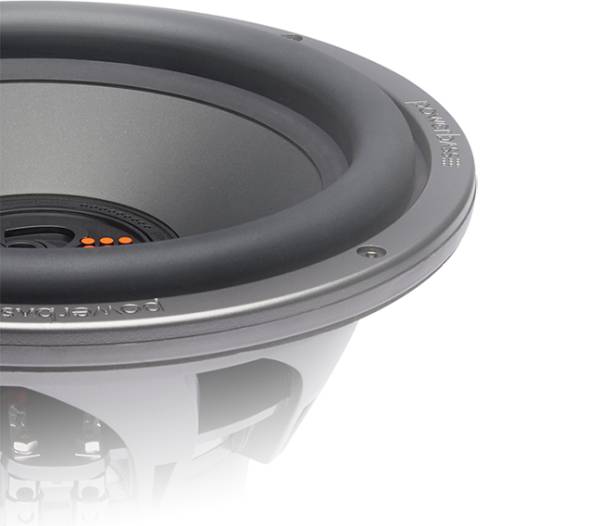

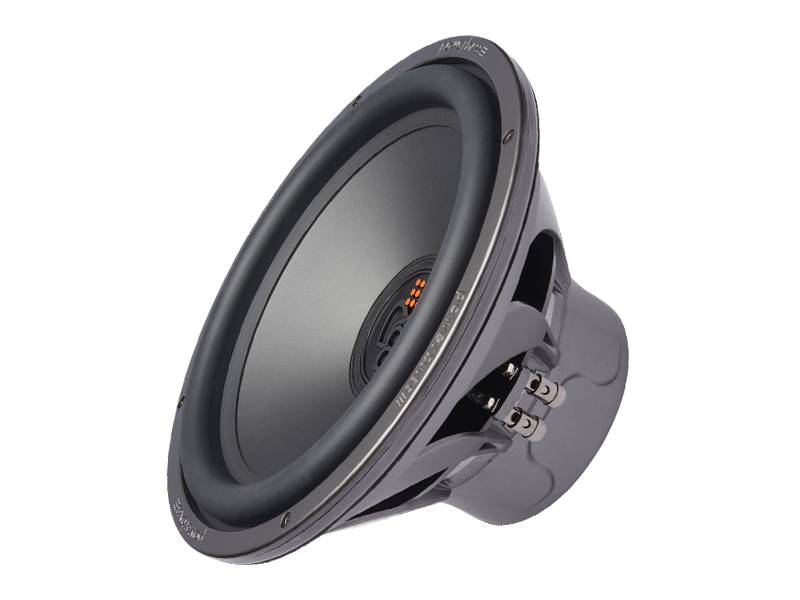

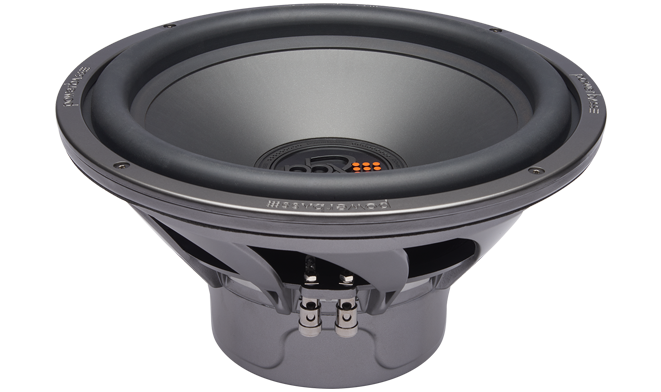

PowerBass 12 Inch Power Sports Subwoofer - XL1240DSS
Literature
- New Polycarbonate Glass Fiber Basket
- Dual 4 ohm voice coils
- Power Sports 12" Subwoofer

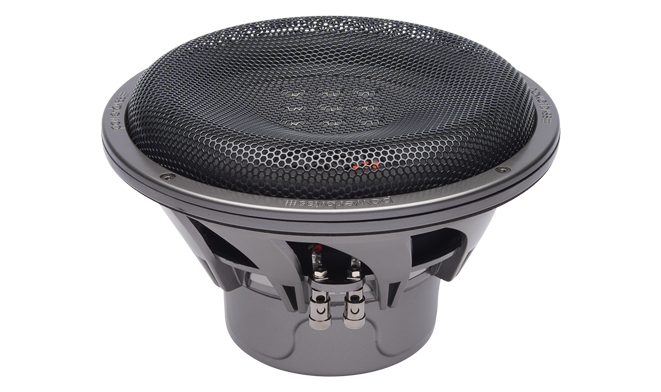

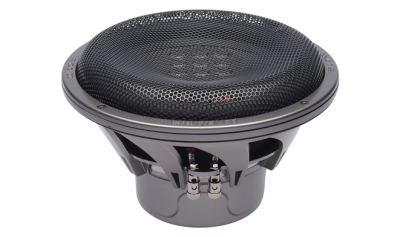

- Gun Metal powder coated aluminum grill included
- Injection Molded UV-Treated Gun Metal Polypropylene Cone
- TPO Thermoplastic Polyurethane Surround
- 2.0" KSV Voice Coil Former
- 120 oz. Motor Structure
- Insulated Tinsel Leads
- Marine Grade Spider
- 250 Watts RMS/500 Watts Max
- Designed for FREE AIR applications and Sealed Enclosures
XL-1240SS POWER SPORTS 10" SUBWOOFER DUAL 4Ω
The New XL-SS Series Subwoofers were designed for the ever-growing PowerSports market providing hard hitting bass while being able to withstand extreme harsh environments
Featuring a Gun Metal UV inhibited polycarbonate glass fiber basket & UV inhibited poly woofer cone along with a marine grade spider, the XL-SS Subwoofer delivers the best in sonic output reproduction on the trails or out in the dunes hands down.
Sit back and relax knowing that you have put your music in the engineering hands of PowerBass.
Specifications | |
---|---|
Nominal Impedance: | Dual 4-ohm |
BL: | 8.859 |
Inputs: | Dual Coil |
Subwoofer Frequency Range: | 36 Hz - 500 Hz |
Voice Coil Size: | 2 in |
Material: | Polypropylene |
Magnet Size: | 140 oz |
Sensitivity (1W / 1M): | 85.86 dB |
Motor Structure: | 39 oz |
Cutout Diameter: | 11 in |
Mounting Depth: | 5.875 in |
Xmax: | 7.9 mm |
Spl: | 85.86 dB |
No: | 0.234% |
Qts: | 0.682 |
Qes: | 0.763 |
Qms: | 6.429 |
Mms: | 172.7 g |
Cms: | 125 uM/N |
Vas: | 46.09 Ltr |
SD: | 510.7 sqCM |
Fs: | 34.3 Hz |
Test Impedance: | 1.61 ohm |
VC Impedance: | 4-ohms + 4-ohms |
Size: | 12" |
Sensitivity: | 85 dB |
Frequency Response: | 36 Hz - 500 Hz |
Voice Coil Size: | 2" |
Power Handling (RMS/Peak): | 250 / 500 watts |
