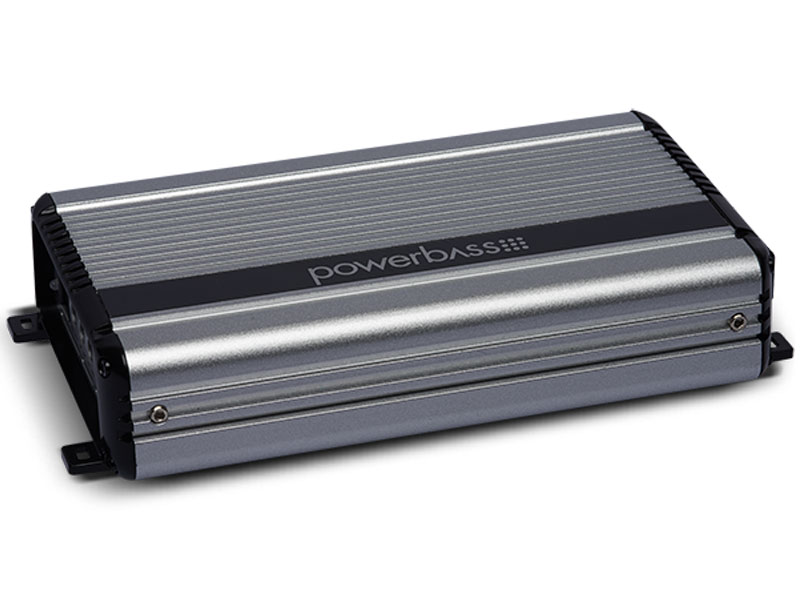

PowerBass XL-MX Series Monoblock PowerSport Amplifier - XL605DM
XL605DM
600 Watt High Efficiency Class D Design
1-OHM Stable Mono Block Amplifier
Ultra Low Current Draw
Double Sided Copper Plated PCB
Conformal Coated PC Board
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
Variable Subsonic Filter
High Current Voltage Ripple Rejection Circuitry
3.5mm AUX Input
Remote Soft Delay Turn On/Off Circuit
Variable Low Pass Electronic Crossover
Variable 12dB Bass Boost EQ
Variable Gain Control
Wired Secondary Remote Gain Control Included
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
XL-605DM 600W RMS @ 2Ω MONOBLOCK CLASS D POWERSPORT AMPLIFIER
The XL series was developed for the growing Power Sports market including UTV and Marine applications, where electronics must withstand harsh damp environments. The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and extreme temperatures.
These ultra small weather resistant amplifiers are ideal for all types of outdoor audio applications such as motorcycles, golf carts and off road vehicles. But the small size also makes these amps a great choice anywhere space is a premium.
Utilizing the latest Class D circuit design these amplifiers may be small on size but they are big on power and have a much lower current draw compared to other amplifiers with similar power output. The wrap around aluminum heatsink keeps everything running cool.
Extremely versatile, each model gives you’re a choice of low level RCA input or 3.5mm (1/8”) mini-pug Aux Input. The Aux Input allows for easy connection of portable devices such as an iPod, MP3 player or smartphone to become your source unit.
| Features | |
|---|---|
| Selectable Subwoofer EQ: | 0-18 dB Gain @ 45Hz |
| Variable Subsonic Freq: | 10 Hz - 50 Hz |
| Inputs: | RCA (speaker level compatible)/3.5mm Mini Jack Input |
| Equalization Boost/Cut: | 0 - 18 dB |
| Subwoofer Frequency Range: | 10 Hz - 250 Hz |
| Power Supply: | Unregulated PWM |
| Height: | 1.63" |
| Width: | 4.5" |
| Depth: | 8.4" |
| 4-ohm Mono Power: | 250 watts x 1 |
| 4-ohm Power: | 250 watts x 1 |
| 1-ohm Mono Power: | 600 watts x 1 |
| 2-ohm Power: | 400 watts x 1 |
| Subwoofer EQ Frequency: | 45 Hz |
| Variable Subwoofer EQ: | 0 - 18 dB |
| Low-Pass Crossover Freq: | 50 Hz - 250 Hz |
| High-Pass Crossover Freq: | N/A |
| Peak Power: | 1200 watts |
| Crossover Slope: | 24 dB |
| Dimensions (in Inches): | 8.4" x 4.5" x 1.6" |
| Input Sensitivity: | 0.25 V - 10.0 V |
| S/N Ratio: | >85 dB |
| Total Harmonic Distortion: | 0.4% at Rated Power |
| Strapped Output Power @ 2ohms: | N/A |
| Output Power (14.4 V) @ 4 ohm: | 250 watts x 1 |
| Output Power (14.4 V) @ 2 ohm: | 400 watts x 1 |
| Output Power (14.4 V) @ 1 ohm: | 600 watts x 1 |
| Channels (mono): | 1 |
| Frequency Response: | 10 Hz - 300 Hz |
