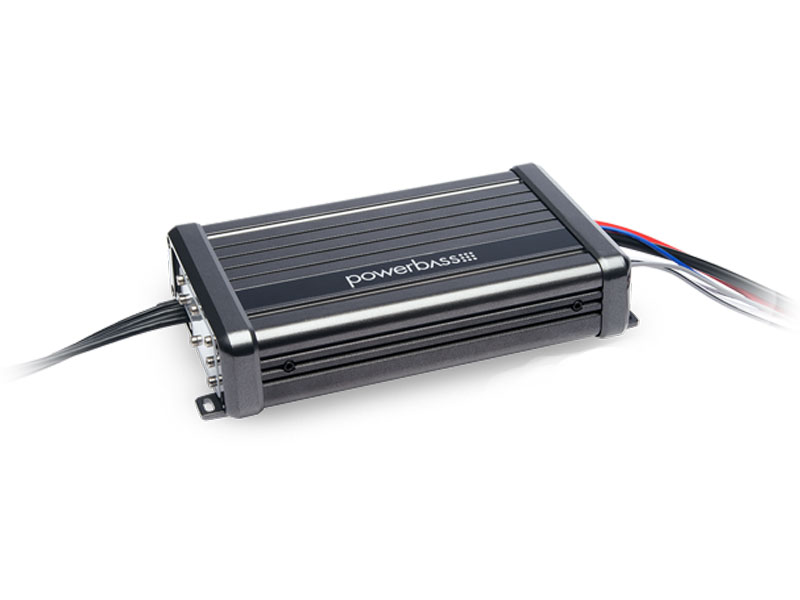

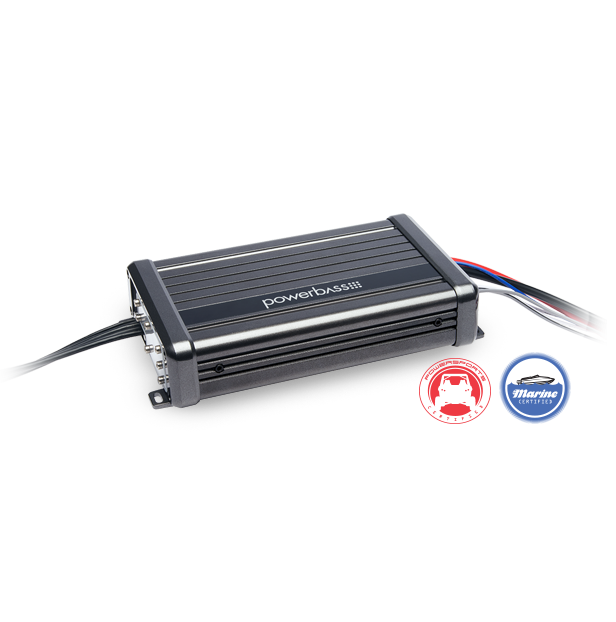

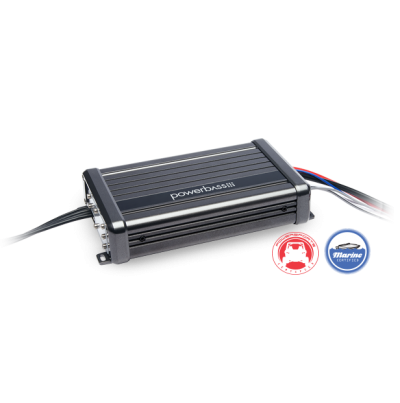

PowerBass XL-MX Series 2ch PowerSport Amplifier - XL2305MX
Authorized Dealer
Price Match Guarantee
Or as low as $140.38/month over 6 months.
PowerBass XL-MX Series 2ch PowerSport Amplifier - XL2305MX
XL2305MX
IPX67 Water Resistant Sealed Design
Aluminum Die-Cast end caps with integrated input / output connectors
1200 Watt High Efficiency Full-Range Class D Design
2-OHM Stable Stereo Amplifier
International Rectifier® Chip Set
Ultra Low Current Draw
4-Layer Copper Plated PCB
Conformal Coated PC Board
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
High Current Voltage Ripple Rejection Circuitry
3.5mm AUX Input
3.5mm AUX Output
Remote Soft Delay Turn On/Off Circuit
Variable Low/High Pass Electronic Crossover
Variable 18dB Bass Boost EQ
Variable Gain Control
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Remote Gain Control Included
XL-2305MX 1200 WATTS RMS 2-CHANNEL FULL RANGE CLASS D POWERSPORT AMPLIFIER
The XL series was developed for the growing Power Sports market including UTV and Marine applications, where electronics must withstand harsh damp environments. The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and extreme temperatures.
While the harsh environments can leave electronics in situations that water and extreme dust is a factor, the new XL-MX series amplifiers have been designed to remain completely sealed with an IPX67 Water Resistance Rating ensuring your amplifier stays dry even when your ride leaves you all wet.
These ultra small weather resistant amplifiers are ideal for all types of outdoor audio applications such as motorcycles, golf carts and off road vehicles. But the small size also makes these amps a great choice anywhere space is a premium.
Utilizing the latest Class D circuit design these amplifiers may be small on size but they are big on power and have a much lower current draw compared to other amplifiers with similar power output. The wrap around aluminum heatsink keeps everything running cool.
Extremely versatile, each model gives you’re a choice of low level RCA input or 3.5mm (1/8”) mini-pug Aux Input. The Aux Input allows for easy connection of portable devices such as an iPod, MP3 player or smartphone to become your source unit.
| Features | |
|---|---|
| Selectable Subwoofer EQ: | 0-18d B Gain @ 45Hz, Rear Ch. |
| Variable Subsonic Freq: | N/A |
| Inputs: | RCA (speaker level compatible)/3.5mm Mini Jack Input |
| Equalization Boost/Cut: | 0 - 18 dB |
| Subwoofer Frequency Range: | 10 Hz - 400Hz |
| Power Supply: | Unregulated PWM |
| Height: | 1.8" |
| Width: | 4.6" |
| Depth: | 8.5" |
| 4-ohm Mono Power: | 600 watts x 1 |
| 4-ohm Power: | 150 watts x 2 |
| 1-ohm Mono Power: | N/A |
| 2-ohm Power: | 300 watts x 2 |
| Subwoofer EQ Frequency: | 45 Hz |
| Low-Pass Crossover Freq: | 40 Hz - 400 Hz |
| High-Pass Crossover Freq: | 40 Hz - 400 Hz |
| Peak Power: | 1200 watts |
| Crossover Slope: | 12 dB |
| Dimensions (in Inches): | 8.5" x 4.6" x 1.8" |
| Input Sensitivity: | 0.25 V - 10.0 V |
| S/N Ratio: | >85 dB |
| Total Harmonic Distortion: | 0.04% at Rated Power |
| Strapped Output Power @ 2ohms: | N/A |
| Output Power (14.4 V) @ 4 ohm: | 150 watts x 2 |
| Output Power (14.4 V) @ 2 ohm: | 300 watts x 2 |
| Output Power (14.4 V) @ 1 ohm: | N/A |
| Channels (mono): | 4 |
| Frequency Response: | 10 Hz - 40 kHz |
