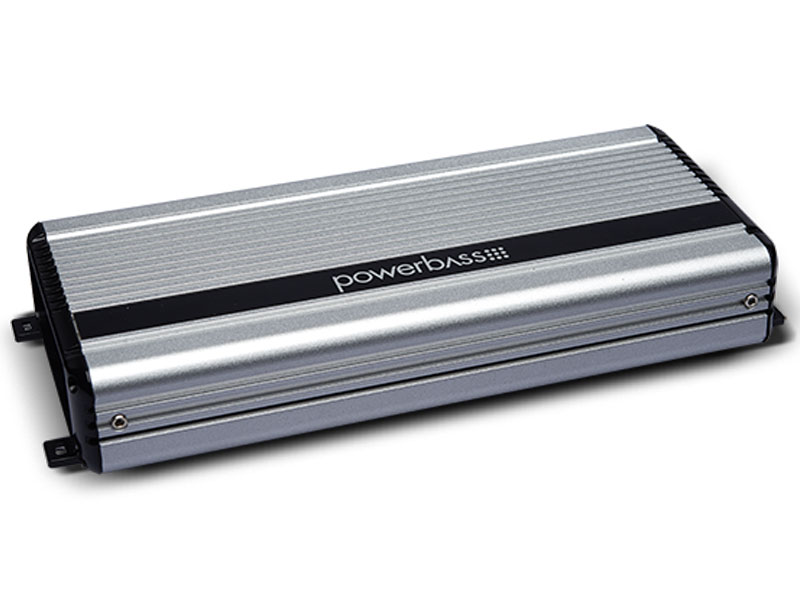

PowerBass XL-MX Series 5ch PowerSport Amplifier - XL5675M
XL5675M
990 Watt 5 Channel High Efficiency Full-Range Class D Design
2-OHM Stable Stereo Amplifier
International Rectifier® Chip Set
Ultra Low Current Draw
Double Sided Copper Plated PCB
Conformal Coated PC Board
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
High Current Voltage Ripple Rejection Circuitry
3.5mm AUX Input
Remote Soft Delay Turn On/Off Circuit
Variable Low/High Pass Electronic Crossover
Variable 18dB Bass Boost EQ
Variable Gain Control
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
The XL series was developed for the growing Power Sports market including UTV and Marine applications—where electronics must withstand harsh environments. The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and temperature extremes.
These ultra small weather resistant amplifiers are ideal for all types of outdoor audio applications such as motorcycles, golf carts and off road vehicles. But the small size also makes these amps a great choice anywhere space is a premium.

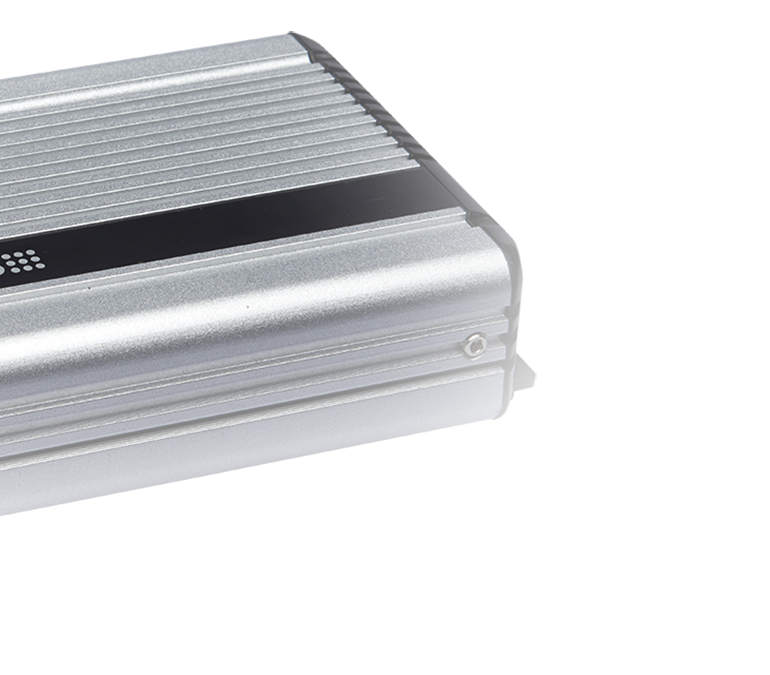

Utilizing the latest Class D circuit design these amplifiers may be small on size but they are big on power and have a much lower current draw compared to other amplifiers with similar power output. The wrap around aluminum heatsink keeps everything running cool.
Extremely versatile, each model gives you’re a choice of low level RCA input or 3.5mm (1.8”) mini-pug Aux Input. The Aux Input allows for easy connection of portable devices such as an iPod, MP3 player or smartphone to become your source unit.
| Features | |
|---|---|
| Selectable Subwoofer EQ: | 0-18d B Gain @ 45Hz, Rear Ch. |
| Variable Subsonic Freq: | N/A |
| Inputs: | RCA (speaker level compatible)/3.5mm Mini Jack Input |
| Equalization Boost/Cut: | 0 - 18 dB |
| Power Supply: | Unregulated PWM |
| Height: | 1.6" |
| Width: | 11.2" |
| Depth: | 4.5" |
| 4-ohm Mono Power: | 320 watts x 2 + 350 watts x 1 |
| 4-ohm Power: | 80 watts x 4 + 250 watts x 1 |
| 1-ohm Mono Power: | N/A |
| 2-ohm Power: | 160 watts x 4 + 350 watts x 1 |
| Subwoofer EQ Frequency: | 0 - 18 dB @ 45 Hz |
| Low-Pass Crossover Freq: | 40 Hz - 400 Hz |
| High-Pass Crossover Freq: | 40 Hz - 400 Hz |
| Peak Power: | 1980 watts |
| Crossover Slope: | 12 dB |
| Dimensions (in Inches): | 1.6" x 11.2" x 4.5" |
| Input Sensitivity: | 0.25 V - 10.0 V |
| S/N Ratio: | >85 dB |
| Strapped Output Power @ 2ohms: | N/A |
| Output Power (14.4 V) @ 4 ohm: | 80 watts x 4 + 250 watts x 1 |
| Output Power (14.4 V) @ 2 ohm: | 160 watts x 4 + 350 watts x 1 |
| Output Power (14.4 V) @ 1 ohm: | N/A |
| Channels (mono): | 5 |
| Frequency Response: | 10 Hz - 40 kHz |
