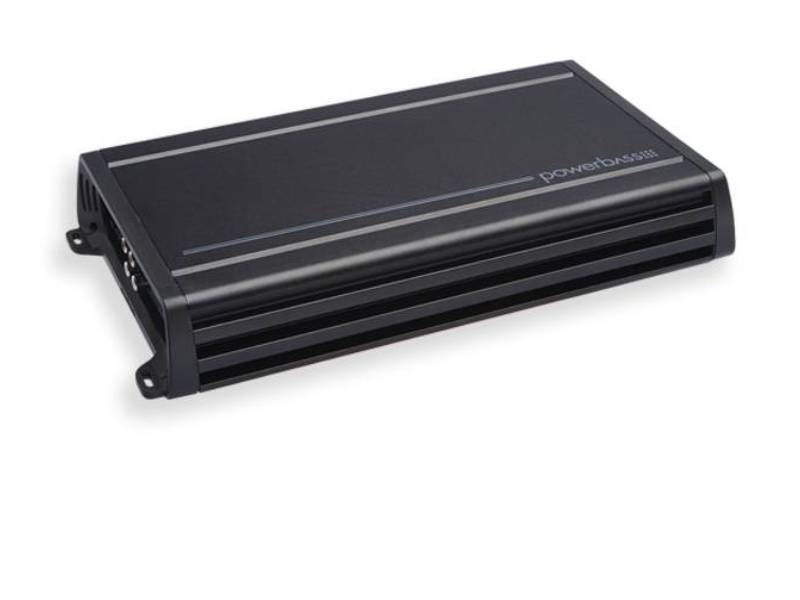

PowerBass 4 Channel Compact Amplifier with 480 Watt High Efficiency - ACS4090

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping *
Our Price $369.99 CAD

Or as low as $64.93/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature
  • 4-Channel 480 Watt High Efficiency Class A/B Design
  • 2-ohm Stable (4-ohm in Bridged Mode)
  • PWM MOSFET Power Supply
  • High Level (Speaker)/Low Level (RCA) Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable High/Low Pass Electronic Crossover
  • Selectable 12dB Bass Boost EQ
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.

ACS-4090 90W RMS X 4 CLASS A/B FULL RANGE COMPACT AMPLIFIER

PowerBass is pleased to introduce our newest addition to our series of Class A/B full range and Class D bass amplifiers. Borrowing from our classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable. To accomplish this we selected SMD parts and engineered a brand new 6 oz/kg high density heat sink engineered for maximum efficiency and cooling.

The result a line-up of two, four and mono channel models that offer great performance and fantastic value. Ultra efficient, the ACS amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. If you are seeking the perfect mix of performance and value look no further.

Specifications
Selectable Subwoofer EQ: N/A
Variable Subsonic Freq: N/A
Inputs: RCA, 2 Pairs Input, 2 Pair Speaker Level Input
Equalization Boost/Cut: N/A
Power Supply: Unregulated PWM
Height: 2.0"
Width: 7.1"
Depth: 12.8"
Switchable Subwoofer EQ: N/A
4-ohm Mono Power: 180 watts x 2
4-ohm Power: 45 watts x 4
1-ohm Mono Power: N/A
2-ohm Power: 90 watts x 4
Subwoofer EQ Frequency: N/A
Variable Subwoofer EQ: N/A
Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz
High-Pass Crossover Freq: Variable 50 Hz - 1 kHz
Peak Power: 720 watts
Crossover Slope: 12 dB
Dimensions (in Inches): 12.8" x 7.1" x 2.0"
Input Sensitivity: 0.25 V - 6.0 V
S/N Ratio: >100 dB
Total Harmonic Distortion: 0.3% @ Rated Power
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 45 watts x 4
Output Power (14.4 V) @ 2 ohm: 90 watts x 4
Output Power (14.4 V) @ 1 ohm: N/A
Channels (mono): 4
Frequency Response: 10 Hz - 50 kHz
