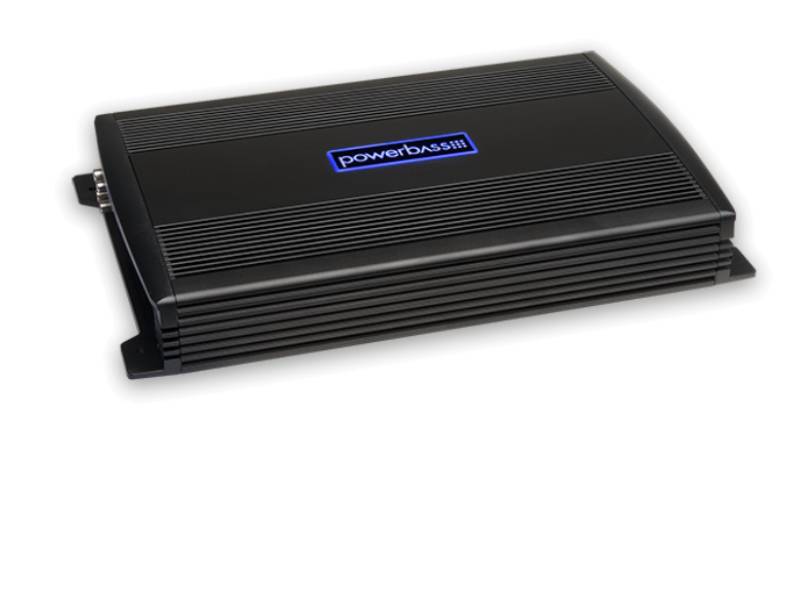

PowerBass Class-D 1 Channel Amplifier with 1,000 Watt High Efficiency - ASA310001D

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping *
Our Price $829.99 CAD

Or as low as $145.65/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

  • 1,000 Watt High Efficiency Class D Design
  • 1-OHM Stable Mono Block Amplifier
  • Double Sided Circuit Board Construction
  • PWM MOSFET Power Supply
  • Low Level RCA Input/Low Level RCA Pass Through Output
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Internal Thermal Cooling Fan
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Strapable Dual Amp Power Doubling Circuit (Amp-to-Amp Bridged at 2 ohm minimum)
  • Switchable Logo Back Lighting

ASA3-1000.1D 1,000W RMS @ 1Ω MONO BLOCK CLASS-D AMPLIFIER

To give your subwoofers some serious power at an affordable price, we offer the ASA3 range in super efficient Class D power. This line offers amplifiers that can provide up to 1,500 watts to a single woofer (if it can take it).

Our ASA3 Class D amplifiers are always 1-ohm stable, and still come complete with all our sought after features like subsonic filters to keep ultra low frequencies from zapping power from frequencies that you do not want to reproduce and protection circuitry that will keep your amplifier from blowing up during duress.

Our Bass EQ control also gives you the ability to increase your subwoofers output by up to 18dB at the earth shaking frequency of 45 Hz to give your competition the knockout punch.

To finish these amps off, we include a remote secondary level control to give you the ultimate in subwoofer volume control from the cockpit of of your vehicle.

Specifications
Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
Variable Subsonic Freq: 15 Hz - 50 Hz
Inputs: RCA Input/RCA Pass-Through Output
Equalization Boost/Cut: 0 - 18 dB
Subwoofer Frequency Range: 20 Hz - 150 Hz
Power Supply: Unregulated PWM
Height: 2.3"
Width: 9.4"
Depth: 15.5"
Switchable Subwoofer EQ: N/A
4-ohm Mono Power: N/A
4-ohm Power: 400 watts x 1
1-ohm Mono Power: 1000 watts x 1
2-ohm Power: 700 watts x 1
Subwoofer EQ Frequency: 45 Hz
Variable Subwoofer EQ: 0 - 18 dB
Low-Pass Crossover Freq: 50 Hz -150 Hz
High-Pass Crossover Freq: n/a
Peak Power: 2000 watts
Crossover Slope: 12 dB
Dimensions (in Inches): 15.5" x 9.4" x 2.3"
Input Sensitivity: 0.25 V - 6.0 V
S/N Ratio: >80 dB
Total Harmonic Distortion: >0.5% at Rated Power
Strapped Output Power @ 2ohms: 2000 watts x 1
Output Power (14.4 V) @ 4 ohm: 400 watts x 1
Output Power (14.4 V) @ 2 ohm: 700 watts x 1
Output Power (14.4 V) @ 1 ohm: 1000 watts x 1
Channels (mono): 1
Frequency Response: 20 Hz - 150 Hz
