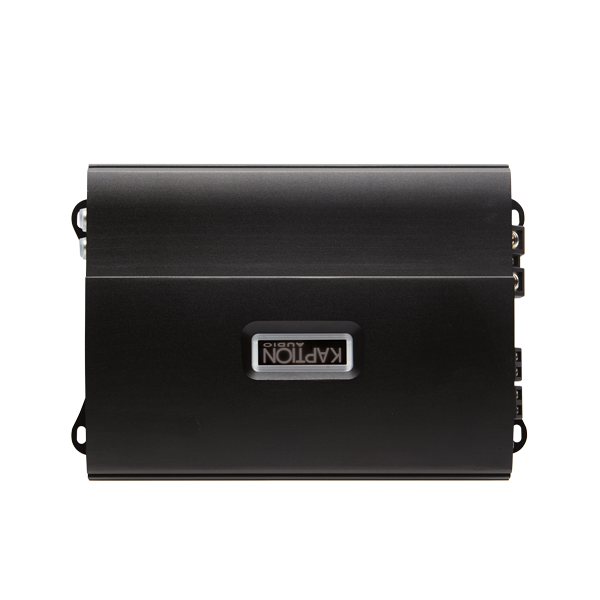

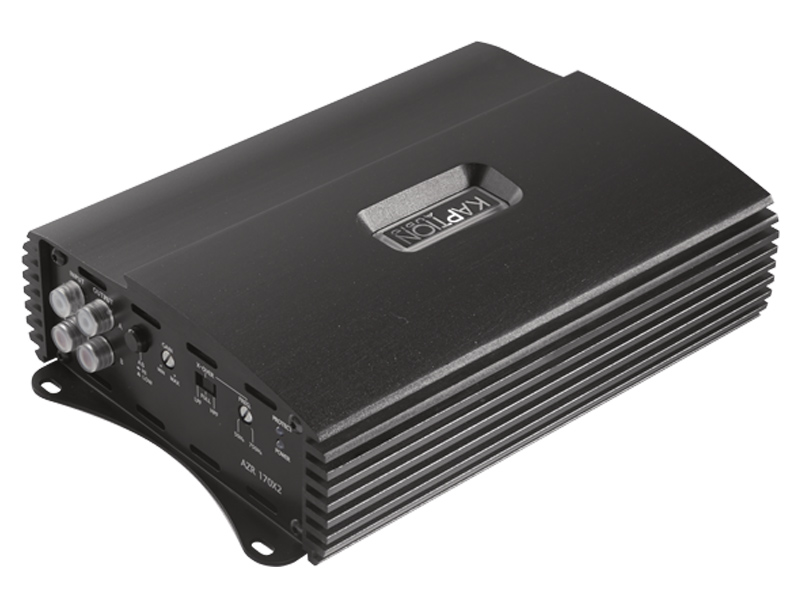

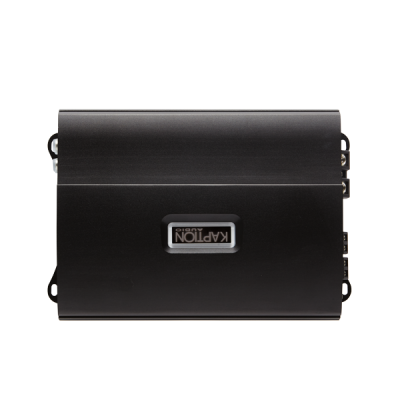

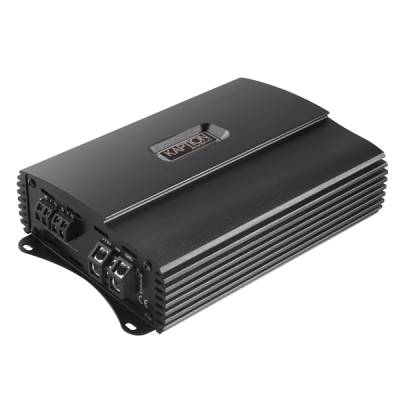

Kaption Audio 2-Channel 170W RMS Amplifier-570-AZR170X2
570-AZR170X2
$259.99
Literature
Kaption Audio 2-Channel 170W RMS Amplifier-570-AZR170X2
170W 2 Channel Amp
| Specification | |
|---|---|
| Width (in) | 9.15 |
| Depth (in) | 6.06 |
| Height (in) | 2.40 |
| Weight (lbs) | 4.5000 |
| Color | Black |
| Ampifiler Channels | 2 |
| Amplifier Class | Class AB |
| RMS Power @ 1 Ohms | N/A |
| RMS Power @ 2 Ohms | 130 Watts X2 |
| RMS Power @ 4 Ohms | 85 Watts X2 |
| Frequency Response | 20 Hz ~ 20 KHz |
| Amplifier Power Supply | MOSFET switching power supply |
| Preamp Output/Passthough | Yes |
| Linkable Amplifier | No |
| Amplifier Low Level Input | 0.2 ~ 5 Volts |
| Amplifier High Level Input | 0.4 ~ 10 Volts |
| S/N Ratio | > 95 dB |
| Amplifier Efficiency (THD+N) | < 0.5% |
| High Pass Filter Range | 50Hz ~ 750 Hz |
| Low Pass Filter Range | N/A |
| Subsonic Filter Range | N/A |
| Bass Boost | N/A |
| Ampifier Opperating Voltage Range | 9 ~ 16 Volts |
| Low Voltage Protection | Yes, protect < 8 Volts |
| Speaker Terminals | Screw Post |
| Wire Guage | 4ga Power & Ground Wire |
| Wired Bass Remote | No |
| High Level Adaptor Included | Yes |
| External Fuse | 40 A |
