PowerBass 1 Channel Compact Amplifier with 500 Watt High Efficiency - ACS5002D
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Price$379.99
Savings$64.00
Our Price $315.99 CAD

Or as low as $55.45/month over 6 months. Apply Now


Availability
Call for availability

Literature
  • 500 Watt High Efficiency Class D Design
  • 2-OHM Stable Mono Block Amplifier
  • MOSFET Power Supply
  • High Level (Speaker)/Low Level (RCA) Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low Pass Electronic Crossover
  • Selectable 12dB Bass Boost EQ
  • Variable Gain Control
  • Remote Level Control Port (for optional PB-GAIN1 controller)
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.

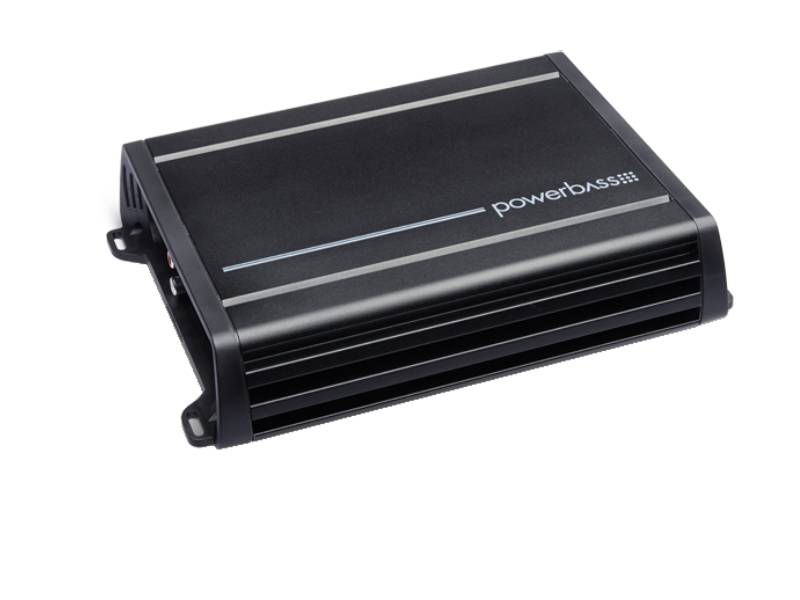

ACS-500.2D 500W RMS @ 2Ω MONOBLOCK CLASS D COMPACT AMPLIFIER

PowerBass is pleased to introduce our newest amplifier to the ACS series of Class D Amplifiers

The ACS-500.2D provides an astounding 500W RMS at 2Ω Mono giving the user a new option for great power at 2Ω instead of the standard 1Ω load that most D Class Subwoofers amplifiers need to provide peak output.

Borrowing from our classic ASA series, these new amplifiers offer the most desired features in the most compact chassis allowable. To accomplish this we selected SMD parts and engineered a brand new 6 oz/kg high density heat sink engineered for maximum efficiency and cooling.

The result a line-up of two, four and mono channel models that offer great performance and fantastic value. Ultra efficient, the ACS amplifiers produce plenty of low distortion high fidelity audio in a footprint small enough to fit nicely in nearly any vehicle. If you are seeking the perfect mix of performance and value look no further.

Specifications
Variable Subsonic Freq: Variable 15 Hz - 50 Hz
Inputs: RCA, 1 Pair Input, 1 Pair Speaker Level Input
Equalization Boost/Cut: Switchable 0/12 dB @ 45Hz
Subwoofer Frequency Range: 10 Hz - 250 Hz
Power Supply: Unregulated PWM
Height: 2.0"
Width: 7.1"
Depth: 9.7"
Switchable Subwoofer EQ: 0 / +12 dB @ 45 Hz
Subwoofer EQ Frequency: 45 Hz
Variable Subwoofer EQ: Switchable 0/+12 dB
Low-Pass Crossover Freq: Variable 30 Hz - 250 Hz
High-Pass Crossover Freq: n/a
Peak Power: 1000 watts
Crossover Slope: 12 dB
Dimensions (in Inches): 9.7" x 7.1" x 2.0"
Input Sensitivity: 0.25 - 6.0 Volts
S/N Ratio: >90 dB
Total Harmonic Distortion: 0.5% at Rated Power
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 300 watt x 1
Output Power (14.4 V) @ 2 ohm: 500 watt x 1
Output Power (14.4 V) @ 1 ohm: N/A
Channels (mono): 1
Frequency Response: 10 Hz - 250 Hz
