PowerBass 2 Channel Class A/B Amplifier - ASA3200.2

Authorized Dealer Price Match Guarantee
Price Match Guarantee
Kawartha TV & Stereo offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
Free Shipping *
Our Price $249.99 CAD

Or as low as $43.87/month over 6 months. Apply Now


Availability
Out of stock online. Call for availability

Literature

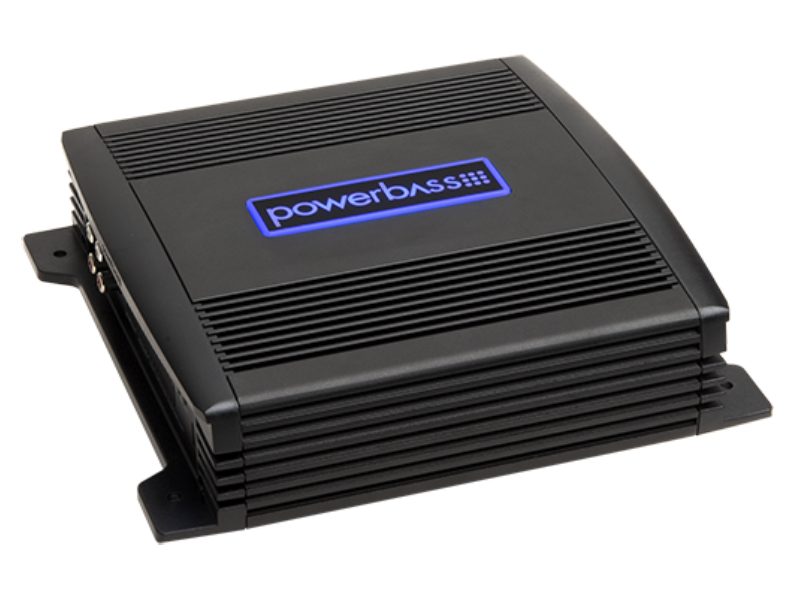

PowerBass ASA3 200.2 2ch Amplifier

  • 2-Channel 200 Watt High Efficiency Class A/B Design
  • 2-ohm Stable (4-ohm in Bridged Mode)
  • PWM MOSFET Power Supply
  • Low Level RCA Input/Low Level RCA Pass Through Output
  • Remote Soft Delay Turn On/Off Circuit
  • Variable High/Low Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ @ 45 Hz
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Wired Secondary Remote Gain Control (Optional PB-GAIN1)
  • Switchable Logo Back Lighting

ASA3-200.2 200W RMS 2-CHANNEL CLASS A/B AMPLIFIER

We faced the daunting task of improving our now legendary ASA-Series amplifiers. Welcome ASA3! Our third generation of ASA-Series amplifiers have a narrower footprint for installation versatility, increased over-voltage protection, broader input sensitivity, new extruded chassis designed for better heat management and a sporty light up badge.

We still managed to keep all the popular features usually found only in other brands' high-end ranges. Feature packed with a wide line-up of 1, 2, 4 and even 5 channel amplifiers, ASA3 Amplifiers meet the needs of any serious audiophile.

The new improved extruded heatsink uses more fins while still maintaining the clean lines that made ASA a classic. These amplifiers always deliver pure, clean power with the soul of rock and roll or whatever your taste is. Variable 12 dB, high/low pass electronic crossover for infinite system applications. A PWM MOSFET power supply for efficient and distortion-free sound reproduction which offers 2-ohm stereo or 4-ohm mono stable capabilities.

User-friendly features like a variable bass boost control with 18 dB of boost at 45 Hz to give you more output from your subwoofers. If you really want serious control of your subwoofer output, an optional remote gain is available for all 2, 4 and 5-channel models.

Specifications
Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
Variable Subsonic Freq: N/A
Inputs: RCA Input/RCA Pass-Through Output
Equalization Boost/Cut: 0 - 18 dB
Subwoofer Frequency Range: 20 Hz - 250 Hz
Power Supply: Unregulated PWM
Height: 2.3"
Width: 8.3"
Depth: 9.0"
4-ohm Mono Power: 200 watts x 1
4-ohm Power: 50 watts x 2
1-ohm Mono Power: N/A
2-ohm Power: 100 watts x 2
Subwoofer EQ Frequency: 45 Hz
Variable Subwoofer EQ: 0 - 18 dB
Low-Pass Crossover Freq: 40 Hz - 250 Hz
High-Pass Crossover Freq: 40 Hz - 250 Hz
Peak Power: 400 watts
Crossover Slope: 12 dB
Dimensions (in Inches): 9.0" x 8.3" x 2.3"
Input Sensitivity: 0.25 V - 6.0 V
S/N Ratio: >94 dB
Total Harmonic Distortion: 0.05% at Rated Power
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 50 watts x 2
Output Power (14.4 V) @ 2 ohm: 100 watts x 2
Output Power (14.4 V) @ 1 ohm: N/A
Channels (mono): 2
Frequency Response: 20 Hz - 22 kHz
